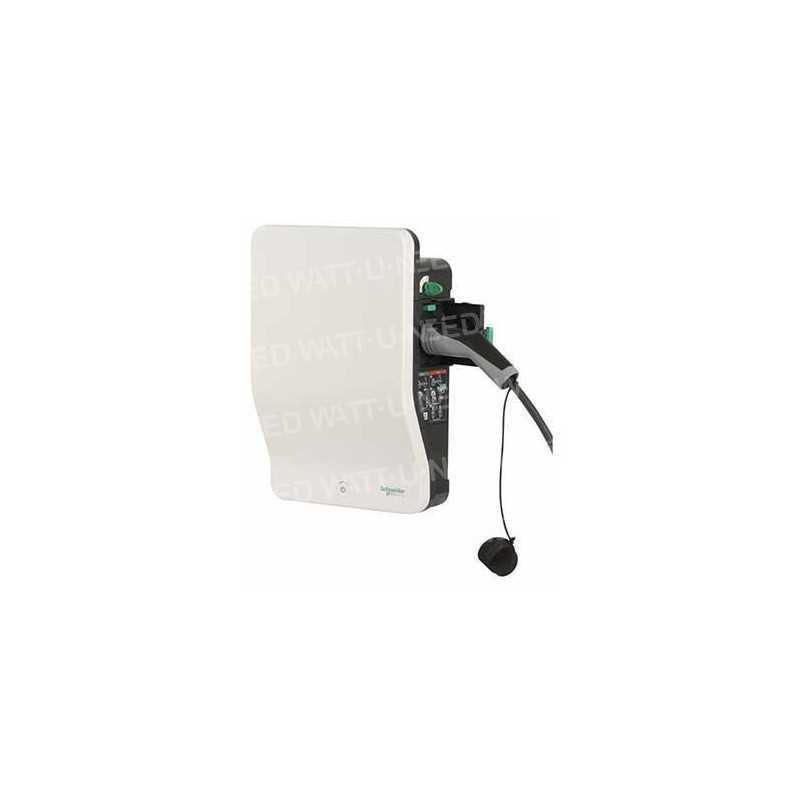

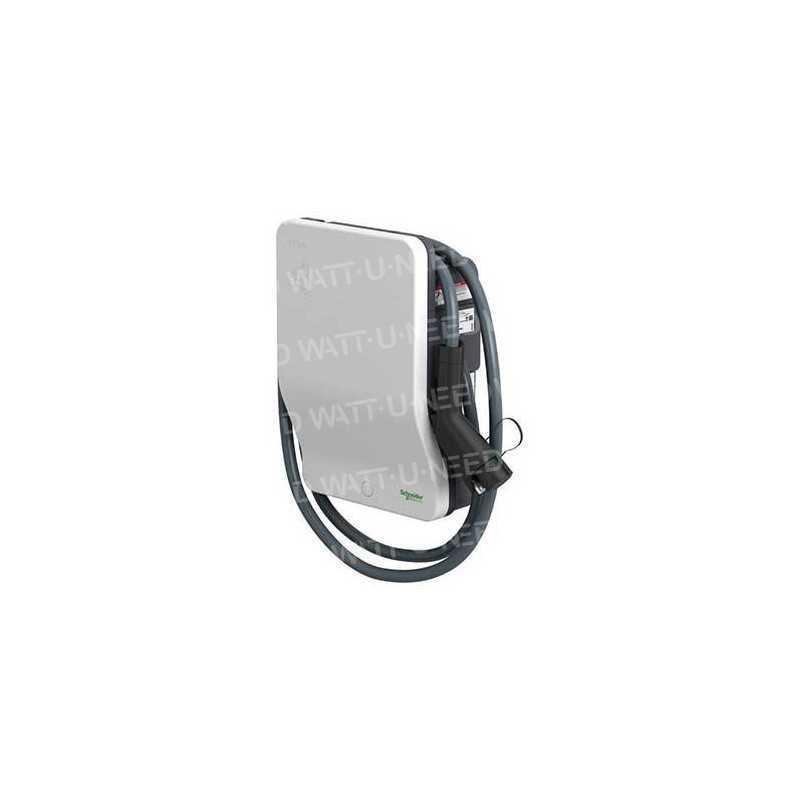

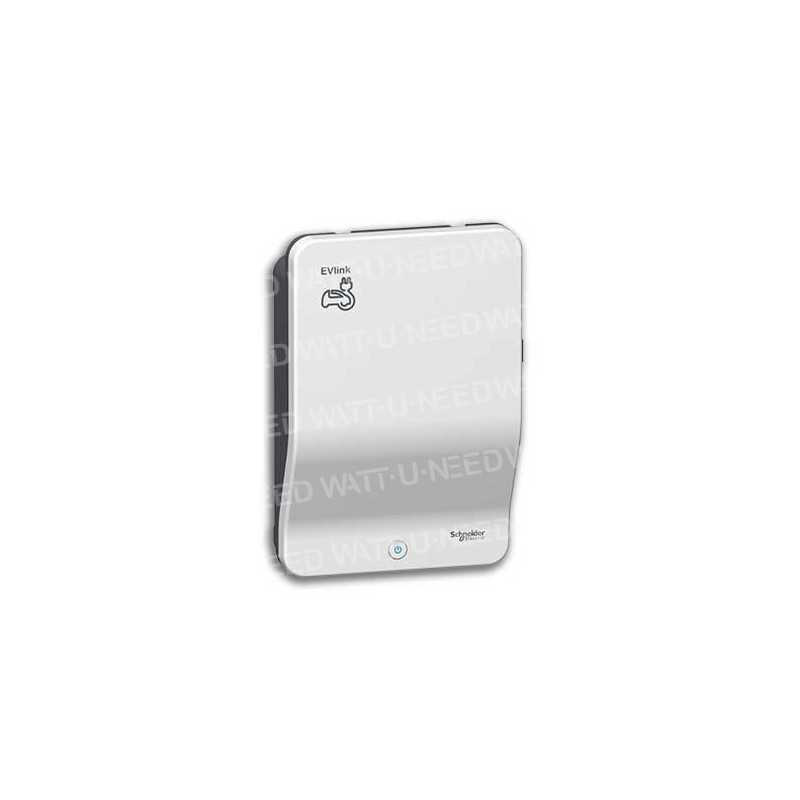

EVlink Wallbox G3 - Wall charging station
€1,213.48
Tax included
EVH2S3P02K
0768563817991
The new EVlink Wallbox charging station for wall mounting indoors or outdoors is ideal for safe and fast charging up to 22kW of any electric vehicle with two-way communication at home, in semi-public car parks and covered garages (apartment buildings, hotels, private companies, administrations etc.).
Choose your model in the options
You have to add a differential to be able to operate your device (available in the accessory proposals).
Electric vehicle charging station
The safe and reliable solution for the rapid charging of electric vehicles
The new EVlink Wallbox charging station for wall mounting indoors or outdoors is ideal for secure and fast charging up to 22kW of any electric vehicle with two-way communication at home, in semi-public car parks and covered garages (apartment buildings, hotels, private companies, governments, etc.).
The charging station is quick to install and easy to use. It can be locked by a key, to avoid any use or control by others.
Delayed or controlled charging at reduced rates or reduced power times during heavy consumption (e.g., when charging multiple vehicles at the same time or using an electric stove at the same time) is possible thanks to the addition of a programmable timer, an external control and/or a load offloading device.
Safety and reliability
Unique concept of remote control ("MNx") of the power breaker for an immediate switch off of the terminal in the event of an accident or malfunction, e.g. the contactor
Flexibility
Modular and flexible concept with protective, measuring and control equipment outside the charging station
Compatible with energy management systems
Full range of products and solutions for all residential and commercial electro-mobility applications
Extensive portfolio of accessories, electrical components, energy management systems, etc.
Easy maintenance
No protective components in the charging station, so the simplicity and comfort of the maintenance work at the distribution panel level inside the building.
Experienced partner
Proven technology: 6 years of experience around the world in reliable charging and in different electric vehicle situations, in cooperation with several car manufacturers
Schneider Electric, a world leader in industrial electrical engineering, electrical power management and distribution with more than 175 years of experience
Global presence for the provision of equipment and exemplary service
Characteristics
| Model | Wallbox G3 with socket | Wallbox G3 with cable |
| Entry | ||
| Number of phases-variants | 1 (1P-N)/3 (3P-N) | 1 (1P-N)/3 (3P-N) |
| Nominal voltage-variants | 230V/400V | 230V/400V |
| Nominal frequency | 50/60Hz | 50/60Hz |
| Maximum-variant input current | 16A/32A | 16A/32A |
| Grounding system | TT,TN(S) or TN (C)(S) | TT,TN(S) or TN (C)(S) |
| Maximum earth resistance. | 100 Ω | 100 Ω |
| Output | ||
| Number of load points | 1 | 1 |
| Power per charge-variant point | 3.7 kW/7.4kW/11kW/22kW | 3.7 kW/7.4kW/11kW/22kW |
| Pirse, type | Yes, Type 2, with automatic locking | Not |
| Take protection valve | Yes, Hermetic | N.a. |
| Cable attached-variants | N.a. | Yes, Type 1/ Type 2 |
| Length of attached cable | N.a. | 4m |
| Cable support | Yes, camera user | Yes, camera case |
| Equipment | ||
| Charge mode according to IEC 61851 | 3 | 3 |
| Mnx breaker control | Yes | Yes |
| Automatic charge control | Yes | Yes |
| Manual load control | Yes | Yes |
| Power-variant reduction | Yes, 16A - 10A/32A - 16A | Yes, 16A - 10A/32A - 16A |
| Delayed charging control/"resume"/PV-ready function | Yes/Yes/Yes | Yes/Yes/Yes |
| LED controls | Load/lock status (1LED, 5 colors) | Load/lock status (1LED, 5 colors) |
| User interface | Start/Stop key, key, plug unlock | Start/Stop key, key |
| Identification | Yes, key to locking functions | Yes, key to locking functions |
| External communication port | - (in preparation) | - (in preparation) |
| General data | ||
| IEC 62262 IP Protection Class | IP54 | IP54 |
| Mechanical protection class according to IEC 62262 | IK10 | IK10 |
| Boist material | Polycarbonate, UV-resistant | Polycarbonate, UV-resistant |
| Consumption on standby | 6W | 6W |
| Consumption when recharging | 9W | 9W |
| Product weight | Env.5.5 kg | About 6.5kg |
| Package weight included | Env.8kg | Env.9kg |
| Product Dimensions (HxLxP) | Env.480x330x170mm | Env.480x330x170mm |
| Package dimensions included (HxBxT) | About 532x398x255 | About 532x398x255 |
| Operating temperature range | -30C to 50C | -30C to 50C |
| Storage temperature range | -40C to 80C | -40C to 80C |
| Allowed relative humidity | 0 to 93% (uncdened) | 0 to 93% (uncdened) |
| Maximum altitude. | 2000m | 2000m |
| Warranty | 2 years old | 2 years old |
| Certifications | ||
| Standards and standards | CE, IEC 61851-1, IEC 61851-22, RoHS, REACH-SVHC, PEP Eco passport, EV Ready 1.4b | |
