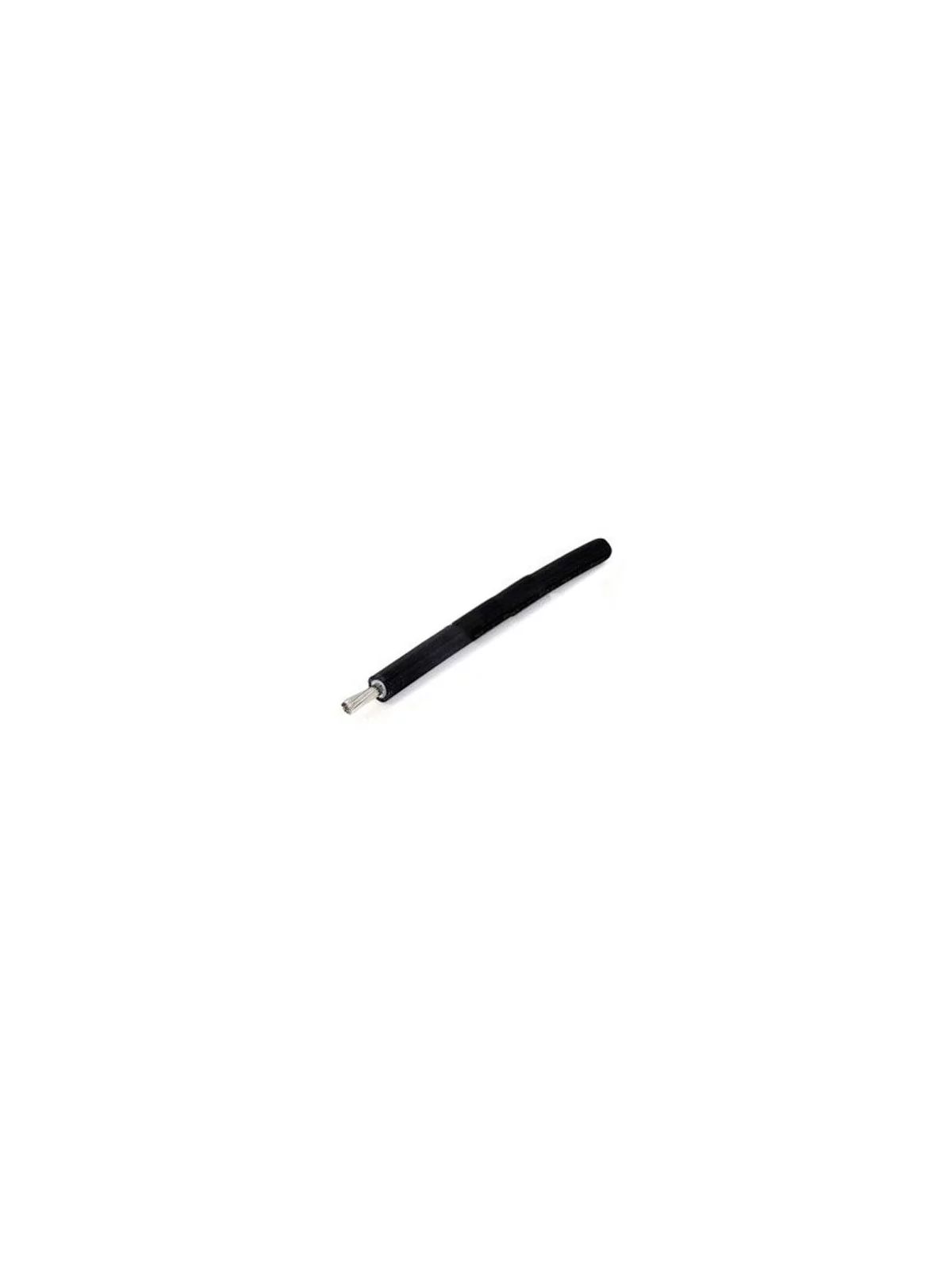

Solar cable 10mm2 (sold by the meter)
$4.1
01910
0712971128194
10 mm² solar cable for photovoltaic system.
Sold by the meter.
Remains : 80m
" Solar cable 10 mm² Black "
10 mm² solar cable for photovoltaic system.
Sold by the meter.
This quality cable is intended for indoor and outdoor photovoltaic applications for flexible or fixed installations, according to the standards 2 Pfg 1169 / 08.2007 and UTE C32-502.
Sold by the meter.
This quality cable is intended for indoor and outdoor photovoltaic applications for flexible or fixed installations, according to the standards 2 Pfg 1169 / 08.2007 and UTE C32-502.
Main Features
1. Conductor :
- Tin plated copper class 5 according to IEC 60228.
2. Insulation :
- Polyolefin
3. Sheath :
- Polyolefin
- Black color
Technical characteristics
1. Construction features :
- Flexibility of the core : Flexible class 5
- Halogen free : IEC 60754-1
2. Electrical characteristics :
- Rated operational voltage Uo / U (Um): 0,6 / 1 kV
3. Usage characteristics :
- Low smoke generation : IEC 61034-2
- Ozone resistance: yes
- Corrosivity of fumes : IEC 60754-2
- Maximum core temperature : 120°C
- Ambient operating temperature, range: -40 ° to 90 ° C
- Weather resistance: excellent
- Flame retardant: IEC 60332-1
