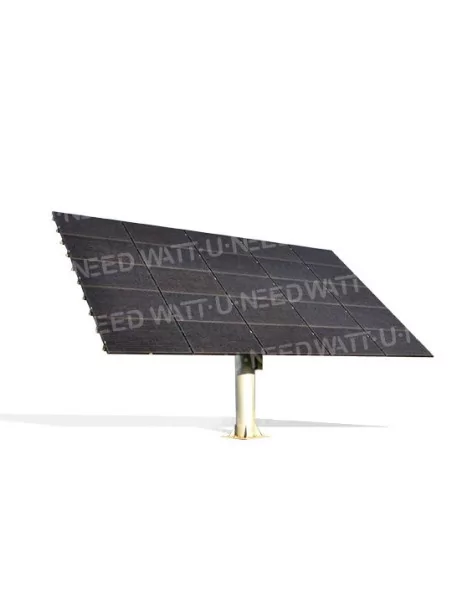

Photovoltaic Tracker 2 axes 25 panels

Wattuneed

11 858,00 € tax incl.

 This solar tracker can support between 16 and 18 panels (depending on panel size) up to 25% more efficiency compared to a south-facing installation

Made on demand. Contact us for any information.

More details

More info

 Photovoltaic Tracker 2 axes 25 panels



STS solar trackers optimize the efficiency of a photovoltaic installation.


More instant production and greater production period thanks to the tracker.



A solar tracker helps to maintain the optimal orientation of the panels in relation to the sun's rays. This optimal orientation maximizes the electricity production of photovoltaic panels. This type of structure increases electricity production compared to fixed panels:



  • 25% increase compared to a facility to the south

  • 40% increase compared to a facility to the east or west


Photovoltaic Tracker 2 axes 25 panels

    Two-axis automated tracker system

    Time and brightness positioning calculator

    Hot galvanized steel structure

    Suitable for all brands of photovoltaic panels

    Robust

    Performance


Benefits



  • Production increased by 25% compared to a south-facing fixed facility.
  • Possible installation in the absence of a poorly oriented roof or roof.
  • Great compactness thanks to the high yield.

The installation includes



  • The structure
  • The detection and orientation system (electronic - engine)

Installing for professionals



  • You communicate the image of a society concerned with ecology and the environment.
  • You're making a name for yourself.
  • You invest in the future with an assured profitability.





Installing for professionals


Features of the foundation



Features of the foundation



 STS 25
Width2.75m
Length2.75m
Depth1m
Volume7,6 m3
Weight17400 Kg

 Structure features

Structure features



The structure has two degrees of freedom: a horizontal rotation to adjust the azimut and a vertical rotation for tilt. The horizontal rotation allows you to follow the movement of the sun throughout the day. The vertical rotation allows the structure to be guided according to the seasonal variation of the sun.





MaterialsSteel/Alu
Surface41 sqm
Number of columns5
Number of lines5
Mast height3m
Height panels5m
Total width8.3m
Total height5.5m
Power
(260Wc panels)
 6500Wc
Annual production 7500 Kwh
Weight1500kg
Wind speed
maximum eligible
120 km/h
Manufacturing100% Belgian


Motorization features

Motorization features



Our solar tracker has an automatic orientation of the panels according to the daily variation of the sun (from east to west) throughout the day. This orientation is done every 10 minutes via an electric motor. The orientation of the structure according to the seasonal variation of the sun (orientation at 73 degrees on the winter solstice up to 27 degrees at the summer solcist) is also automatic. The installed power is flexible according to demand. A standard installation is in the order of 4kWc. The installed surface area of PV panels is then 25.6m2.



Horizontal axis  $220
Vertical axis60 degrees
Running tension24 Volts
Engine power2 X 60W
Consumption of
Operation
200Wh/d
Tracking systemSchedule
light sensor
