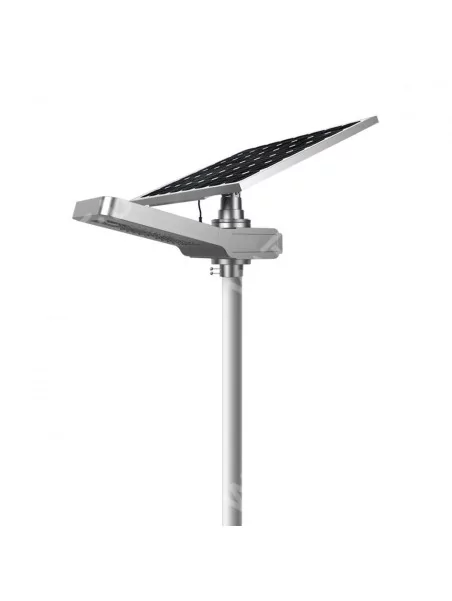

Solar lamp post - LED autonomous WU 30W 18V - Panel 80W

Solar lamp LED 30W - 18 Volt fully autonomous through its Panel 80Wc solar.

The solar panel can be rotated (rotation or front-back tilt) to position the Panel according to the Sun and ensure an optimal recharge of the battery included in the Streetlight. The solar spot is easy to fix and is completely self-contained.



 2rooms in stock





More info

More details

831,40 € tax incl.

Add to cart

By buying this product you can collect up to 83 loyalty points. Your cart will total 83 points that can be converted into a voucher of 24,90 €.


More info



Fully autonomous 18V 30W LED solar Street!



His solar 30 Watt power spot is perfect for lighting your yard, parking, driveway or street lighting without recourse to the public electricity grid.

This solar lamp is fully autonomous 80Wc solar panel with its built-in battery. Practice to inform the non-connected places in the network at lower cost or to save on energy by using solar energy. Ideal to replace your old high consumption spots!

  • Charge (in full sun) time: 7 hours
  • Lighting time: 2-3 days
  • Recommended installation height: 5-10 meters
  • Recommended between streetlights distance: 10-30 meters

Beware, the mast is not included in this product! For any request, please contact to info@wattuneed.com






lampadaire avec panneau solaire inclinable et rotatif







Panel photovoltaic orientable 80Wc



A solar panel is integrated on top of the lamppost. The particularity of this Panel is that it is fully adjustable (rotation 360 ° and tilt back and forth), to ensure a correct exposure of the entire surface of the Panel regardless of its locationUnlike some Panel lights fixed.

  • Monocrystalline cells
  • Power: 80 Wc
  • Easy and quick to install
  • Aluminum frame
  • VMP: 18, 0V
  • IMP: 2.78 A
  • VOC: 21, 6V
  • ISC: 3.02 A
  • Size: 765 x 666 x 30 mm






Eclairage de rue LED 100W





Solar spot with a power of 30W



Thanks to the power of 30W LED lamp, it is possible to illuminate parking lots, driveways, streets...

The distance recommended between streetlights is between 10 and 30 meters.



Features:

  • Use: street light
  • Color temperature: 3000-6500 K
  • Light LFlux: 3600-4200 Lm
  • LED quantity: 40pcs
  • LED chip: Bridgelux
  • CIRB: maw 70Ra
  • Control voltage: 5V










Eclairage de rue LED 100W



Solar 340 Wh Lithium battery



The lamp has a Lithium battery high capacity for storage of the energy accumulated during the day.

Life span: 5-8 years (≥ 2000 cycles of charge and discharge)

High heat resistance
















Dimensions of the solar spot and the photovoltaic panel
















Description

TypeWU 80
Lamp power30W
Solar Panel80W
18V
Lithium battery340WH
12.8V
LiFePo
LED quantity60PCs
Luminous flux3600-4200LM
Time of loading (in the Sun)7HRS
LED-markBridgelux
Color temperature3000-6500K
DR.≥70RA
Light control voltage5V
Light distributionWing beat with polarized light
Lighting time2-3 days
Distance from the sensor5-10m
Time of the sensor20-30s
Operating temperature-20 to + 60° C
Life≥50, 000HRS
MaterialAluminum under pressure of high-quality cast aluminum alloy
The pole diameter76mm
Mounting height5-10m
Installation spacing10-30m



Example usage of the solar lamp 30W



Dimensions schéma Eclairage de rue LED 100W



Specifications

Type of needSelf-Use Lighting Kits
Wind TurbinWithout
Battery storageWith storage
Number of panels1 panel
Type de LEDKit éclairage autonome, Spot LED
Voltage12V
Lighting power30W
TechnologyLithium
Panel typeRigids
CellsMonocrystalline
Max. Power - Wp80 Wc
Open circuit voltage (Voc)21.6 V
Short circuit current (Isc)3.02 A
Max. power current (Imp)2.78 A
Max. power voltage18 V
BatteryKit with battery
