    Anti-cut kit WKS Evo Circle 5.6 kVA 48V - UPS LITHIUM

    $2,225.6
    KIT-anti-coupure-Circle-Pylontech
    0712971127784

    Important notice for our customers in Belgium:


    As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €94.41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

    Here's the reference list and the corresponding membership fee!


    When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

    100% secure payments

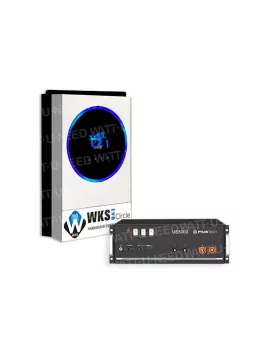

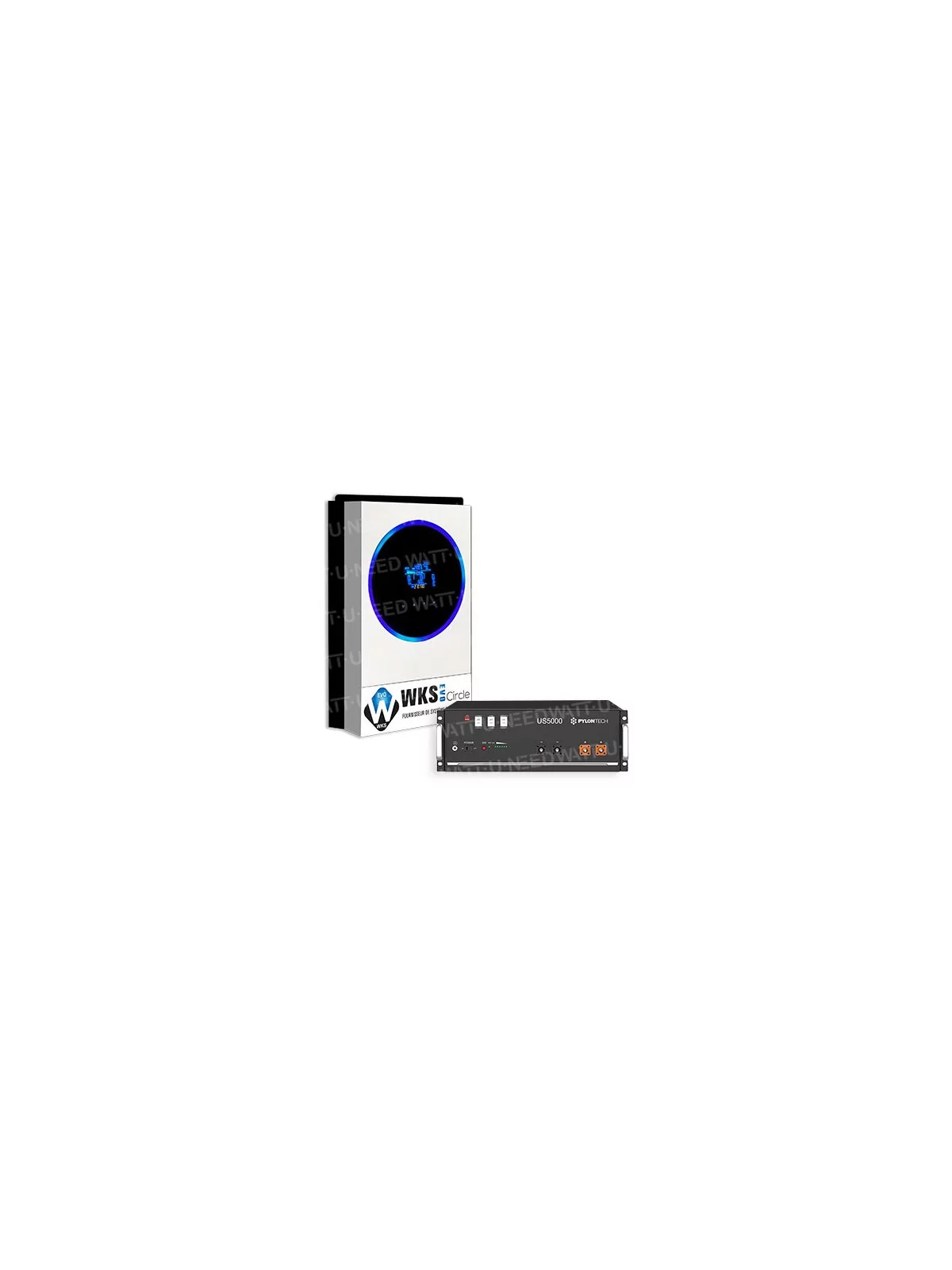

    This kit includes

    • 1XWKS Evo Circle 5.6 kVA 48V hybrid inverter
    • 1XLithium battery Pylontech US5000 +100 - 4.8kWh
    • 1XPylontech battery connection cable

    Select products from the sections below
    Choix de l'onduleur
    info
    WKS Evo Circle 5kVA 48V hybrid inverter
    WKS Evo Circle 5.6 kVA 48V hybrid inverter
    Price per unit
    $940.8  (Tax incl.)
    Choix des batteries
    info
    Lithium battery Pylontech US5000 +100 - 4.8kWh
    Lithium battery Pylontech US5000 +100 - 4.8kWh
    Price per unit
    $1,261.7  (Tax incl.)
    Accessoires batteries
    info
    Pylontech battery connection cable
    Pylontech battery connection cable
    Price per unit
    $23.1  (Tax incl.)
    Panneaux
    info
    No products selected
    Price per unit
    $0.0  (Tax incl.)
    Cotisation nvironnementale obbtligatoire
    info
    No products selected
    Price per unit
    $0.0  (Tax incl.)

    Anti-cut kit WKS Evo Circle...

    $2,225.6

    Protégez votre habitation des coupures de courant

    Don't be afraid of power cuts anymore!


    This kit takes over immediately in the event of a power cut to ensure the proper functioning of your electrical installation.
    Much more economical than a generator set, the anti-cut kit remains the ideal solution against load shedding!

    When the grid is running, the inverter keeps the battery park charging. In the event of an outage, the system automatically switches your installation to the batteries.

    Then when the network returns, the converter detects it and switches back to it.
    The batteries being partially emptied are then recharged automatically, being able to again
    deal with possible cuts ...


    Onduleur hybride circle 5,6kVA

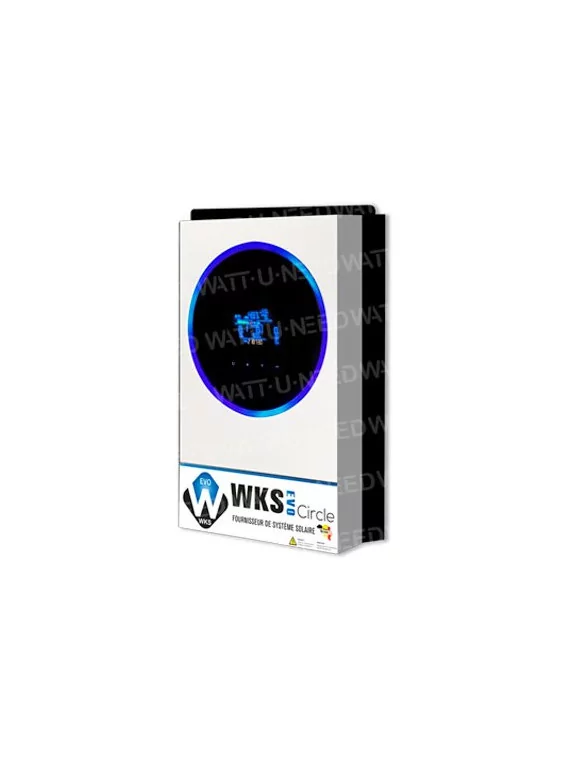

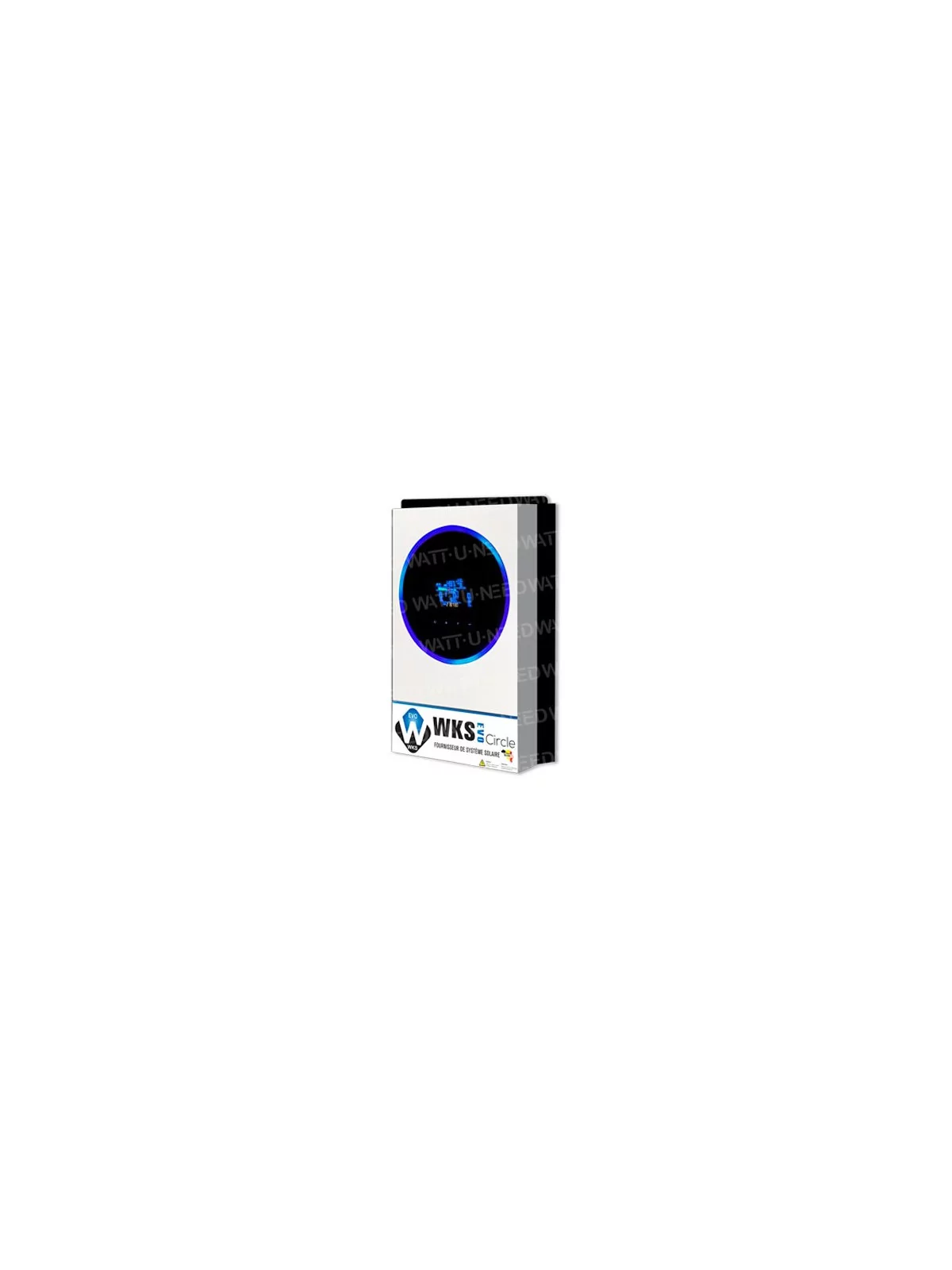

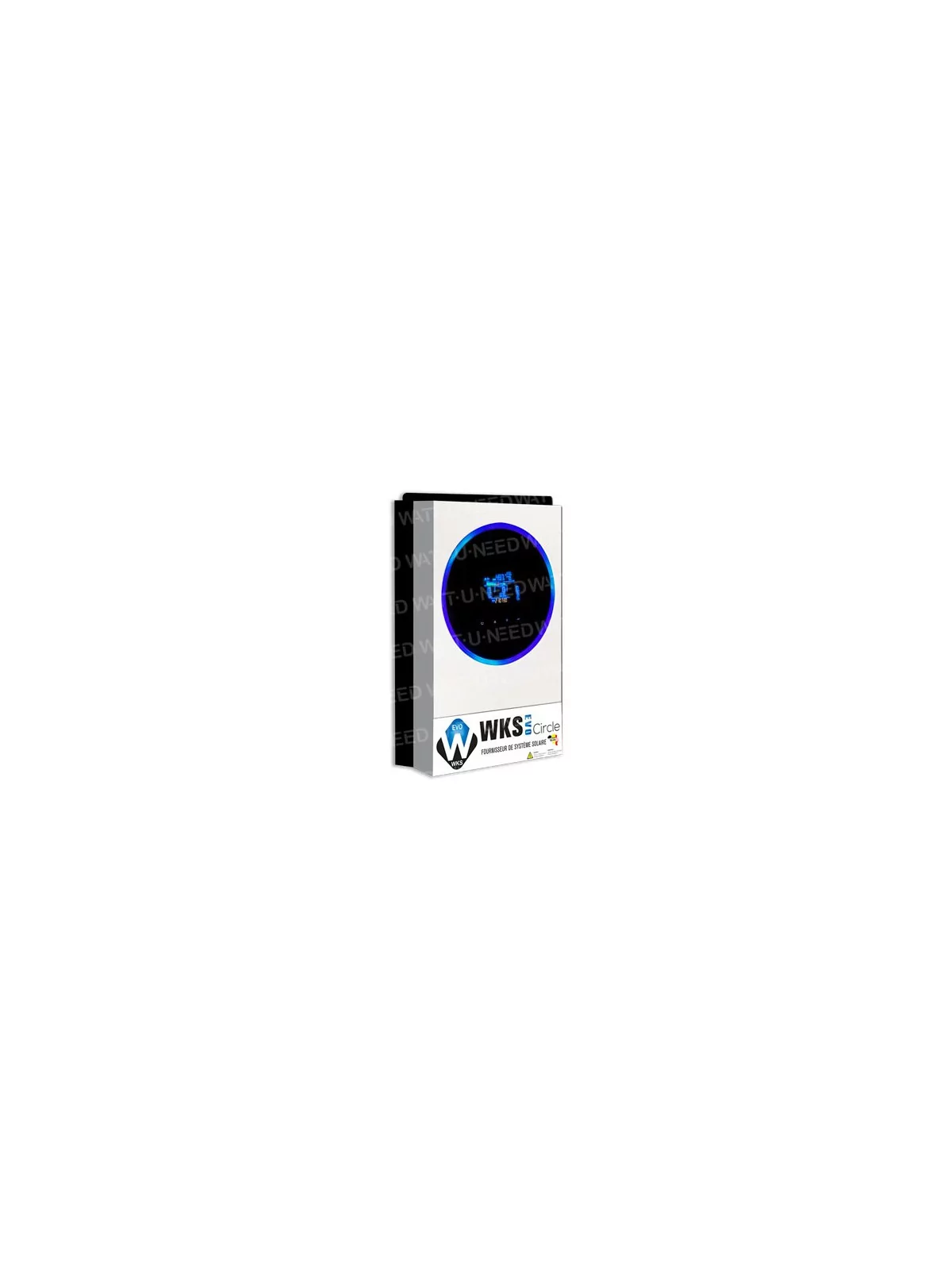

    Hybrid inverter WKS Evo Circle 5.6 kVA 48V



    The WKS EVO Circle is equipped with an MPPT solar charge controller that maximizes and regulates the DC power of the solar panel to charge your battery park.
    Transformerless design enables reliable power conversion in a compact form factor. The new generation of WKS has a built-in Wi-Fi function, mobile monitoring can be done through mobile apps. The data can be viewed and saved in the inverter, which is convenient for tracking the operating status of the inverter. It also supports USB On-The Go feature for easy rewriting of internal settings, data downloads, and software updates.



    Characteristics



    Model
    Rated power5600VA/5600W
    Entrance
    AC input voltage170-280 VAC (for personal computers)
    Selectable voltage range90-280 VAC (for household appliances)
    Frequency range50Hz/60Hz (automatic detection)
    Exit
    AC voltage regulation (Batt. mode)230 VAC +/- 5
    Overload capacity5s@>/=150% charge;10s@110%~150% charge; 100ms @ >/=200% charge
    Yield (peak)93%
    Transfer time10 ms (for personal computers); 20 ms (for household appliances)
    WaveformPure sine wave
    AC output voltage24.3A
    Battery
    Battery voltage48 VDC
    Floating charging voltage54 VDC
    Overload protection66 VDC
    Solar charger and AC charger
    Type of solar chargerMPPT
    Maximum power of the PV generator6000W
    MPPT range at operating voltage120~430VDC
    Maximum voltage of the open circuit of the PV450VDC
    Maximum solar charging current120A
    Maximum AC charging current120A
    Physics
    Dimension, D x W x H (mm)140x295x468
    Net weight (kgs)11.0 12.0
    Communication interfaceUSB/RS232/RS485/Wifi/Dry Contact
    Usage environment
    Humidity5% to 95%a Relative humidity (non-condensing)
    Operating temperatureFrom -10°C to 50°C
    Storage temperatureFrom -15°C to 60°C

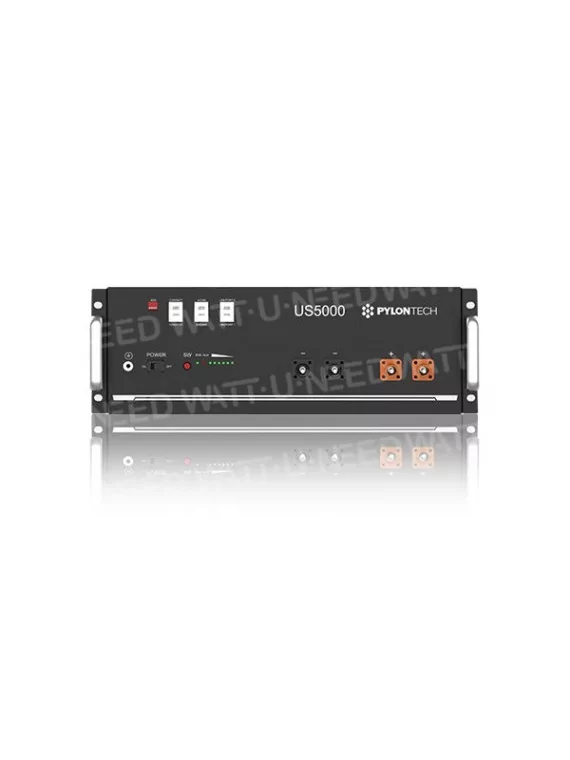

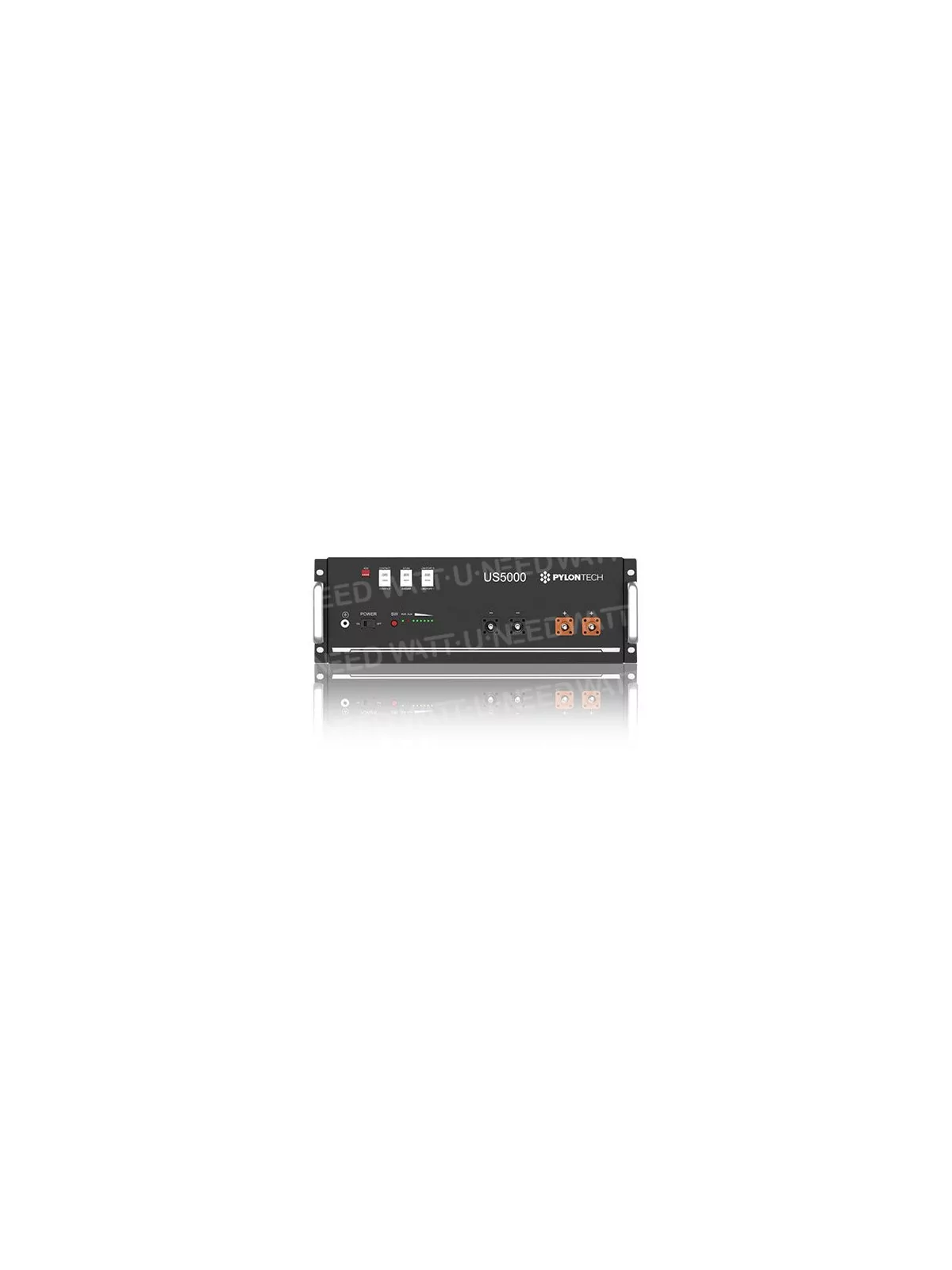

    Batterie Lithium Pylontech US5000 +100 - 4.8kWhPylontech US5000 Lithium Battery +100 - 4.8kWh



    • A compact and trendy design that fits perfectly into your home environment.
    • Provides up to 4.8KW
    • Modular design makes it easy to increase capacity.
    • Compatible with most hybrid inverters.
    • Security Cert.TüV CE UL UN38.3



    Characteristics



    Rated voltage48Vdc
    Rated capacity100 Ah
    Battery capacity4800 Wh
    Dod95,00%
    Dimensions (LxWxH)442x410x161 mm
    Weight39.7 kg
    Charging/discharging80 Ah (Recommended)
    120@ 15min (Max.)
    Current (A)200@15sec (peak)
    Communication portRS485, CAN
    SIngle string quantity16pcs
    Operating temperature0~50°C
    Shelf temperature-20~60°C
    Cycle life>6000, 25°C
    Authentication levelUL1973/UL1642/UL9540A/VDE2510-50/IEC63056/IEC62619/IEC62040/IEC62477-1/IEC61000-6-2/UN38.3
    KIT-anti-coupure-Circle-Pylontech
    1000 Items

    Data sheet

    Inverter power
    5000VA
    Kit output voltage
    48V
    Type of need
    Uninterruptible power supply
    Battery storage
    With storage
    Wind turbine
    Without
    Mains re-injection
    off-grid

    Specific References

    UPC
    712971127784
    EAN13
    0712971127784
    New

    Download

    FicheT WKS EVO Circle 5/48V-FR

    Download (375.05KB)

    DataSh US3000C-EN

    Download (1.05MB)

    Manual US3000C-EN

    Download (2.18MB)

    FicheT US3000C-FR

    Download (1.11MB)

    Man US3000C-FR

    Download (2.52MB)

    Parametrage Ond Circle - FR

    Download (4.85MB)
