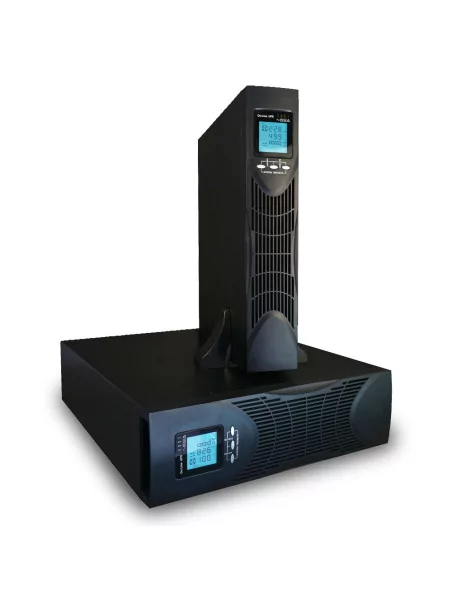

UPS Vision Spirit XL inverter 1 and 2Kva

Vision Spirit XL inverter 1Kva(24VDC) and 2Kva(48VDC)

logo ups vision

More info

More details

658,00 €

Options

Add to cart

By buying this product you can collect up to 110 loyalty points. Your cart will total 110 points that can be converted into a voucher of 33,00 €.


More info

" 1000 and 2000 VA "



On line type (also called double conversion )

schema onduleur onlineThis UPS operates a double conversion

- In normal mode, the UPS inverter is placed between the network and the load. The power supplied to the consumers goes constantly through the UPS which carries a double conversion AC / DC and DC / AC .

- In standalone mode , the battery supplies power to the inverter and the inverter supplies power to the load. This configuration is the most expensive but also the most comprehensive in terms of the protection of the load. The inverter converts continuously the voltage of the grid, allowing precise control of the voltage and frequency of the output . Given the isolation of consumers over the electric grid, power system disturbances are eliminated at the UPS output



Furthermore, the transition from normal mode to autonomous mode is instant without any swapping delay . The UPS directs the load to the network using a static bypass contactor in caseof a failure or battery discharge. The UPS is synchronized with the grid, the transfer is carried out without break. This UPS is the best protection against interference and micro-breaks for sensitive equipment.









Description

  • Online, double conversion technology (VFI)
    onduleur spirit XL
  • Digital signal processor (DSP) technology
  • Internal static and manual bypass
  • Input power factor up to 0,99
  • Wide input voltage range
  • Rack / tower (XL design)
  • Battery (DC) cold start
  • Site wiring fault indication
  • Self testing when UPS startup

Protections

  • RJ45 / 11 network protection
  • Intelligent managment through RS232 & USB


Warranty

  • 2 years (electronics)

















Specifications

Model1000VA2000VA
Power800W1600W
Battery
Voltage24VDC - 48VDC
Output
Voltage200 / 208 / 220 / 230 / 240VAC
Waveform Pure sine wave
Harmonic distortion (THD) <3% at 100% linear load
Frequency 50/60 Hz +- 0,02Hz
Voltage stabilization +- 2%
Crest factor 3:1
Efficiency 88-90% (utility mode) / 85-87% (battery mode)
Protection
RJ11/45 protectionyes
Input / Output protection against Overload - Temperature - Short circuit
Alarms - Informations
Audible alarm Beeping sound for battery backup, battery low, overload status, fault status
LED alarm Mains, inverter, bypass, fault, battery level
LCD display Input and output voltage, load, battery voltage, error codes
Bypass
TypeInternal static automatic and manual bypass / External bypass optional
Standards
IndustryCE-certificate
Environment
Temperature / altitude / Humidity 0-40°C / less than 1500m / 0-95% non-condensing
Audible noise at 1m < 50dBA
Interface
StandardRS232 / USB
Optional SNMP card / Dry contact (relay) card
Dimensions
Weight 7kg12kg
WxDxH 440x380x88440x520x88

Specifications

Power1000 VA et 2000 VA
Monophasé / TriphaséMonophasé
