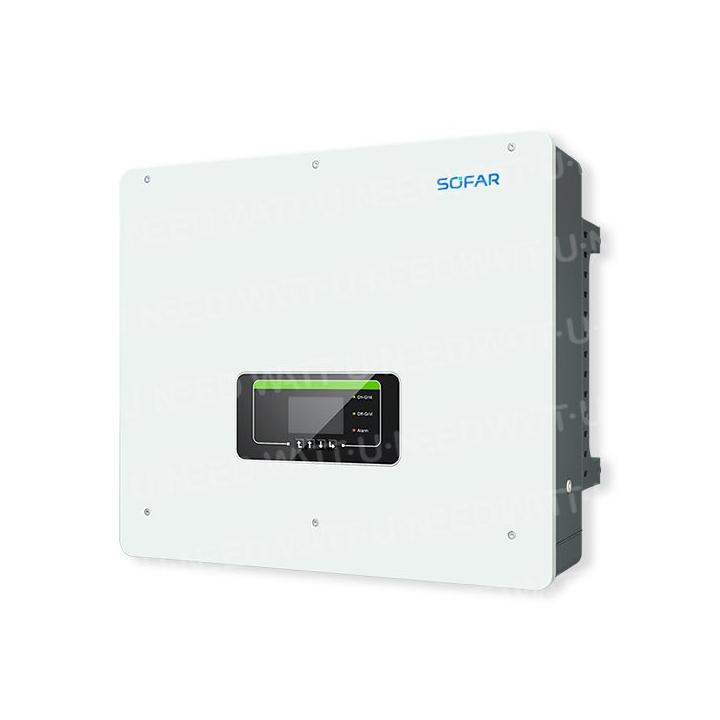

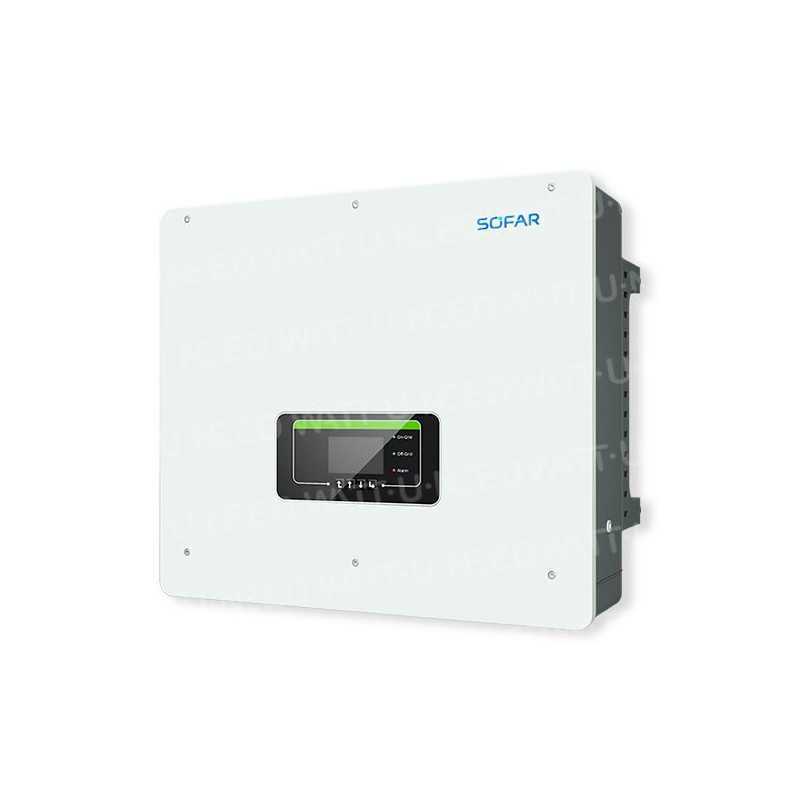

Sofar Solar Tri 20 kW hybride omvormer – HYD20KTL-3PH
€ 2.446,10
Belasting inbegrepen
HYD20KTL-3PH
0768563820151
De hybride omvormer SOFAR SOLAR hyd20ktl-3ph is ontworpen voor driefasige PV-installaties met een hoog verbruik om ter plaatse zonne-energie te produceren, op te slaan en te verbruiken. Met zijn nooduitgang EPS en geïntegreerde beheerfuncties helpt hij de stroomvoorziening te beveiligen en het eigen verbruik te optimaliseren.
- Technische kenmerken: vermogen 20 kVA (20.000 W), 2 MPPT, maximaal rendement 98,2% (euro 97,7%), netuitgang 230/400 Vac, EPS-schakeltijd < 10 ms, beschermingsgraad IP65.
- Compatibiliteit: lithium-ion- en loodzuurbatterijen met hoge spanning (180 tot 800 V) met BMS via CAN (RS485), mogelijkheid tot parallel gebruik van maximaal 10 eenheden, supervisie via wifi (ethernet/4G optioneel, afhankelijk van de configuratie).
- Voordeel: het vergroot de energieonafhankelijkheid door voorrang te geven aan zonne-energie, het overschot op te slaan en de essentiële belastingen te handhaven via de EPS-noodstroomvoorziening.
Geen artikelen op voorraad
✅
Compatibilités vérifiées
▼
Compatible avec :
25A AC driefase overspanningsbeveiligingskast
€ 694,14
Voir le produit →
AC Legrand driefasige beveiligingskast 16A tot...
€ 174,79
Voir le produit →
Differential switch type A 2P 63A 300ma
€ 139,90
Voir le produit →
LiFePO4 lithiumbatterij 5,12 kWh - Sofar Solar...
€ 1.378,00
Voir le produit →
Lithium-ionbatterij LiFePO4 4,8 kWh - Pylontech...
€ 999,99
Voir le produit →
Lithiumbatterij LiFePO4 2,4 kWh - Pylontech...
€ 739,00
Voir le produit →
Affichage de 6 sur 14 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
Sofar HYD20KTL-3PH : De benchmark voor driefasige omvormers met hoge prestaties
Three-phase hybrid inverter - the perfect solution to enable energy storage in your PV installation with on- and off-grid functions.
The HYD 15K... 20KTL-3PH is a multi-talented three-phase hybrid inverter for solar and storage applications. During network outages, it can provide up to 20 kW of unbalanced three-phase backup power (EPS) in 10ms thanks to its built-in EPS port.
Two MPPTs and two independent battery ports (on 15K to 20KTL models) allow multiple battery capacity configurations in 2.5kWh steps.
Up to 10 UPS can be connected in parallel to the EPS and AC port, making this device ideal for microgrid installations (on- or off-grid).
The integrated energy management system has several user-friendly modes, optimizing the user experience, including an automatic self-use mode. The user can also set different time and/or date ranges or rules for the day of the week.
All modes can be easily configured on the large LCD screen. This inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick comes with the inverter, to easily connect it to the Sofar monitoring portal.
INTEGRATED INVERTER WITH THREE-PHASE ENERGY STORAGE
- Different operating modes for optimal performance
- The off-grid output can be connected to an unbalanced load, a separate three-phase output is supported.
- Up to 2 MPPT, allowing flexible configuration.
- Multiple parallel systems, more flexible system solutions
- Up to two battery inputs
- Fully digital operation, allowing for greater control accuracy
Characteristics
| Battery input data | |
| Battery type | Lithium-ion, Lead-acid |
| Number of battery inputs | 2 |
| Battery voltage range | 180 – 800 V |
| Nominal voltage | 600 V |
| Battery voltage range at full charge | 400 – 800 V |
| Rated charge/discharge power | 20000 W (10000 / 10000) |
| Charge/Discharge Current | 50 A (25 / 25) |
| Peak charge/discharge current, duration | 70 A (35/35), 60s |
| Mode de communication BMS | CAN (RS485) |
| AC output data (over network) | |
| AC power rating | 20000 W |
| AC power output to power grid | 22000 VA |
| Max power AC power from the power grid | 40000 VA |
| Nominal output current | 29 A |
| Nominal output current AC current output to the power grid | 32 A |
| Max current Alternating current from the power grid | 58 A |
| Rated network voltage | 3 / N / PE, 230 / 400 Vac |
| Network voltage range | 184 Vac – 276 Vac |
| Nominal network frequency | 50 / 60 Hz |
| Network frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz |
| Output power factor | 1 default (+/- 0.8 adjustable) |
| Output THDi (at rated output) | <3% |
| AC Output Data (EPS) | |
| Rated output power | 20000 W |
| Power Output | 22000 VA |
| Peak output power, duration | 22000 A, 60s |
| Output current | 32 A |
| Peak output current, duration | 32 A, 60s |
| Nominal output voltage | 3 / N / PE, 230 / 400 Vac |
| Nominal output frequency | 50 / 60 Hz |
| THDv | <3% |
| Switching time | < 10 ms |
| Yield | |
| Euro yield | 97.7 % |
| Efficiency | 98.2 % |
| Battery charging and discharging efficiency | 97.8 % |
| Protection | |
| DC switch | Yes |
| PV reverse polarity protection | Yes |
| Output overcurrent protection | Yes |
| Output overvoltage protection | Yes |
| Anti-islanding protection | Yes |
| Residual current detection | Yes |
| Insulation resistance detection | Yes |
| SPD | PV: Standard Type II, AC: Standard Type III |
| Battery reversal protection | Yes |
| Characteristics | |
| DC terminal | Type MC4 |
| Network AC terminal | 5P connector |
| Emergency AC terminal | 5P connector |
| Display | LCD & Bluetooth + APP |
| Communication | RS485, CAN2.0, WI-Fi, Optional: Ethernet, 4G |
| Parallel operation | Yes |
| General data | |
| Dimensions (W * H * D) | 571.4 x 515 x 264.1 mm |
| Weight | 37 kg |
| UPS topology | Without transformer |
| Standby power | < 15 W |
| Operating temperature range | -30°C -+ 60°C |
| Relative humidity | 0 – 100 % |
| Installation method | Wall |
| Maximum number of parallel units | 10 |
| Operating altitude | < 4000 m |
| Cooling | Forced air flow |
| Degree of protection | IP65 |
| Standard | |
| EMC | EN 61000-6-1, EN61000-6-3 |
| Safety standards | IEC 62109-1, IEC 62109-2, IEC 62040-1 |
| Network Standards | VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, IEC 0-16 / IEC 0-21, EN 50549, G98 / G99, UTE C15-712-1 |
HYD20KTL-3PH
Gegevensblad
- Omvormervermogen in VA
- 20000 VA
- MPPT/PWM
- MPPT
- Fase
- Triphasé
- Aantal MPPT
- 2 MPPT
- Breedte
- 515 mm
- Hoogte
- 571,4 mm
- Dikte
- 264.1 mm
- Omvormertype
- Hybride
- Gewicht
- 37 kg
