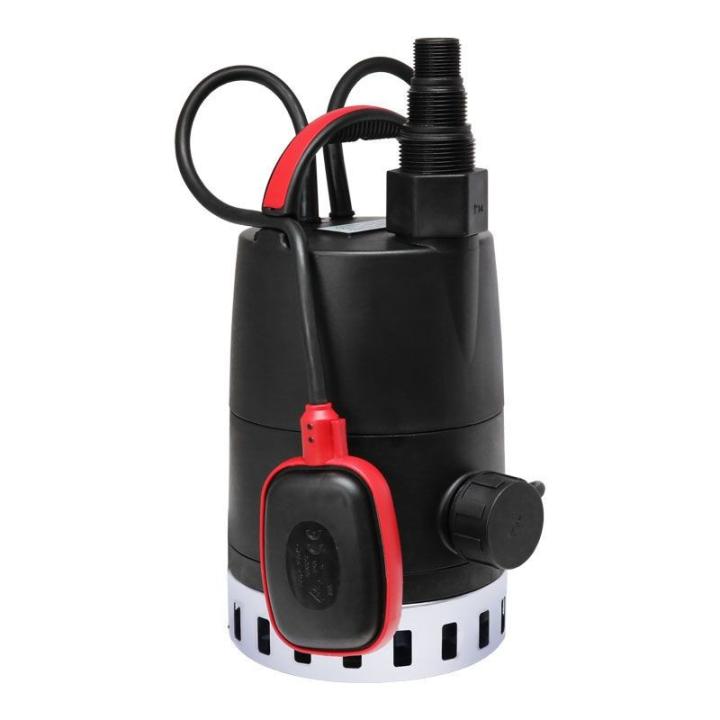

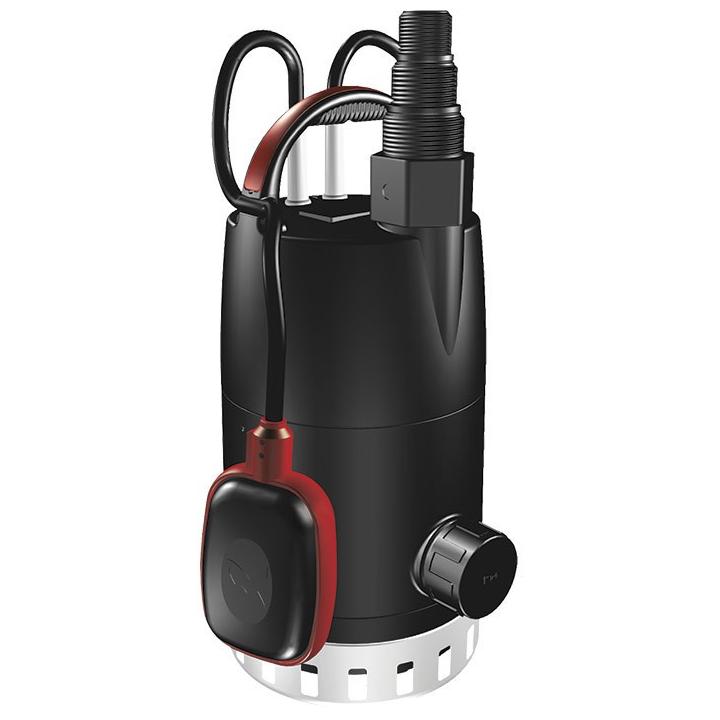

UNILIFT CC are submersible pumps designed for the pumping of clear, non-aggressive water and slightly loaded (gray) wastewater.

Logo Grundfos

Commentaar (0)

Geen klantenbeoordelingen op het moment.

UNILIFT CC are submersible pumps designed for the pumping of clear, non-aggressive water and slightly loaded (gray) wastewater. The Unilift CC can ensure a low suction up to 3 mm and can be used both in fixed and mobile pumping installations.



The Unilift CC is a single-stage submersible drainage pump, designed for the pumping of drain water and grey wastewater. The Unilift CC has now the dual outlet option which makes installation more flexible and replacement even easier than before. Connect vertically or horizontally – as you like. The Unilift CC can pump down to a water level of 3 mm above the floor when removing the strainer. The Unilift CC is suitable for permanent as well as temporary installation. It is fitted with a non-return valve in the outlet in order to prevent backflow from the piping system. An adaptor ensures good connections to ¾ ”, 1” or 1 ¼ ” outlets.

The strainer is made of stainless steel, while the main pump parts, e.g. the sleeve and pump housing, are made of moulded composite materials.

  CC 5 A1 guide bar CC 7 A1 guide bar CC 9 A1 guide bar CC 5 CC 7 CC 9 CC 5 A1 CC 7 A1 CC 9 A1
Liquid temperature +4 °C => +40 °C
70 ° C for 2 min, in intervals of at least 30 min
Protection class IP 68
Insulation class F
Wheel Type Semi-open
Backups 2 discharge backups to choose from: from the top, to the side
Cable with Schuko plug
Câble (m) 10
Float switch Yes, with float switch Yes, with float switch Yes, with float switch No No No Yes Yes Yes
Output G 1¼
Power (W) 240 380 780 240 380 780 240 380 780
nom (A) 1,10 1,70 3,70 1,10 1,70 3,70 1,10 1,70 3,70
Maximum cross section ∅10
Pumping at ground level up to 3 mm.
Material Composite

Applications



The pumps are designed for pumping rainwater or grey wastewater from:

  • Washing machines, bath tubs, showers, sinks, etc.
  • Cellars or buildings prone to flooding
  • Draining wells
  • Collecting wells for surface water with inlets from roof gutters, tunnels, etc.
  • Swimming pools, ponds or fountains

The Unilift CC pumps are suitable for the following liquids:

Clean, non-aggressive water
Slightly dirty (grey) wastewater
EN 1.4401 version available for slightly aggressive liquids

Features and benefits



  • Horizontal or vertical outlet for easy installation or replacement
  • Suitable for low suction levels down to 3mm
  • Light-weight
  • EN 1.4401 version available for slightly aggressive liquids
  • Stainless steel strainer
  • Composite materials

Grundfos Unilift CC

Height and lifting length

Example



With a CC pump 7, for a lifting height of 4m, the drawn length would be 28m with a flow rate of 5m³/h.





The heights and lengths given in this diagram are given for information only. The liability of Wattuneed and Grundfos can not be incurred.
