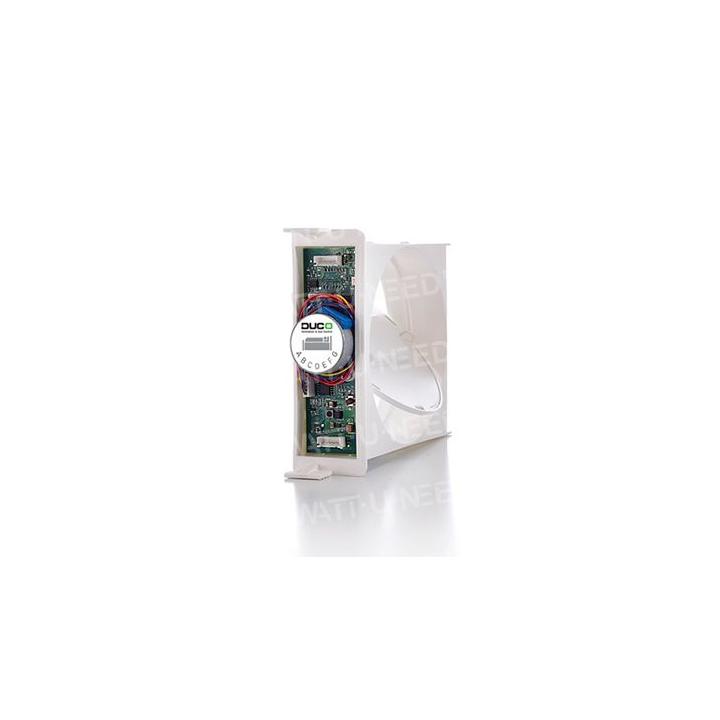

Control damper with CO2 sensor

Control damper with CO2 sensor

Control dampers, with or without an optional sensor for CO2 or humidity measurement, can be integrated into the DucoBox Focus exhaust fan. These dampers ensure that only exhaust air and/or humid air is exhausted when and where necessary and in the correct quantity.
The flow rate of the dampers, which is configured by default, can be manually changed during or after installation via the display menu of the Duco Network Tool.

For CO2-controlled living parts

A CO2 control damper controls the ventilation system on the basis of continuous measurement of CO2 (the main criterion for indoor climate) and temperature.

For the toilets

Based on the CO2 measurement, this flap detects the presence in the toilet and activates the ventilation system that will extract the polluted air.

(Note: A CO2 Control Valve for toilets works differently than a CO2 Control Valve for living room / open kitchen / bedroom. This is necessary for the correct operation of the system).

Dimensions
