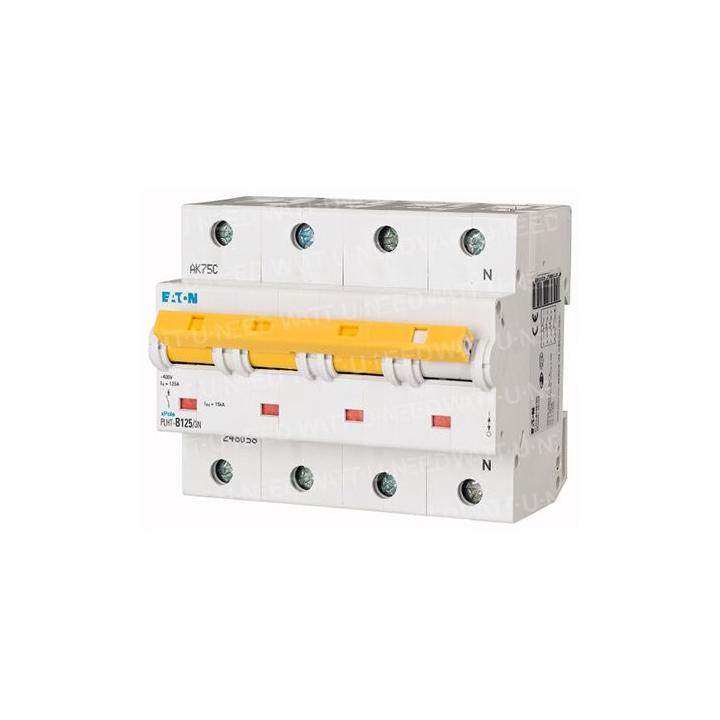

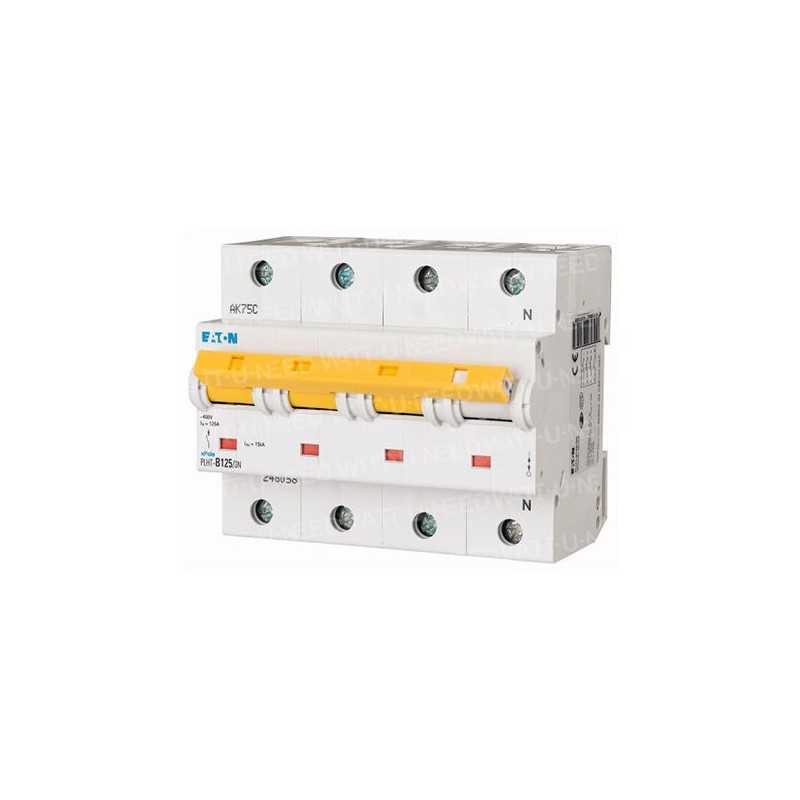

Modular circuit breaker 15KA 4P C125A
€ 438,00
Belasting inbegrepen
PLHT-C125/3N
0768563818851
Modular circuit breaker, 125A, 3Np, car. C, CA
Modular circuit breaker 15KA 4P C125A
Modular circuit breaker PLHT, 3 poles+N, Trigger characteristic: C, Current assigned In: 125 A, Assigned power of cut-off according to IEC/EN 60947-2, Electrical apparatus for advanced tertiary and industry.
Characteristics
| Basic function | Modular circuit breakers |
| Number of poles | 3 poles + N |
| Triggering characteristic | c |
| application | Electrical apparatus for advanced tertiary and industrial services |
| Assigned Current [In] | 125 A |
| Assigned cut-off power according to IEC/EN 60947-2 | 15 kA |
| range | PLHT |
| TECHNICAL SPECIFICATIONS | |
| Type of shot | c |
| Number of poles (total) | 4 |
| Number of protected poles | 3 |
| Rated current | 125 A |
| Nominal voltage | 400 V |
| Nominal isolation voltage Ui | 440 V |
| Voltage type | ac |
| 50 - 60 Hertz | 50 – 60 Hz |
| Compatible with surface mount | No |
| N-neutral simultaneous switching | Yes |
| Overvoltage category | 3 |
| Width according to module spacing | 6 |
| depth | 75 mm |
| Degree of Protection (IP) | IP20 |
PLHT-C125/3N
Gegevensblad
- Type elektrische apparatuur
- Disjoncteur
Specifieke referenties
- upc
- 768563818851
- ean13
- 0768563818851
Nieuw
Modular circuit breaker 15KA 4P C125A — Elektrische apparatuur
Modular circuit breaker 15KA 4P C125A is available in our Elektrische apparatuur catalog. Technical specifications: type elektrische apparatuur: Disjoncteur. Product weight: 0.7 kg. Referentie: PLHT-C125/3N.
