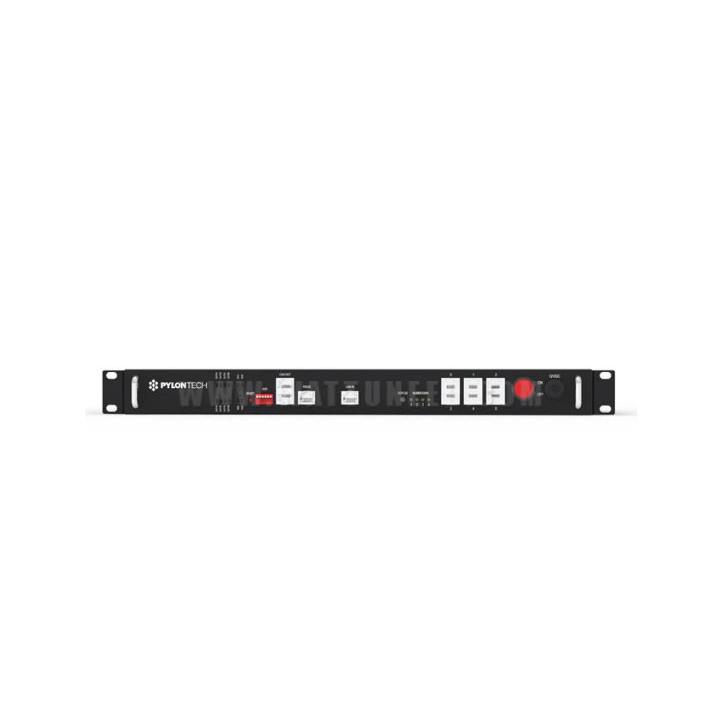

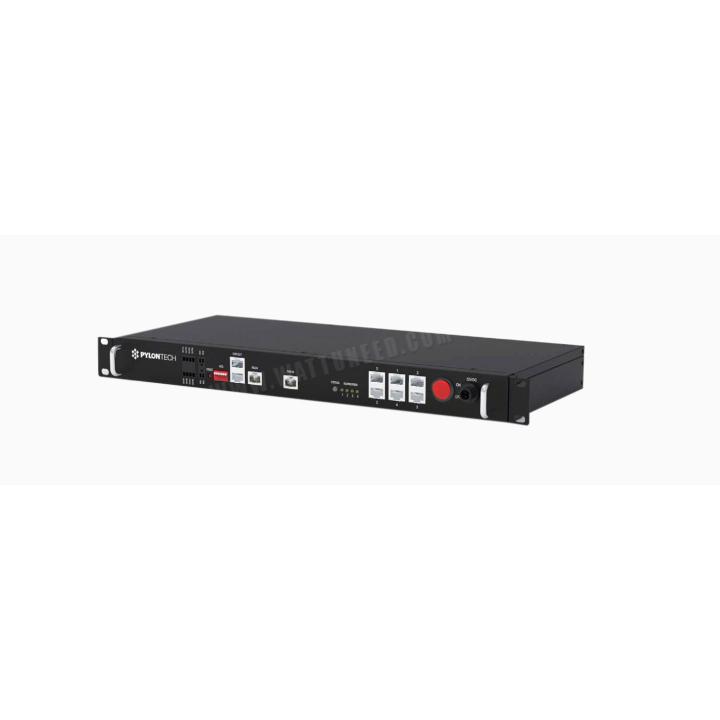

Pylontech 48V parallel hub
€ 592,04
Belasting inbegrepen
HUB-48
0768563815799
Connection to put in parallel for battery Pylontech for a 48V system
⚡
Combien allez-vous économiser ?
Simulez vos économies
avec ce kit de 6 kWc
The Hub 48V to make the communication between several batteries parallel layouts.
Each communication Hub connects to the maximum 5 batteries minimum 8 US2000B more batteries or 12 batteries US3000B.
Take to achieve the communication for a battery with capacity system password 19.2 kWh to 210 kWh.
CAN communication cable connection
Connection cable for RS485 communication
Data sheet
| Operating voltage range | 12 Vdc |
| Communication interface | CAN/RS485 |
| The system consumption | 2W |
| Size | 442 * 150 * 44mm |
| Degree of protection | IP20 |
| Weight (kg) | 3.5 |
| Life | 15 years |
| Operating temperature | -20 ~ 60 |
| Storage temperature | -40 ~ 80 |
| CAN (Max 5 groups) | Transmission speed: 500K; Terminal resistance: 0/120 |
| RS485 (Max 5 groups) | Speed of transmission: 9600 / 115200 |
HUB-48
Gegevensblad
- Spanning
- 48V
- Breedte
- 442 mm
- Hoogte
- 44 mm
- Dikte
- 150 mm
- Gewicht
- 3,5 kg
Specifieke referenties
- upc
- 768563815799
- ean13
- 0768563815799
Nieuw
Pylontech 48V parallel hub — Batterijen op zonne-energie
Pylontech 48V parallel hub by Pylontech is available in our Batterijen op zonne-energie catalog. Technical specifications: spanning: 48V, breedte: 442 mm, hoogte: 44 mm, dikte: 150 mm, gewicht: 3,5 kg. Product weight: 3.5 kg. Referentie: HUB-48.
