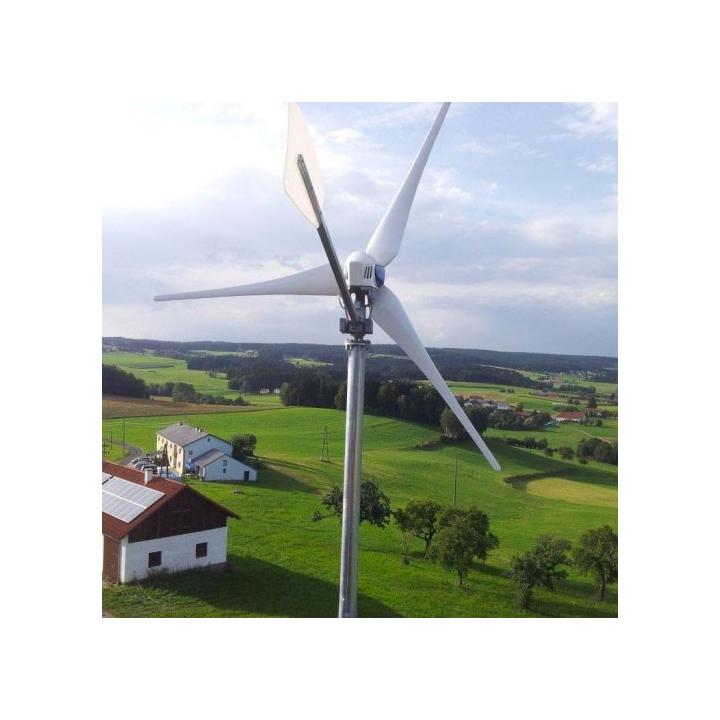

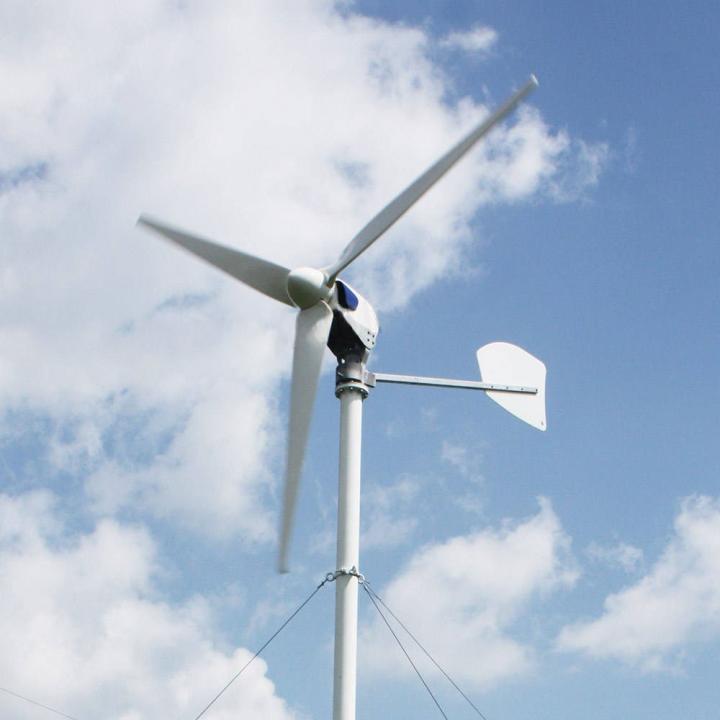

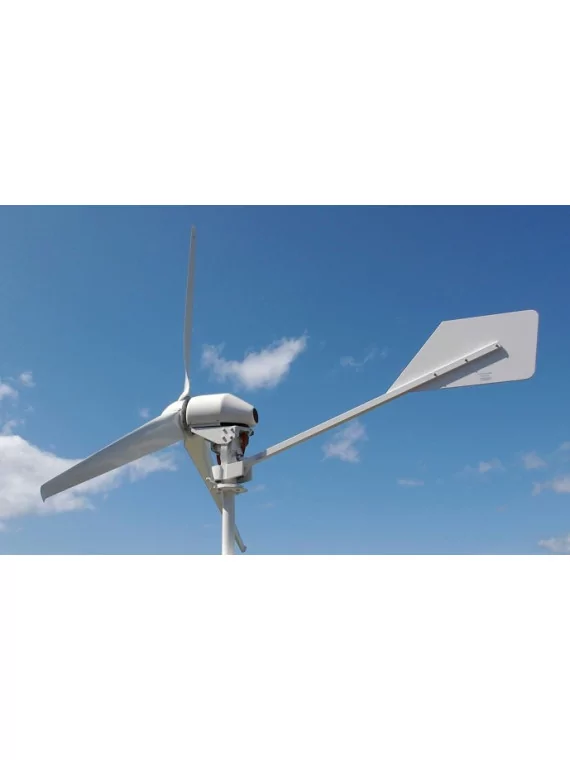

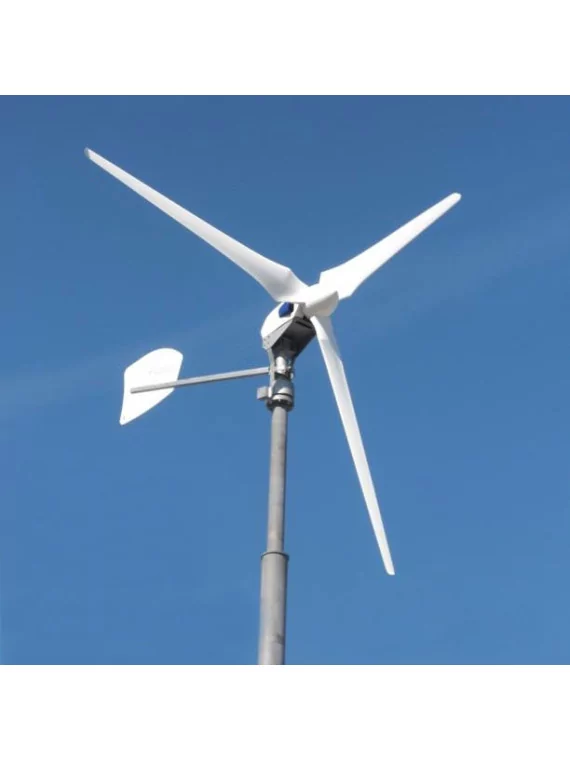

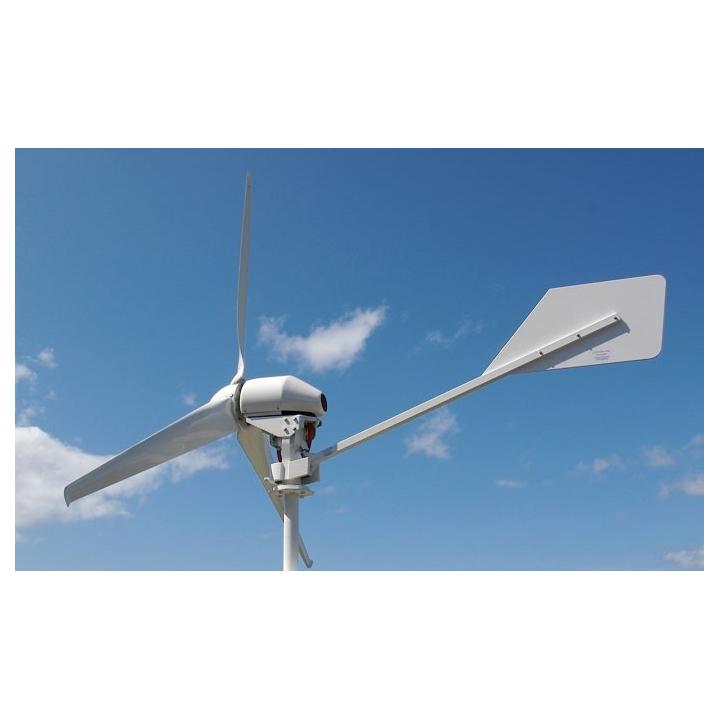

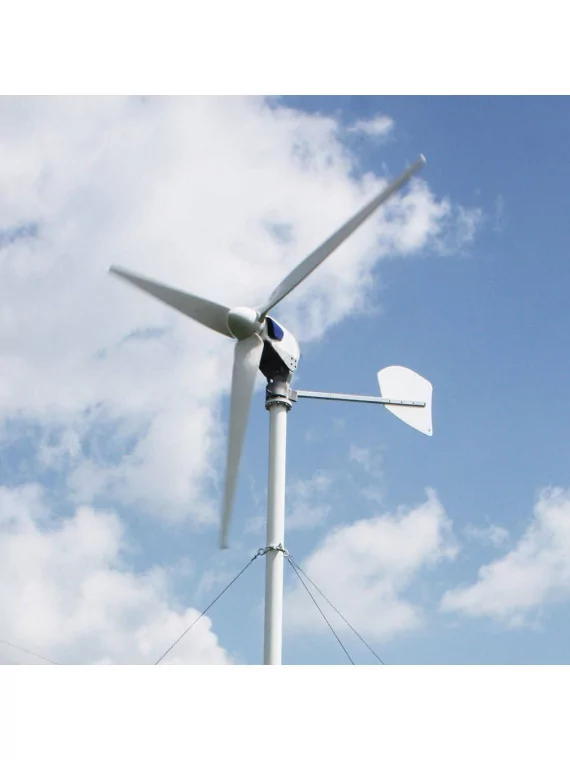

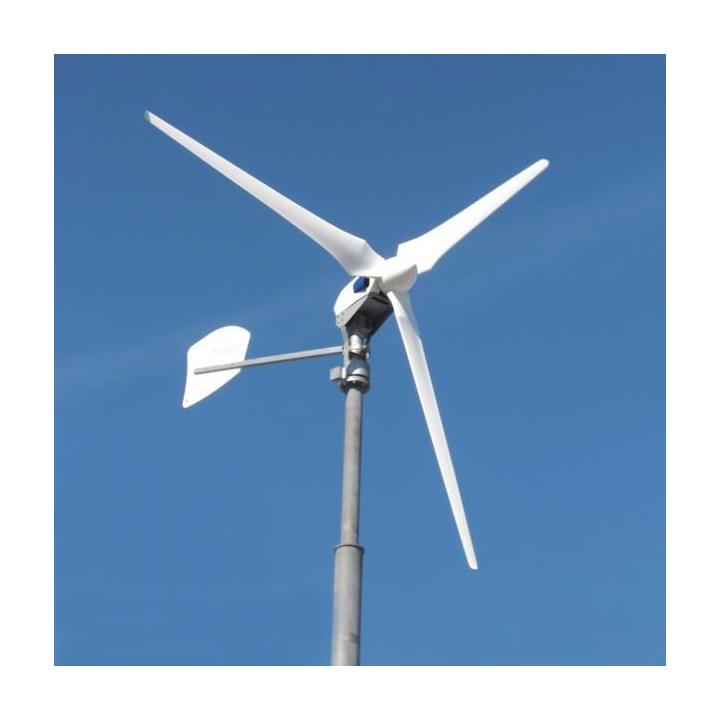

Windkraftanlage Antaris 7,5 kW – für Netz & Warmwasserbereiter (Warmwasserbereiter nicht im Lieferumfang enthalten)

The Antaris wind turbine is specially adapted to sites inland. It can charge a battery pack in 24 VDCs or 48 VDCs and power heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.

The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.

Thanks to its robust and careful design, the antaris wind turbine has an excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.

---

Technical features



Generator



• Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
• NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
• Phase
• Separate lifter
• Rotation in both directions
• Tension 0-1000 V
• Starts production at about 75 t/mn
• Power: 7,500 watts at 330 t/mn and 400V
• Linear power curve
• Weight: 87kg
• Carter aluminum, cooling of the surface and the fastening base
• Protection IP56

---

Rotor



• Connection hubs with aluminum strap and overpressure plate
• Stainless steel fitting screws and counter-nuts
• Fiberglass rotor blades and laminated carbon fiber
• Computer-designed aerodynamic profile
• Noise reduction on the end of the blades
• 6.5m in diameter
• Blade weight: 9.2 kg
• Dynamically balanced
• Anti-clockwise rotational sense
• Rotation speed up to 300 t/mn
• GRP spinner cap
• The colour of the rotor of your choice

---

Chassis



• Weather-resistant HDPE Girouette
• Support element: stainless steel square tube
• All threaded fittings are made of stainless steel and equipped with nuts
• Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
• Protected by a patented rotor-blade positioning system
• Mast adapter with bridle connector (139 mm tube)

---

Storm protection



• Switching the pale rotor to the "helicopter" position
• Electronic control of turbines

---

Control cabinet



• Control system with voltage monitor
• Electronic control of turbines with regulator
• Connector protections against polarity inversions
• Controlling the phases of the alternator during the turbine mode
• Emergency shutdown switch
• Key switch re-initializer (removable)
• 2 x 3 Kw braking resistance

---

Smart Power Electronics 7.5 kW inverter



MODERN - FLEXIBLE - POWERFUL

Max. 20 kW wind turbine load (SW-10)
Pairing the three-phase network with 10 kW (SW-10)
Flexible and intelligent management of clean power, heating, battery and discharge charges through 4 separate CC energy outlets
Energy counter for power and heating
Control of reactive power
Battery buffer interface - optional



PROFITABLE - SURE

Built-in control functions for a wind turbine Intelligent and finely resolute control of the characteristic curve for optimal wind use
Characteristic curve freely selectable depending on voltage or speed
Many monitoring functions, such as wind speed or speed
Switch to shut down KWEA with other safety features



Compact

Direct connection of the particle generator without additional equipment
Wide range of input voltage for particle generators
Compact design of the case with a separate aperture connection area
Passive convection cooling on a wide range of performance
Integrated network/system protection (NA protection according to VDE AR-N 4105)



Communicative

Built-in graphic display
Built-in web server
Practical PC Smart!wind Explorer use and set-up interface



APPLICATION AREAS

Small wind turbines
Small hydroelectric power plants
Mini-cogeneration



Characteristic

General data	SW-7.5
Size	656 x 472 x 234 mm
Weight	42 kg
Protective class	IP54
Cooling	Passive air/fan controlled according to demand
How it works in the temperature range	-25 degrees Celsius ... -40 degrees Fahrenheit - automatic decommissioning
Global efficiency	No more than 94%.
Clean consumption	18 W - Waiting
	83 W - Active offer
Entry generator side
Generator type	excited constantly / 3 phases
Generator-side lifter	B6
	60...500 VLL
	310 ... 500 VLL - for a full power of 10 kW
	600 VLL - maximum
Entry voltage range (driver-driver)	20 A - face value
Entry current (nominal value)	40 A - max. 5 s
Entry power	15 kW - face value
Entry current (nominal value)	30 kW - max. 5 s
Maximum value limited by load resistance	0 Hz ... 150 Hz
Frequency of entry	Isolation control
Monitoring generators	Temperature control
	Speed control
Exit sector side
Inverter sector side	IGBT B6
Number of phases	3
Output power (nominal value)	7.5 kW
Exit tension	400 VLL - face value
	318 ... 460 VLL - eligible reach
Outfed current (nominal value)	0 ... 11 A
Exit frequency	0 Hz ... 150 Hz
Separation concept	without transformer - no galvanic insulation
Power factor - cos	3%
Power factor - cos	regulated to 1 - regulation according to VDE AR-N 4105
Resistance to short circuits	Current control
Network/system protection - ENS	VDE AR-N 4105

---



Monitoring the battery charger in 48 VDC
