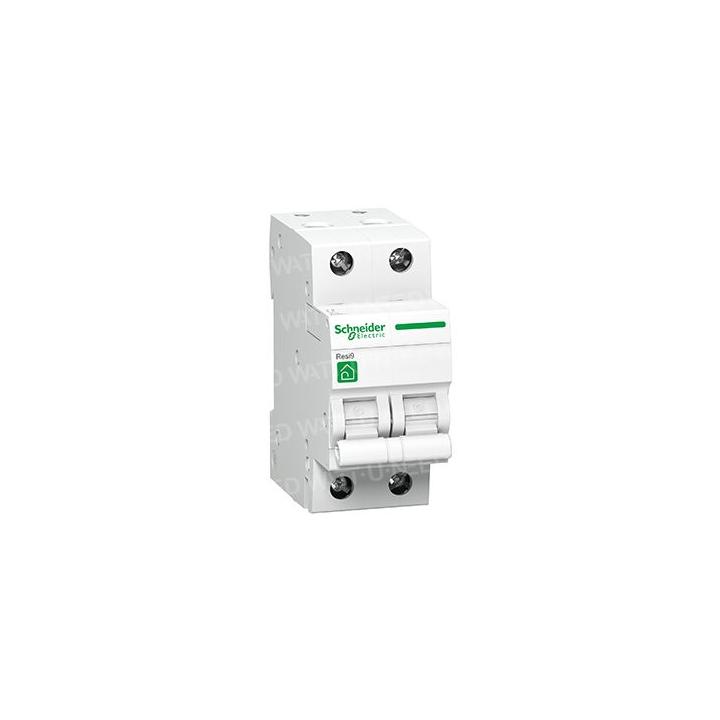

Schneider Breaker mono 25A
Schneider Breaker mono 25A

Schneider single-phase 25A circuit breaker

€ 19,40
Belasting inbegrepen
R9F64225
0712971133242

• Schneider 25A Breaker
• RESI9
• 2 pole
• 400V



In view of the current situation concerning the reordering of products and the uncertain deadlines communicated by our suppliers, we cannot guarantee to supply you with a Schneider brand circuit breaker.
However, as an alternative, we can provide you with a Hager circuit breaker with the same characteristics.



Commentaar (0)

Geen klantenbeoordelingen op het moment.



Main
range Resi9
Product name Resi9 MCB
Product or component type Miniature circuit breaker
Application of the device distribution
Description of the poles 2P
Number of poles protected 2
[In] assigned current job 25 A to 30 degrees Celsius
Type of network Ac.
Trigger technology Thermal-magnetic
Trigger curve c
Cutting power 3000 A Icn to 230 V c.a. 50/60 Hz compliant with EN/IEC 60898-1
Standards EN/IEC 60898-1
Product certifications CEBEC
Complementary
Frequency of network 50/60 Hz
[Ue] assigned job tension 230 V AC 50/60 Hz
Magnetic trigger limit 5...10 x In
Limitation class 3 according to EN/IEC 60898-1
[Ui] assigned isolated tension 440 V AC 50/60 Hz
[Uimp] assigned tension of holding to shocks 4 kV
Type of command Rocking key
Local signage IndicationACTIVE/DEACTIVE
How to install In clips
Mounting support Rail DIN
Distribution block and comb compatibility Bottom: bi-connect
No 9 mm 4
height 85 mm
width 36 mm
depth 75 mm
Product weight 0.217 kg
colour White
Mechanical lifespan 20,000 cycle
Electric lifespan 10000 cycle c.a. 50/60 Hz compliant with EN/IEC 60898-1
Description of optional locks Cadenas on OFF position
Connection mode Tunnel-type terminals (bottom) - < 16 mm2 - flexible
Tunnel-type terminals (bottom) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 16 mm2 - flexible
Tightening torque 2 N.m
environment
Degree of IP protection IP20 compliant with IEC 60529
IP40 (modular box) compliant with IEC 60529
Pollution level 2 EN/IEC 60898-1
Surge category Iii
Operating temperature -20 to 60 degrees Celsius
Room temperature for storage -40 to 80 degrees Celsius
R9F64225

Gegevensblad

Type elektrische apparatuur
Disjoncteur

Specifieke referenties

upc
712971133242
ean13
0712971133242
