666,70 €
Inklusive Steuer
X3-EPS-BOX
0768563817236

The EPS box is a Solax accessory to manage the EPS output of hybrid inverters.

Kommentare (0)

Aktuell keine Kunden-Kommentare

Solax EPS Box



X3-EPS BOX Solax

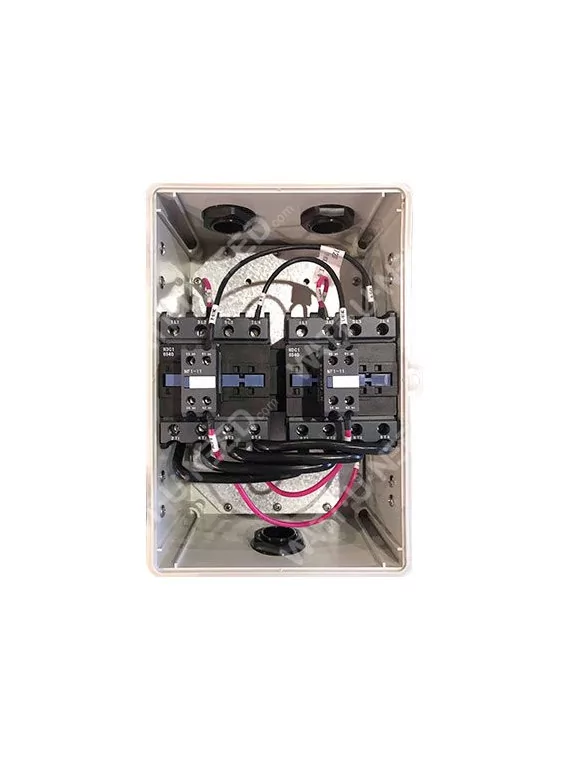

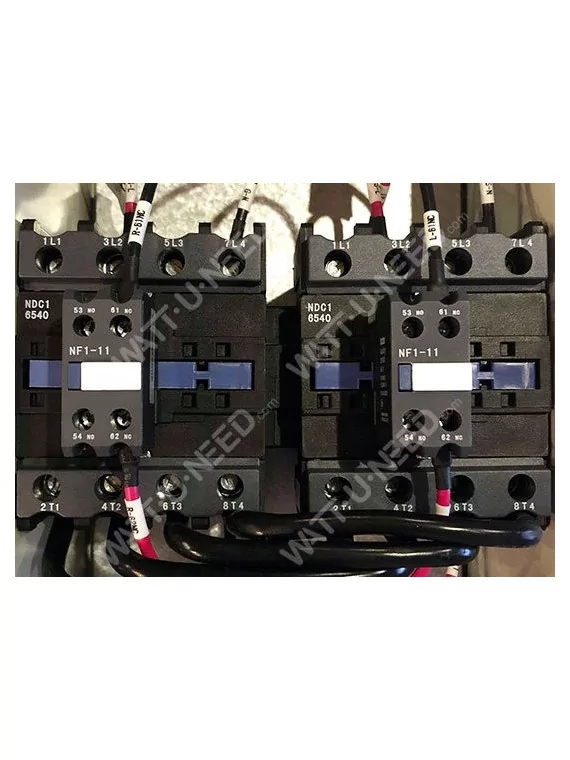

EPS Box incorporates two contactors that allow for a simple connection for users.

It is compatible with The X-hybrid E-Series inverters.
With EPS Box, customers only need to connect 6 wires between the inlent and the EPS Box.
It can simplify the operation and improve security.










Characteristics



Nominal network tension 3/N/PE-400/230V
Nominal network frequency 50/60Hz
Max. Network Entry Current 3X63A
Nominal power voltage 3/N/PE-400/230V
Rated frequency of EPS 50/60Hz
Max. SAEU Entry Current 3X63A
Nominal Rated Charge Nominal Tension 3/N/PE-400/230V
Nominal charge frequency 50/60Hz
Max. Charge current 3X63A
Above the VOltage category
Operating temperature range -20-60 degrees Celsius
Intrusion protection IP65
Weight 4.85kg
Size 360x220x160
X3-EPS-BOX

Spezifische Referenzen

upc
768563817236
ean13
0768563817236
