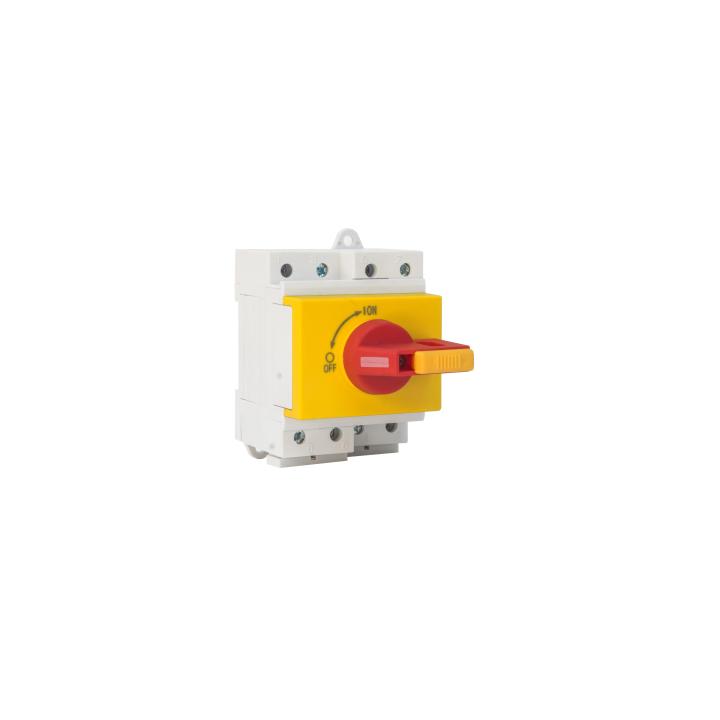

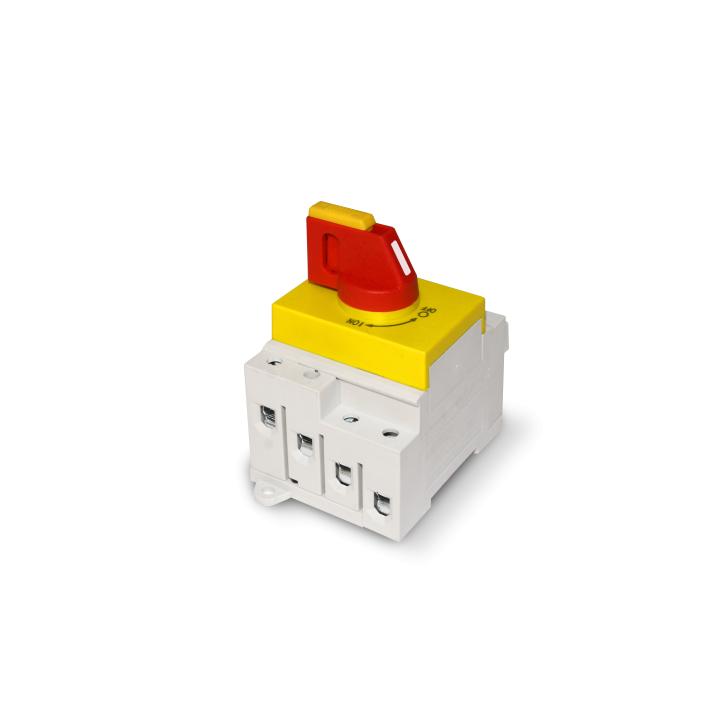

ZJ-Beny DC 500V 32A Switch
ZJ-Beny DC 500V 32A Switch
ZJ-Beny DC 500V 32A Switch

DC 1200V 32A Switch

32,55 €
Inklusive Steuer
0729
0712971128866

DC 1200V 32A Switch

Kommentare (0)

Aktuell keine Kunden-Kommentare

" Ideal to disconnect the panels from the rest of the installation "



500Vdc disconnector







DC 1200V - 2P - 32A Switch

The switch is used in photovoltaic installations to disconnect the DC side of the installation.
It can be used to open and close while charging.


 Advantages

  • Reduce the size of the box or location in the inverter.
  • Breaking and closing supported up to 1200 V dc
  • Secure the installation

Technical characteristics



Pole  4P
Max Rated Current  32A
Rated Working Voltage  1200V DC
Rated Current  16A/25A/32A
Tension DC max  1200V DC
Tension AC max  8KV
Service Life/Cycle Operation - Mechanical

 x 20000

Service Life/Cycle Operation - Electrical

 x 500

Tightening Torque

 2,5

Maximum Cable Cross Sections

 4-16mm

Ingress protection

 IP40

Storage Temperature

 -40℃~+85℃


Connection diagram



Connection diagram

0729

Datenblatt

Art des elektrischen Materials
Sectionneur

Spezifische Referenzen

upc
712971128866
ean13
0712971128866
