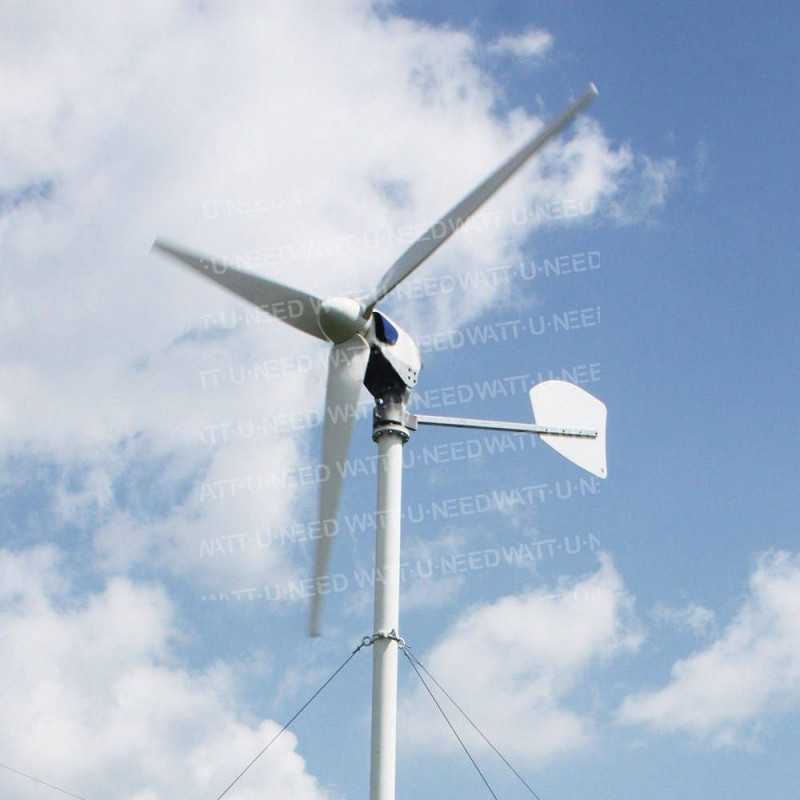

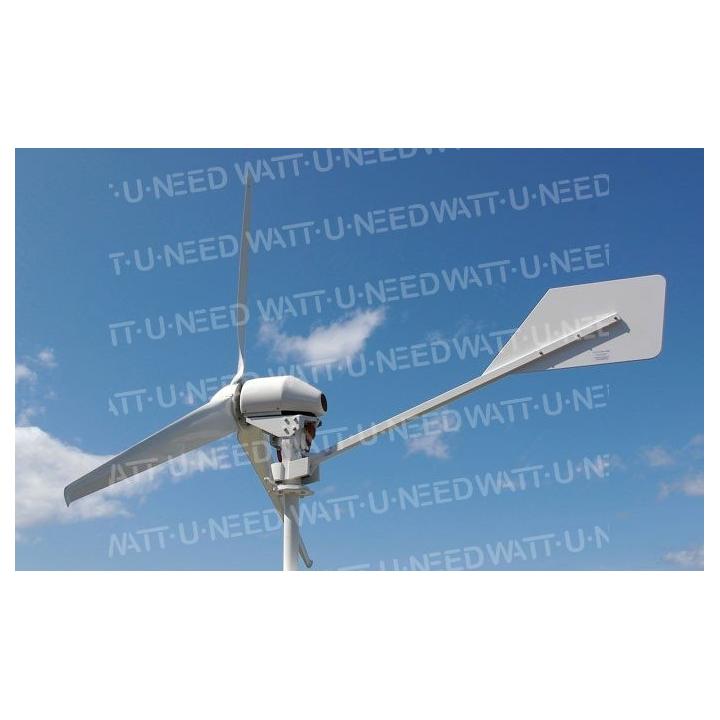

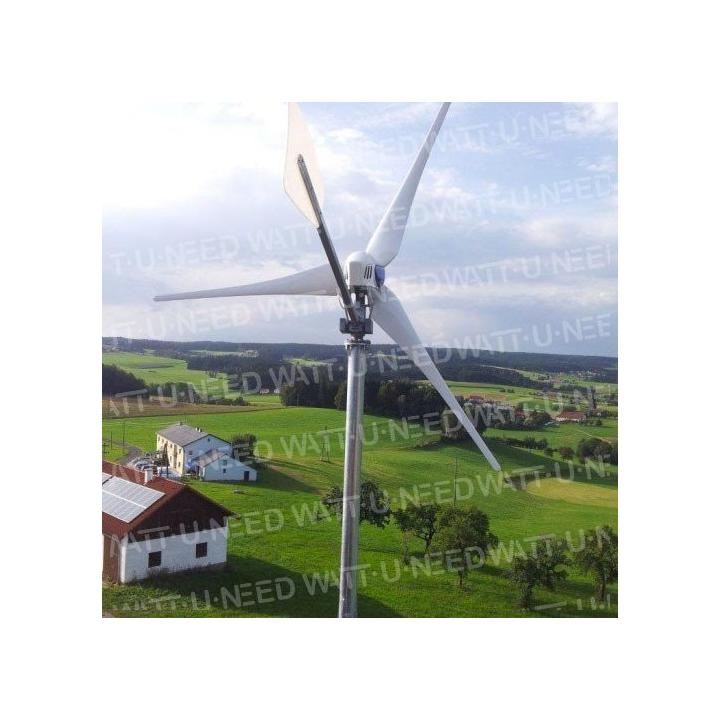

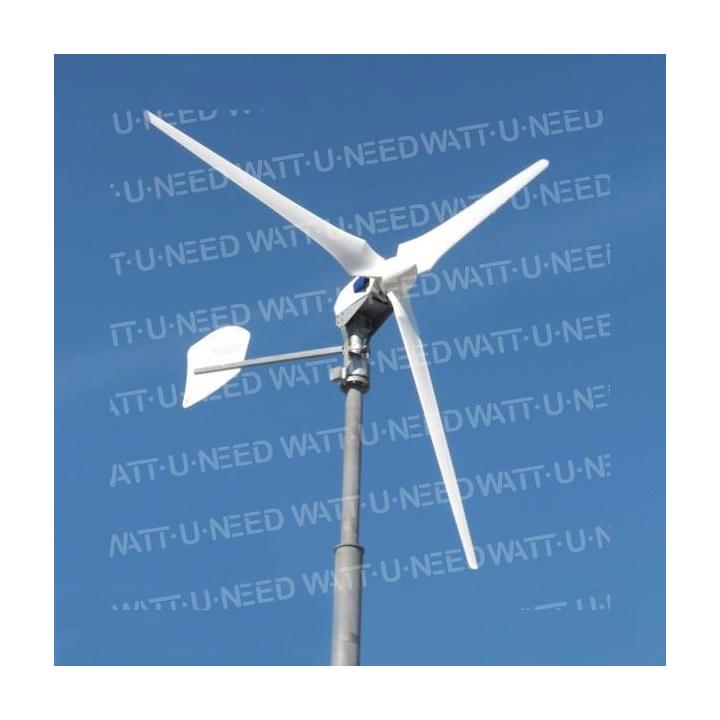

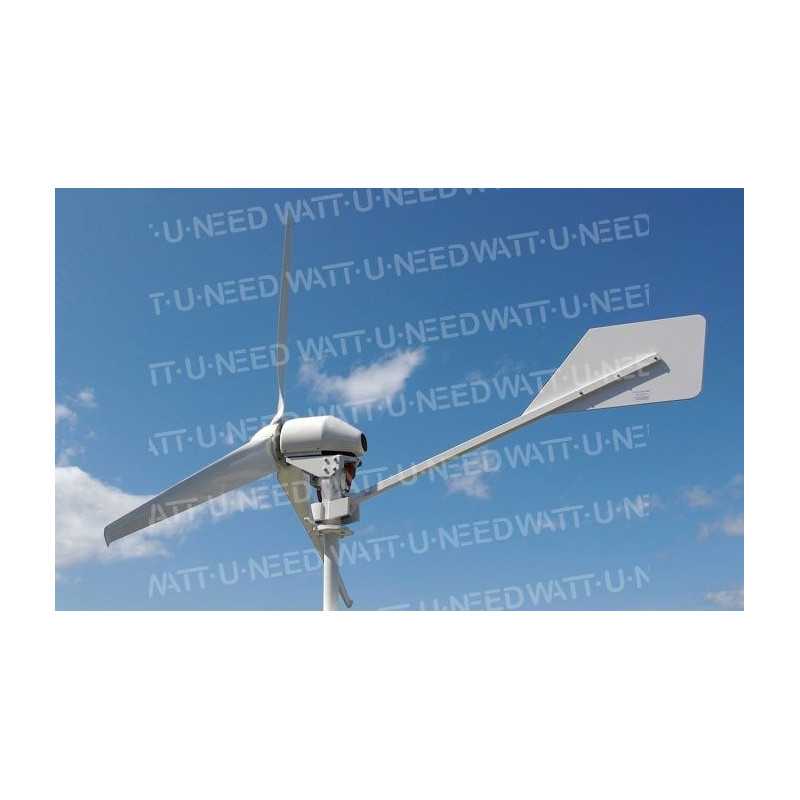

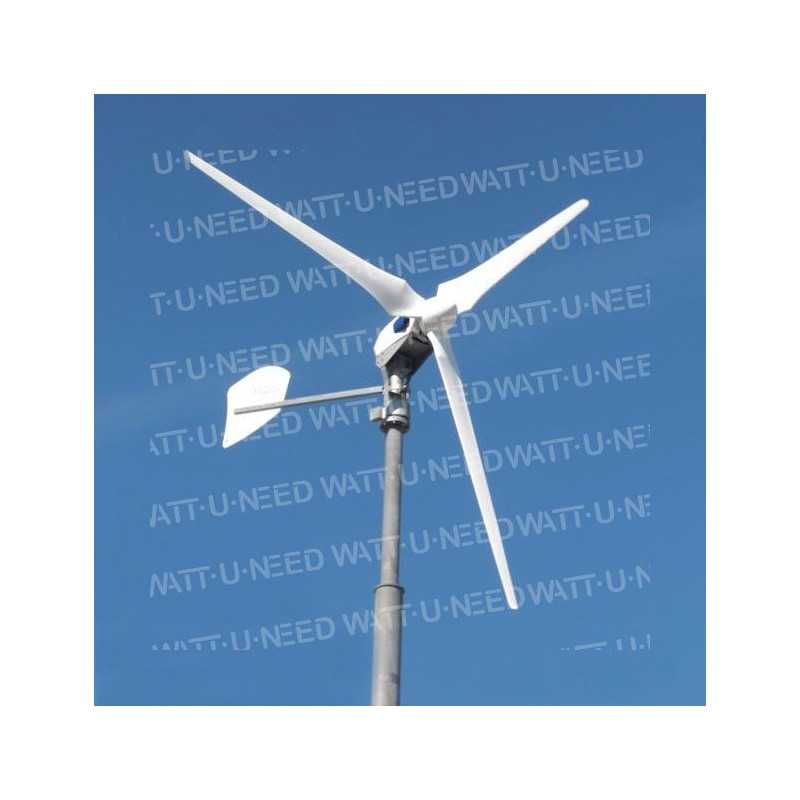

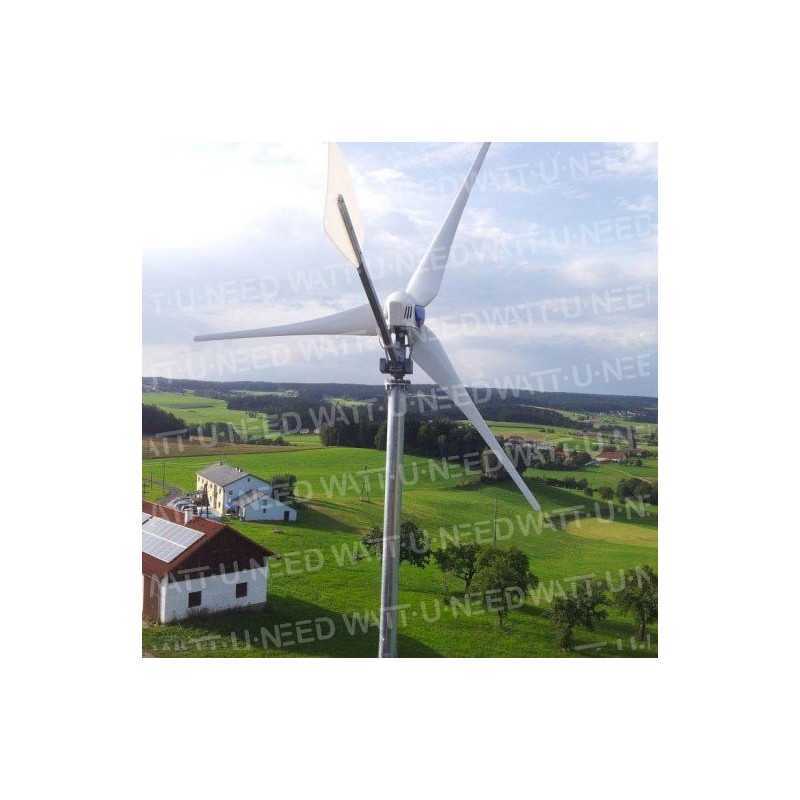

Wind turbine ANTARIS 12 kW network

The Antaris wind turbine is specially adapted to sites inland. It can charge a battery pack in 24 VDCs or 48 VDCs and power heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.

The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.

Thanks to its robust and careful design, the antaris wind turbine has an excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.

---

Technical features



Start feeding at 2.5 m/s wind speed after start-up, depending on the repellent. Wind power station especially for inland areas with weak to moderate wind conditions. From an average wind speed of more than 6.0 m/sec. a repellent with a diameter of 5.8 m is used.



Generator



Permanent magnet rotor, no brooms, no gears, no maintenance
High efficiency thanks to extremely powerful permanent magnets (permanent NdFeBo magnets, temperature-resistant up to 150 degrees)
Special ball bearings for safe reception of radials and axial forces
Triphasé three-phase
Separate re-backer
Any sense of rotation
Tension 0-1000 VDC
Feeding starts at about 65 rpm
Power: 12,000 watts at 255 rpm u 500 VDC
- ever-increasing performance curve
Weight: 160kg
Aluminium case, surface cooling, standing assembly
Degree of IP56 protection

Rotor



Connecting the hub with aluminum strap and pressure disc
Stainless steel screws with counter-nuts
3 fiberglass laminate rotor blades /carbon fiber
Computer-assisted aerodynamic profile, hand-rolled, with edge protection
Reducing noise with fins on the ends of the blades
6.50 m in diameter (optional 5.80 m - 6.0 m/s average wind speed)
Weight of a leaf: about 14.0 kg
- dynamically and statically balanced
Sense of rotation before "right"
Maximum speed 255 rpm.
GRP spinner cap
The colour of the rotor according to the customer's requirements



Support element



Girouette ("natural white" weather-resistant HDEP, slightly transparent)
Stainless steel square tube as a support element
All stainless steel screw fittings and supplied with locking nuts
Steel support as a generator support element, provided as a plug-in connection with azimutal ball bearing, fully galvanized
Patented helicopter padlocks
Mast adapter with bridle fitting (220 mm tube)



Storm protection



Helicopter position
Tension monitoring with 18.0 kW braking resistance
Short-circuit of the generator
Monitoring the temperature of the generator and inverter



Control Chamber



Three-phase monitoring of the generator and the network
Running parallel three-phase with Smart! Wind 10.0 kW
Control electronics for turbine control
Connected connections protected from polarity inversions/connectors
Monitoring the phases of the turbine-operating generator
Emergency switch
Reset switch with key (removable)
Redressor, display, ...
18.0 kW braking resistance

---

Monitoring the battery charger in 48 VDC

---
