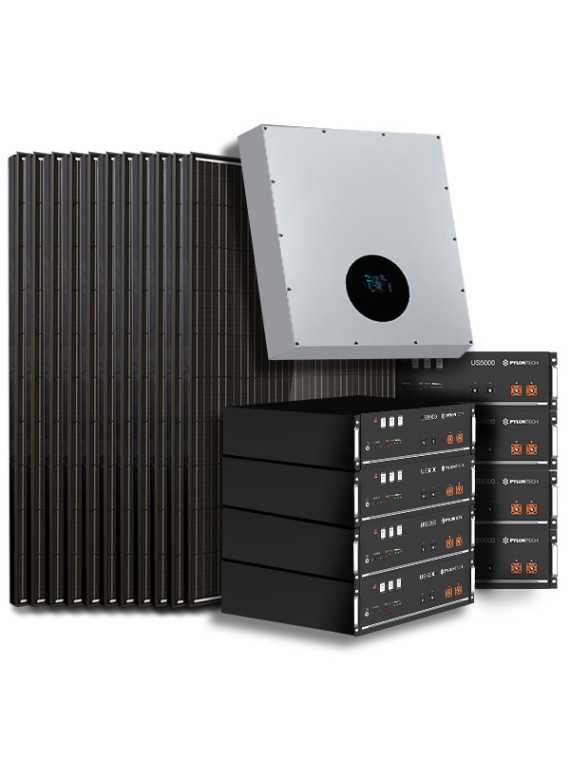

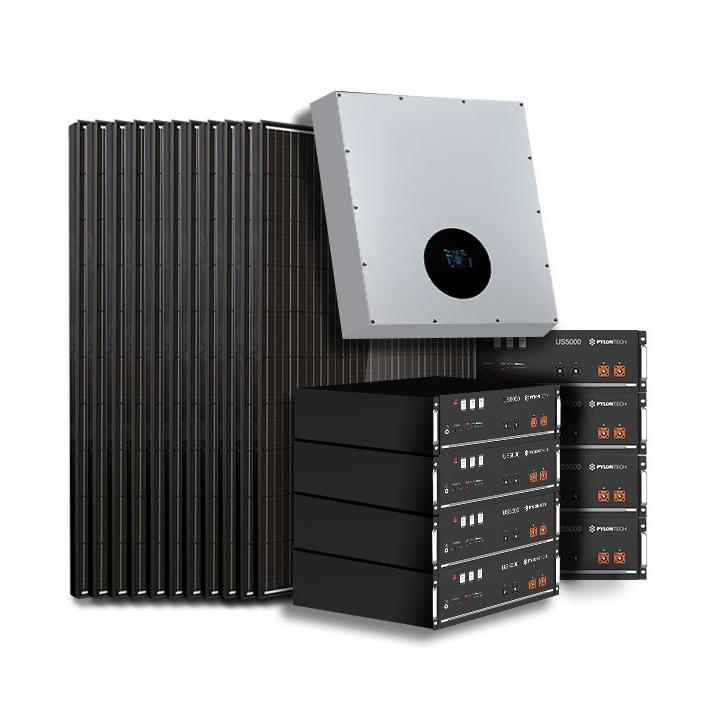

Kit 30 panels self-consumption/Reinjection 15kVA Tri with lithium storage

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to fit the kit to your needs. You can also see the details of the selected products directly below the price.

This kit is dimensioned with the general aim of supplying an isolated site or a standalone installation.

The basic composition of the kit contains 30 solar panels, a three-phase inverter MultiSolar 10kVA, the solar cables to connect the panels to the inverter and the inverter to your electrical panel, the system of Assembly of the panels is available as an option. (The mounting system as well as the wiring and protections can be modified to match your needs).

SOLAR PANELS:

In its basic version, this photovoltaic system will bring you an average of 36 kWh per sunny day. The productions will depend on the seasons (summer/winter) of the geographical position and the inclination of the panels.
We invite you to consult our solar production Simulator to determine exactly what your solar production will be.

Warranty 25 years at 80% of nominal power.

NETWORK INVERTER:

MultiSolar: store in your batteries and re-inject on the network the bare minimum, only if the batteries are full. Conversely, use the network to fill the lack of winter production and make a little extra on the batteries when the rainy days are succeeding. Maximize your production and no longer fear any power outage. Simply plug the downboard line from the roof onto the hybrid inverter (max 10 KWP)Store and use your solar power later.

BATTERIES:

What can I expect from my Lead Gel (gelled electrolyte) batteries?
GEL lead-acid batteries only need to be discharged to 50% of their capacity on a daily basis. For example, if your fleet has a capacity of 4.8kWh, care must be taken not to consume more than 2.4kWh.
In order to comply with the manufacturer's recommendations, the majority of GEL lead-acid batteries can only withstand faster discharges in 10 hours. If you have a fleet of 4 batteries of 100Ah in 48v, and therefore a total capacity of 4.8kWh, you should not consume more than 480W. The instantaneous photovoltaic production is to be added to this value. However, a slight margin is to be expected, indeed a lead-acid battery withstands faster discharges over a short period of time.

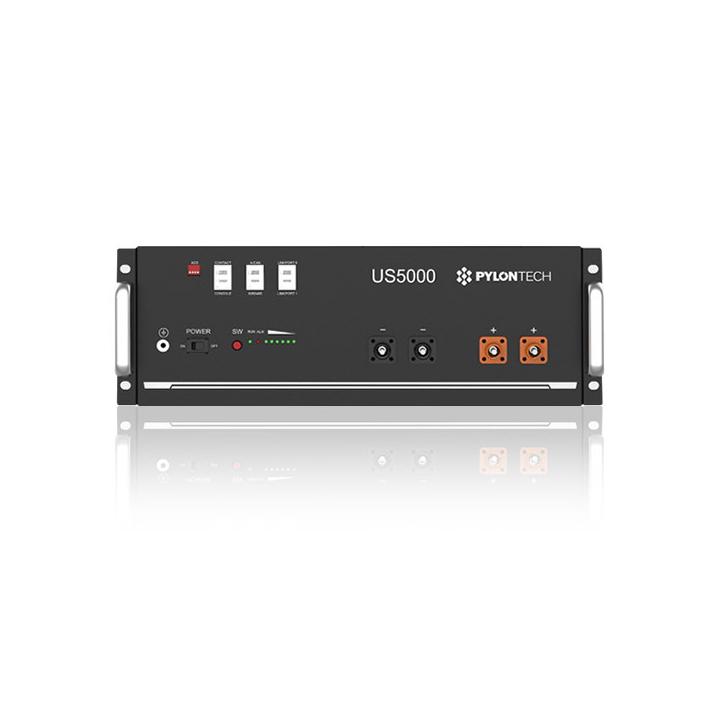

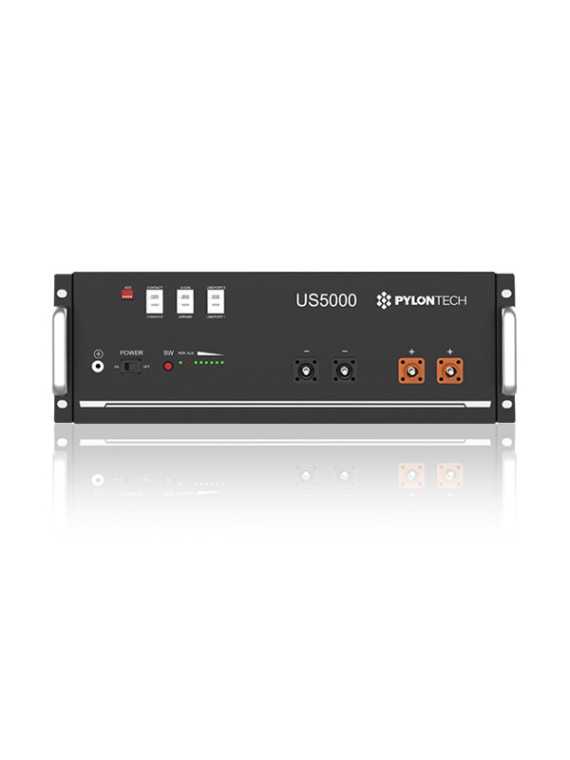

What can I expect from my lithium batteries?
Generally speaking, lithium batteries can be discharged much faster than stationary lead-acid batteries. They also allow more of their capacity to be used. It is common to be able to discharge them in an hour and be able to use up to 90% of their capacity.

How to know the capacity of your battery?
This is expressed in ampere hours, it is the product of the multiplication of the capacity (Ah) of the battery by the voltage (V) of it:

Example : 4 batteries of 100Ah of 12V mounted in series will give a voltage of 48V. These batteries will have a total capacity of 4.8kWh
 48V * 100Ah = 4800 Wh = 4.8 kWh

How do I calculate my battery requirement?
In order to make your life easier, we have developed a tool to size your autonomous solar kit and the size of your battery park.

See you here!

CABLE AND CONNECTORS:

All cables and connections are pre-wired in our workshops. Our kits are very easily mountable by ' beginners ' in electricity. For those who would have some reluctance on the technical side, our technical team assists you and helps you every day from 8AM to 5pm.

assembly:

The installation of this kit is very simple. Our records are clear and allow easy Assembly without any special knowledge. We answer all your questions before, during and after the installation of your system.

Warranty:

All products have an individual guarantee.
Panels guaranteed 25 years at 80% of the nominal power.
Inverter Multisolar warranty 2 years.

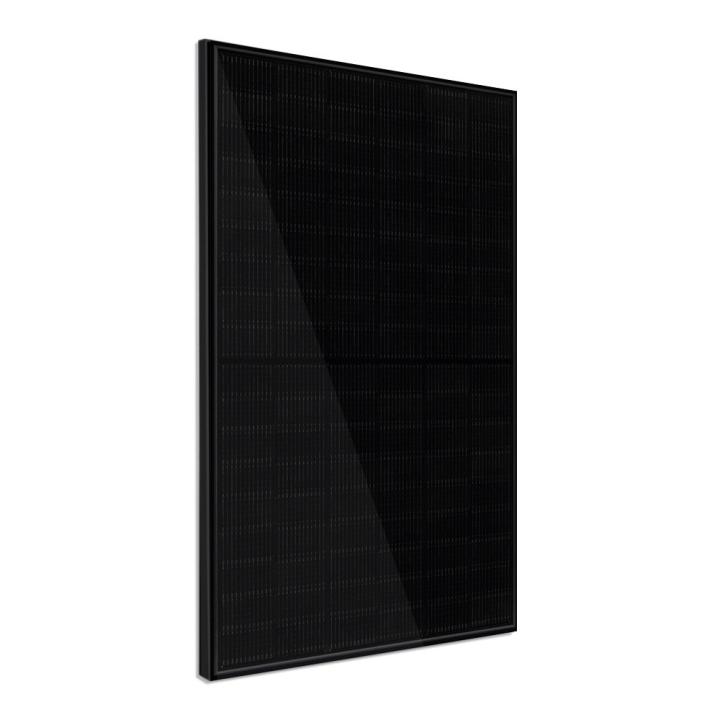

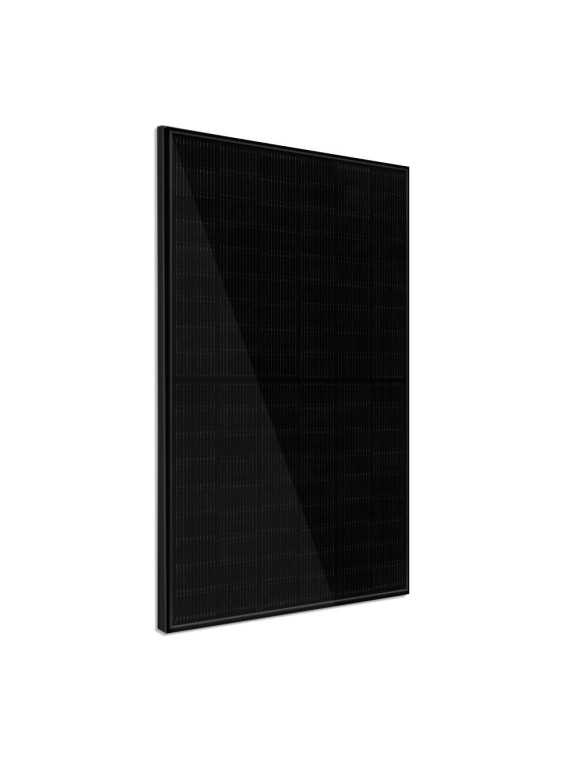

Solar panel



The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.















---

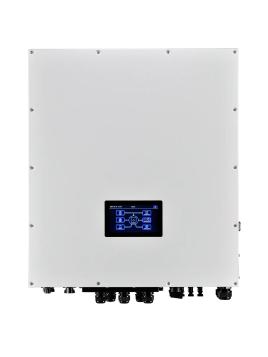

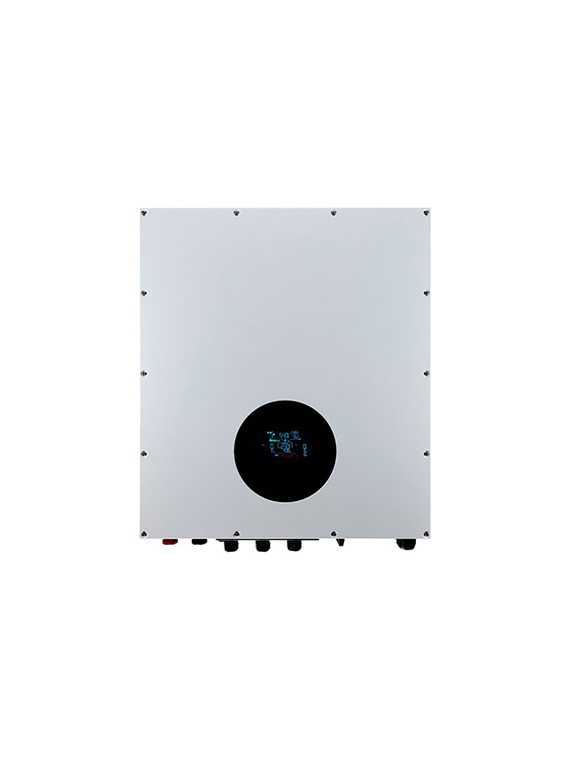

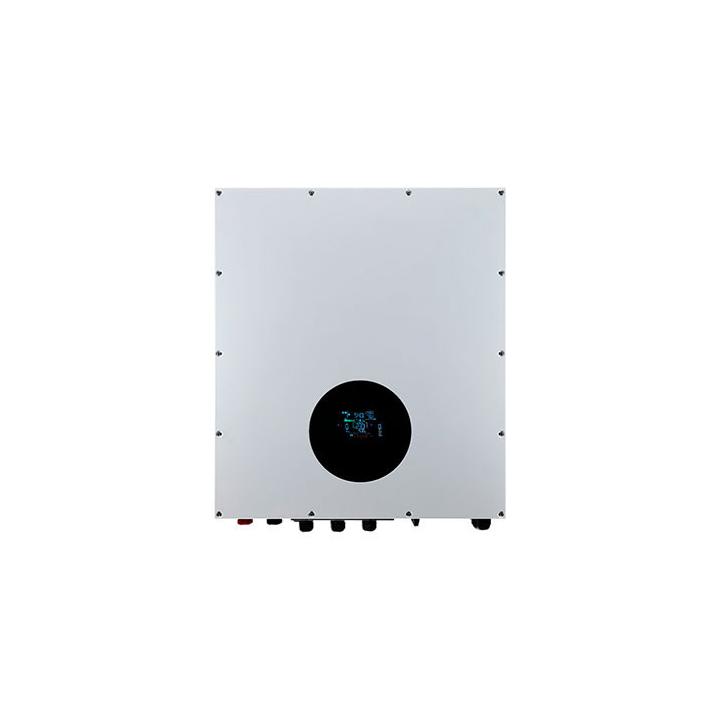

10 kW hybrid inverter network injection-Multisolar storage



MultiSolar: store in your batteries and re-inject the bare minimum on the mains, only if the batteries are full.

Conversely, use the network to address the lack of Winter production and make a little extra on the batteries when the rainy days are succeeding.

Maximize your production and fear no power outage.

Connect up to 14850Wc to the PV input of thehybrid inverter

Store and use your solar-generated electricity later.



Characteristics
