    Single DC enclosure
    Single DC enclosure

    DC Cut-out and lightning protection box 20A

    270,74 €
    Bruttopreis
    09939
    0712971131187

    Cut-out and protection box specifically designed for residential photovoltaic systems.

    100 % sichere Zahlungen

    Kunden, die diesen Artikel gekauft haben, kauften auch ...

    DC Cut-out and lightning...

    270,74 €

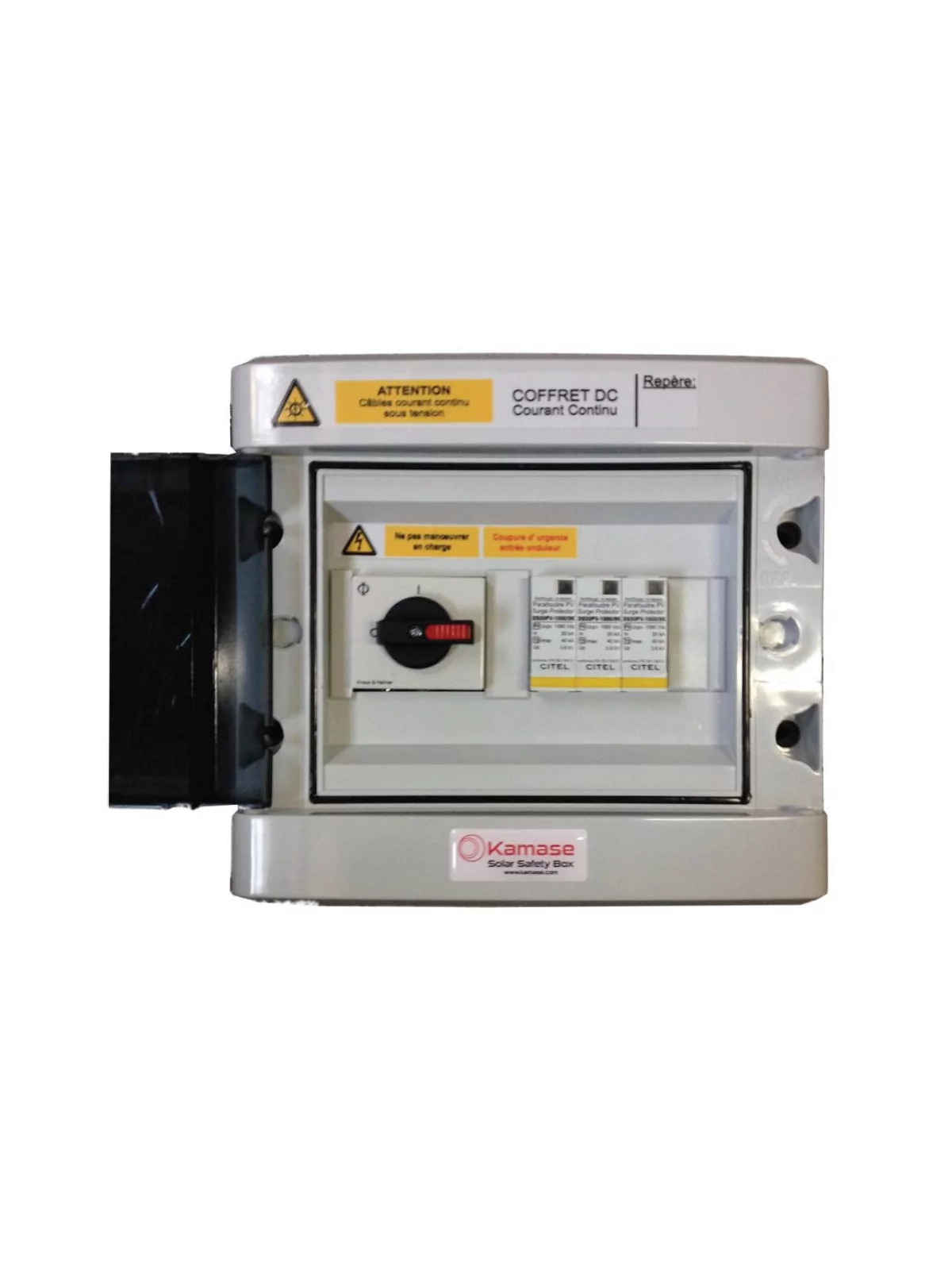

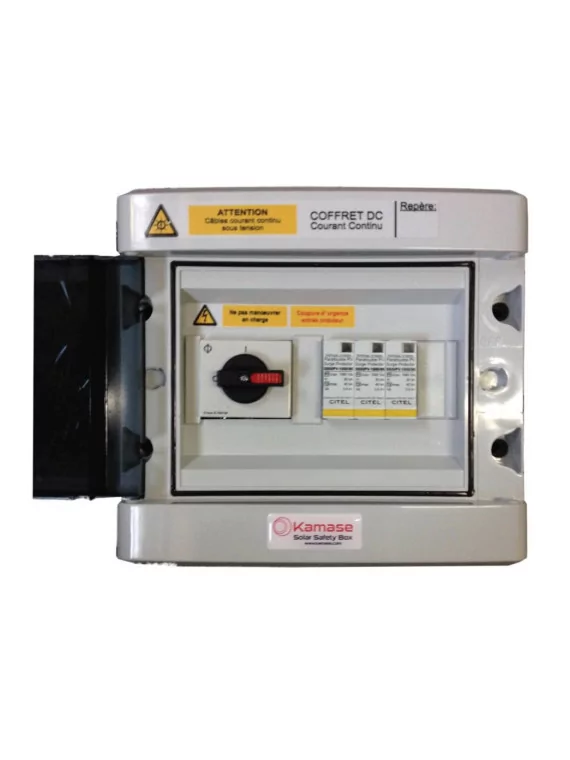

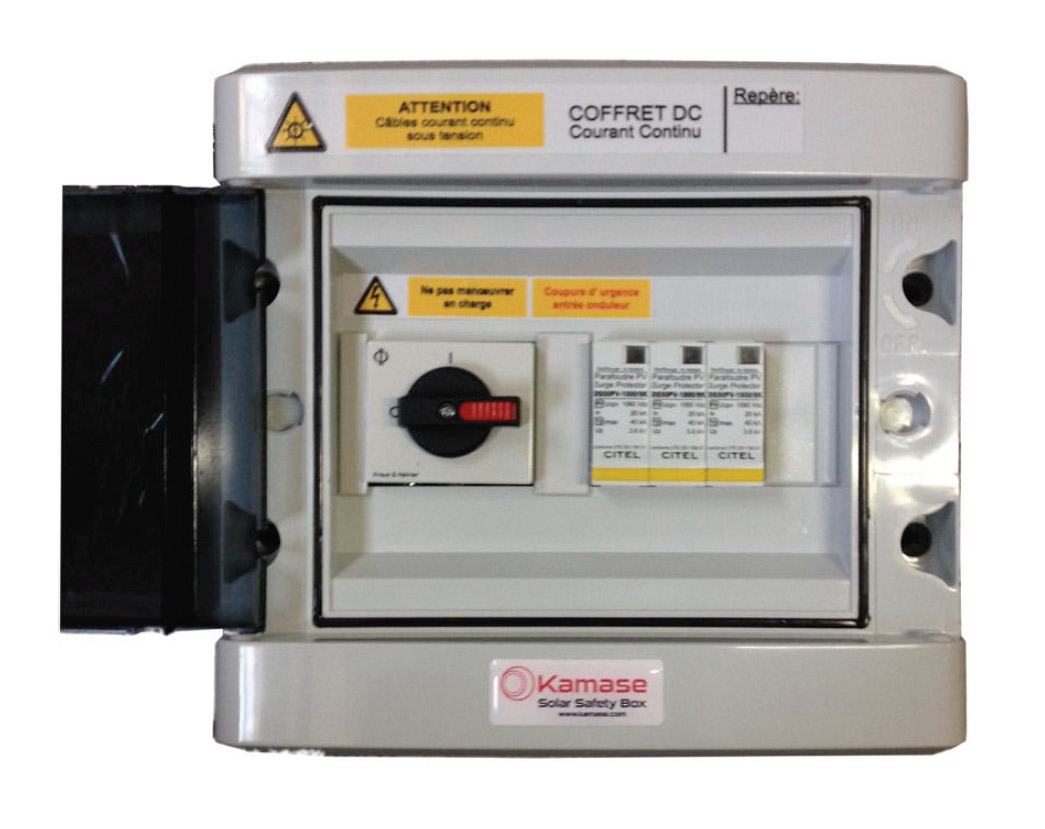

    DC Cut-out and lightning protection box 20A



    Simple Cut-out and protection box specifically designed for residential photovoltaic systems :

    • DC box equipped with 1 switch disconnector of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. A DC surge arrester protect the system.



    DC Cut-out and lightning protection box 20A



    Components

    Features

    Functions

    Switch Disconnector3-pole 20A-1000V DCSectioning
    Surge Arrester

    Type 2 photovoltaic 1000V DC In 15kA Imax 40A

    Protects against surges

    2 pre-wired  MC4 sockets

    Allows the connection of the string (connected directly to the switch)

    Connection strings DC



    Complies with C15-712-1



    Dimensions:


    8 modules L215xl238xP118mm


    Protection sign:


    IP 65 Outdoor Installation.





    Include


    • Spring terminals 6 to 10mm2 for easy connection.
    • Cable gland assembly.
    • Single-line diagram
    • Labeling according to UTE standards
    • Individual cardboard packaging

    09939
    405 Artikel

    Besondere Bestellnummern

    upc
    712971131187
    ean13
    0712971131187
    Neu

    Download

    Datasheet DC Simple 20A

    Download (408.56KB)
