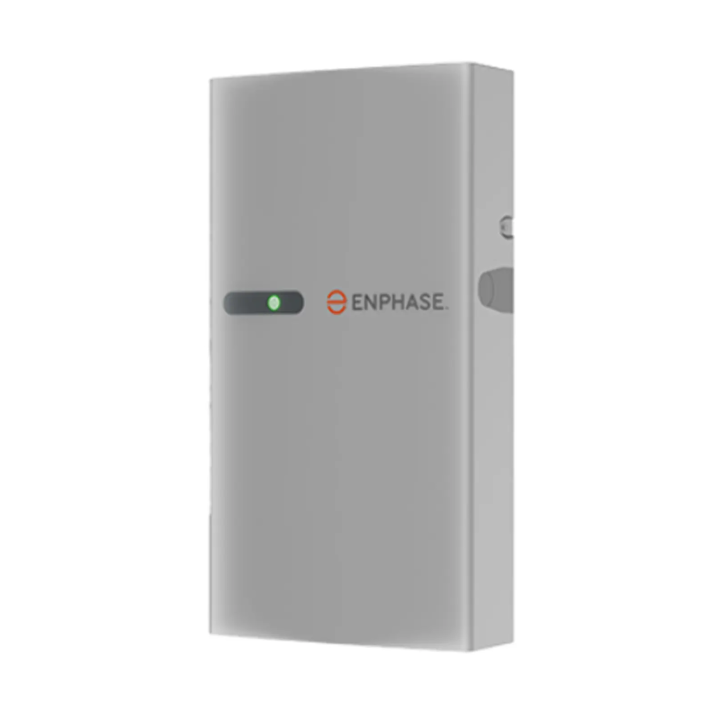

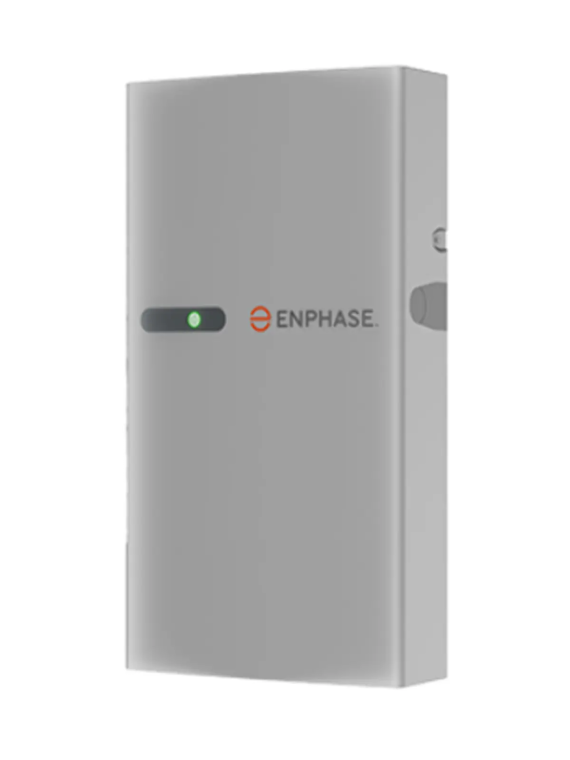

Enphase Battery Encharge 10T - AC Enphase Plug & Play
Enphase Battery Encharge 10T - AC Enphase Plug & Play

Kopie von Enphase IQ Flex Phase Dreiphasige Batterie 5P-3P-INT - Intelligente Batterie für alle Zwecke

4.267,40 €
Inklusive Steuer
IQBATTERY-5P-3P-INT
0768563823077

Enphase Encharge 10T™ is an all-in-one storage system (Battery and inverter/charger) with AC coupling. It is reliable, intelligent, simple and secure. It includes three storage units
3T charging™, with a usable energy capacity of 10.5 kWh. The storage unit incorporates 12 microunduers allowing a charging and discharging of 3.84 kVA of rated power.
Installers can size their systems to meet the needs of new customers and adapt it to those who are upgrading their system.

Kommentare (0)

Aktuell keine Kunden-Kommentare

10™LOAD



Reliability


• High reliability IQ Series microinverters
• Ten year warranty
• Three independent base storage units
• Twelve integrated IQ8X-BAT micro-inverters
• Passive cooling (no fans/moving parts)


Intelligence


• Remote software update
• Mobile app-based tracking and control
• Self-consumption assistance
• Optimization of hours of use


Simplicity


• Fully integrated AC battery system
• Quick and easy plug-and-play installation
• Interconnects to the building's AC power grid


Security


• Lithium-iron-phosphate (LFP) for maximum
safety and optimal longevity

Technical characteristics



Model number
ENCHARGE-10T-1P-FR
Encharge 10T™ energy storage system with integrated Enphase IQ series micro-inverters
and Battery Management Unit (BMU). Includes:
- Three base units Encharge 3T™ (B03-T01-FR00-1-2)
- A 10T™ charging fairing kit, wall mounting plate and connection cable for the
connection between batteries (B10T-C-1290-O)
Output power (Alternating current)
Rated output power (continuous) 3.84 kVA
Rated voltage/range
230/184 to 253 V AC
Rated frequency/range 50/47 at 52 Hz
Rated output current 16.7 A
Power factor (adjustable)
0.85 precursor ... 0.85 rear
Interconnection Phase
Maximum AC fault current 8.4 Arms
Effectiveness of feedback1 89%
Battery
Total capacity 10.5 kWh
Useful capacity 10.5 kWh
Return efficiency 96%
Rated DC voltage 67.2V
Maximum DC voltage 75.6V
Operating ambient temperature range
-15º C to 55º C (5º F to 131º F), non-condensing
Optimal operating temperature range
0ºC to 30ºC (32ºF to 86ºF)
Composition
Lithium-iron-phosphate (LFP)
Mechanical data
Dimensions (WxHxD)
1283 x 775 x 188 mm (50.5" x 30.5" x 7.4")
Weight
Three individual base units of 40.5 kg (89.3 lbs) plus a lid and a plate of
fixation of 22.1 kg (48.7 lbs) = 143.6 kg (316.5 lbs) in total
Case Outdoor - IP55
Cooling
Natural convection; no fan
Altitude
Up to 2,000 m (6,561 ft)
Assembly Mural
Features and Compliances
Compatibility
Compatible with networked PV systems. Compatible with Enphase M215/ M250 and IQ and Enphase Envoy-S series Microphones.
Communication 2.4GHz wireless
Services
Self-consumption, time of use, Compensation system / partial billing
of energy
Monitoring
Monitoring options with Enlighten Manager and MyEnlighten; API Integration
Compliance
UN 38.3, EN 62040.1, VDE AR-N 4105:2018
EMI: CE, EFT, ESD, overvoltage, drops and interruptions, CRF
Cell module: IEC 62619:2017, UN 38.3, UL1973, UL9540A
Inverters: EN 62109-1, EN 62109-2, EN 62909-1:2017, EN 50549-1:2019
Limti warranty²
Limited Warranty2
>80% of capacity, up to 10 years or 3,600 cycles3
1. AC to battery to AC at 50% rated power
2. Whichever is earlier. Restrictions apply.
3. A cycle corresponds to a full charge/discharge rate.
IQBATTERY-5P-3P-INT
