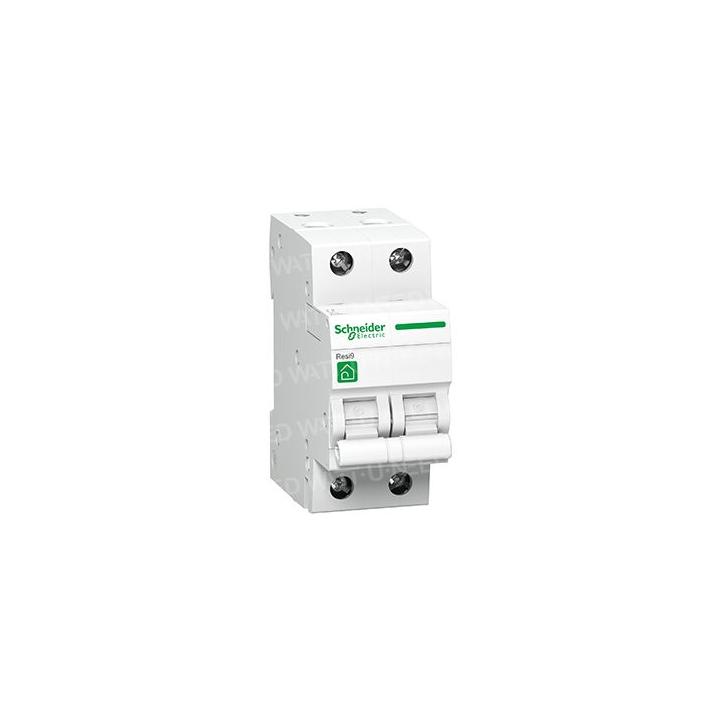

Schneider Breaker mono 10A
Schneider Breaker mono 10A

Schneider mono 10A circuit breaker

21,10 €
Inklusive Steuer
R9F64210
0712971133228

• Schneider 10A Breaker
• RESI9
• 2 pole
• 400V



In view of the current situation concerning the reordering of products and the uncertain deadlines communicated by our suppliers, we cannot guarantee to supply you with a Schneider brand circuit breaker.
However, as an alternative, we can provide you with a Hager circuit breaker with the same characteristics.



Kommentare (0)

Aktuell keine Kunden-Kommentare



Main
range Resi9
Product name Resi9 MCB
Product or component type Miniature circuit breaker
Application of the device distribution
Description of the poles 2P
Number of poles protected 2
[In] assigned current job 10 A to 30 degrees Celsius
Type of network Ac.
Trigger technology Thermal-magnetic
Trigger curve c
Cutting power 3000 A Icn to 230 V c.a. 50/60 Hz compliant with EN/IEC 60898-1
Standards EN/IEC 60898-1
Product certifications CEBEC
Complementary
Frequency of network 50/60 Hz
[Ue] assigned job tension 230 V AC 50/60 Hz
Magnetic trigger limit 5...10 x In
Limitation class 3 according to EN/IEC 60898-1
[Ui] assigned isolated tension 440 V AC 50/60 Hz
[Uimp] assigned tension of holding to shocks 4 kV
Type of command Rocking key
Local signage IndicationACTIVE/DEACTIVE
How to install In clips
Mounting support Rail DIN
Distribution block and comb compatibility Bottom: bi-connect
No 9 mm 4
height 85 mm
width 36 mm
depth 75 mm
Product weight 0.217 kg
colour White
Mechanical lifespan 20,000 cycle
Electric lifespan 10000 cycle c.a. 50/60 Hz compliant with EN/IEC 60898-1
Description of optional locks Cadenas on OFF position
Connection mode Tunnel-type terminals (bottom) - < 16 mm2 - flexible
Tunnel-type terminals (bottom) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 16 mm2 - flexible
Tightening torque 2 N.m
environment
Degree of IP protection IP20 compliant with IEC 60529
IP40 (modular box) compliant with IEC 60529
Pollution level 2 EN/IEC 60898-1
Surge category Iii
Operating temperature -20 to 60 degrees Celsius
Room temperature for storage -40 to 80 degrees Celsius
R9F64210

Datenblatt

Art des elektrischen Materials
Disjoncteur

Spezifische Referenzen

upc
712971133228
ean13
0712971133228
