Wind turbine Newmeil x-600

Newmeil

1 280,60 € tax incl.

Wind turbine Newmeil 600 W 24V or 48V; on 48V DC network



  • Supplied with its charge regulator
  • Silent and vibration-free
  • Lightweight and compact
  • Perfect for small appliances

Our products are designed to achieve high quality standards while being affordable for everyone.



Disponible sur commande

More details

More info

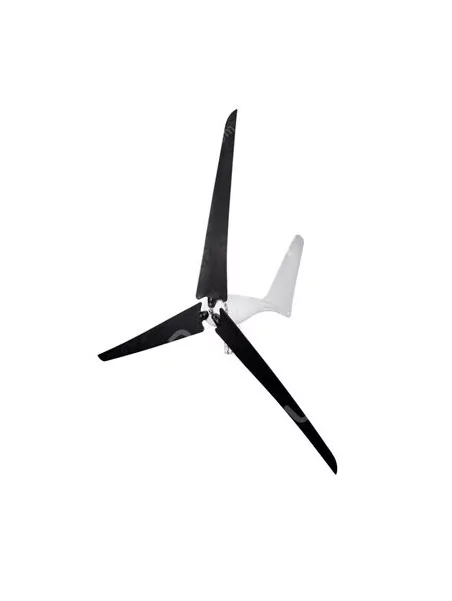

Wind turbine Newmeil X-600







Our products are designed to achieve high quality standards while being affordable for everyone.

This wind turbine was created to provide energy for each installation.

Thanks to innovative technologies, this model is ideally suited for housing, boating or any device requiring emergency power. The X600 wind turbine is the perfect compromise to start your own power generation.

The Newmeil X-600 turbine is supplied with its charge regulator.








Characteristics



※ Low noise and vibration
※ Low wind speed at start up
※ High efficiency at low wind speed
※ Nominal wattage 600W
※ Light weight
※ Carbon fiber composite blades
※ Aerodynamic design of the bodywork
※ Anti-rust, corrosion-resistant and long-life
※ Easy to install and maintenance free
※ 3 years warranty




Characteristics



Wind turbine
model600
Type of wind turbineHorizontal axis, upstream of the wind
Rotor diameter1850 mm
Net weight15 kg
Diameter of the Tower48-50 mm
Number of blades 3
Blade materialsCarbon fibre reinforced plastic
Mass of the blades 660g/PCs
Body materialDie cast aluminium
Body constructionFully in one
Product finishThermo powder coating base clamp
Connecting the Towerbolt clamp
Start wind speed2m/s
Reduced wind speed2.5 m/s
Survival wind speed 50m/s
Nominal power600W (12.5 m/s)
Nominal rotor speed800 RPM
Maximum power700W (15m/s)
Working temperature range-40 °c to 60 °c
Product life span (years)15
The sound pressure levelLAeq 33dB @ 5M/s @ 5M/s @ 5M behind the rotor (air density of 1.225 kg/m³)
generator Three-phase power generator of synchronous type neodymium-iron-bore magnets
Nominal output voltage
Braking systemOff-grid 24V or 48V DC; on 48V DC network
Lace controlAerodynamic and aerodynamic braking system at speed higher than the speed of the blade
Steering control360 degrees free
Steering control
Rear tracing
Control systemBraking mode
Recommended systemcontrol out network: lead acid battery with deep discharge safety
Note: at the speed of the starting wind, it produces electricity, but it requires a higher wind speed to charge the battery or transfer it over the network.

Specifications

Wind TurbinWith
Voltage24V/48V
Power600 VA
