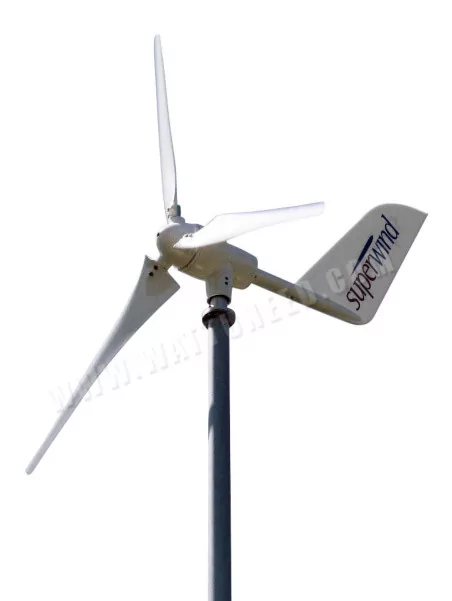

Superwind 1250W 24V wind turbine

Wind turbine 1250W 24V made in Germany

1250W SUPERWIND wind

Superwind 1250 is an advanced turbine of the most high quality which will produce the energy way reliable for many years. Reliable operation depends on not only the quality of the product, but also toa montage and i anstallation says including a correct wiring. (there is also a 48V - see the 48V version);

The Superwind has been designed to achieve a optimal output power
for a wide range of wind speeds, while providing a maximum security in a storm.

Application domain

The electric energy produced by the Superwind 1250 can be used to charge batteries and/or power directly from 24 VDC devices. Current devices alternative are powered by an inverter in option. There are a wide range of 24 VDC or 48 VDC high-quality equipment.

Examples: lamps to saving energy, refrigerators, freezers, pumps water, fans, electronics, televisions, radios and navigation, etc.

The Superwind 1250 is also fully compatible with facilities using the solar panels. In many places, wind energy and solar energy complement. A dual system Solar charge / wind equipped Superwind 1250 allows you tooptimize the sources of energy available, while requiring a minimum battery capacity.

Batteries

The most common application of the Superwind is the the battery charge. For adequate protection of the battery, a suitable charge controller is required. The charge controller allows the Superwind to operate automatically and completely unattended. With a suitable charge controller, the batteries are charged in a way optimal and protected against overload and damage, which increases also their life.

Included: charge controller Morningstar Tristar 60 24v

The TriStar™ Morningstar is a controller three functions who's got one reliable support solar battery, one control load or Regulation the diversion. It is rated at 45 or 60 amps, two to 12-48 volts, and has a counter as an option, a remote meter and a remote temperature sensor.

Technical characteristics

Dimensions
