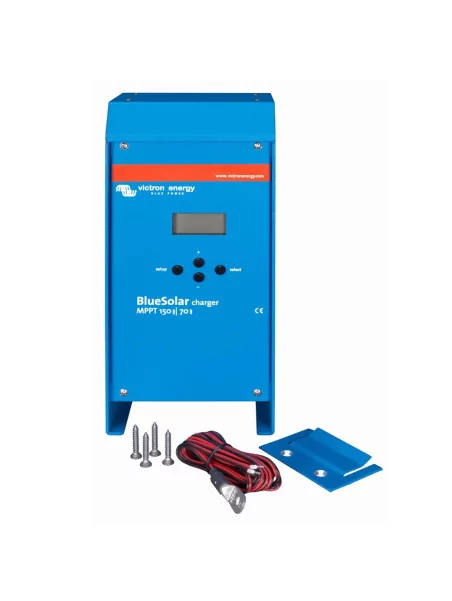

MPPT Victron BlueSolar 150 / 70 - 150/85
More info
Voltage PV up to 150 V
Charge controllers BlueSolar {linkpopup id = 'mppt'}, 150/70 and 150/85 will charge a battery of lower nominal voltage from a field of rated voltage PV panels higher.
The controller automatically adapts to voltage nominal battery of 12, 24, 36 or 48 v.
Ultra fast location of the maximum power point ({linkpopup id = 'mppt'} - Maximum Power Point Tracking).
Especially in the case of cloudy sky, when the light intensity is constantly changing, a high-speed controller {linkpopup id = 'mppt'} will improve the collection of energy up to 30% load {linkpopup id = 'pwm'} (modulation controllers pulse duration), and up to 10 controllers {linkpopup id = 'mppt'} % slower.
Advanced detection of the point of maximum power in shady conditions
In shady conditions, two maximum power points or more may be present on the voltage-power curvedence. {Linkpopup id = 'mppt'} conventional tend to hang on a local MPP, which may not be the optimal MPP. The BlueSolar innovative algorithm will always maximize the collection of energy blocking on the optimal MPP.
Exceptional conversion efficiency
No fan. Maximum efficiency over 98%. Total output current up to 40 ° C (104 ° F).
Flexible load algorithm
- Several pre-programmed algorithms are available. A programmable algorithm.
- Manual or automatic equalization.
- Battery temperature sensor.
- Optional battery voltage probe.
Programmable auxiliary relay
To purposes "alarm or starting of a generator
Electronic protection
- Protection against overheating and the power in case of high temperature reduction.
- Protection against reverse polarity PV and PV circuits.
- Protection against the inversion of current PV.
VE. Direct Bluetooth Smart dongle
Technical characteristics
Charge controller BlueSolar | MPPT 150/70 | MPPT 150/85 |
Battery voltage | 12/24/36/48 v Automatic Selection | |
Maximum battery current | 70A @ 40 ° C (104 ° F) | 85A @ 40 ° C (104 ° F) |
The solar generator maximum input power | 12V: 1000W / 24V: 2000W. 36V: 3000W / 48V: 4000W | 12V: 1200W / 24V: 2400W. 36V: 3600W / 48V: 4850W (*) |
Maximum PV open circuit voltage | 150 v maximum under cold conditions | |
Minimum PV voltage | Battery voltage + 7V to start | Battery voltage + 7V to start + 2V operation |
Emergency power consumption | 12V: 0.55 W / 24 V: 0.75 W / 36 V: 0.90 W / 48 V: 1.00 W | |
Full load efficiency | 12 V: 95% / 24 V: 96.5% / 36 V: 97% / 48 V: 97.5% | |
Absorption charge | 14.4 / 28.8 / 43.2 / 57.6 V | |
Load float | 13.7 / 27.4 / 41.1 / 54.8 V | |
Equalizing charge | 15.0 / 30.0 / 45 / 60 V | |
Battery remote temperature sensor | Yes | |
Default configuration of temperature compensation | -2.7 mV / ° C by 2 V battery cell | |
Programmable relay | DPST rated CA: 240 VCA/4 A power rating: 4A up to 35 VDC, 1A up to 60 VDC | |
Communication port | VE. Can: Two RJ45 connectors in parallel, NMEA2000 Protocol | |
Parallel operation | Yes, with VE. Can. Max 25 products in parallel | |
Operating temperature | -40 ° C to 60 ° C with reduced current output above 40 ° c. | |
Cooling | Natural convection | Assisted by silent fan |
Humidity (without condensation) | Max 95% | |
Size of the Terminal | 35 mm² / AWG10 | |
Material and color | Aluminum, blue RAL 5012 | |
Protection class | IP20 | |
Weight | 4.2 kg | |
Dimensions (h x w x d) | 350 x 160 x 135 mm | |
Editing | Vertical wall mounting, only inside | |
Security | EN60335-1 | |
EMC | EN61000-6-1, EN61000-6-3 | |
* If a higher solar power is connected, the controller will limit the input to the defined maximum power. |
