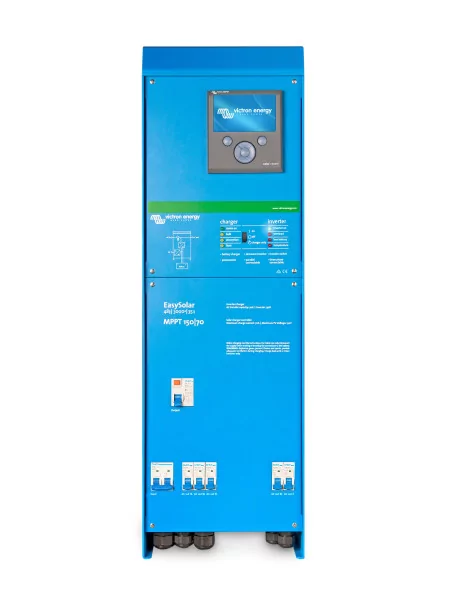

Victron EasySolar 24V / 48V - 70A - 3000VA MPPT 150/70

Victron energy

2 450,25 € tax incl.

Options

Charge controller and inverter/charger Victron Easysolar 24V/48V - 3000VA.

The EasySolar combines

  • a MPPT 150/70 solar charge controller,
  • an inverter/charger
  • a digital display
  • and AC distribution in one enclosure.

The product is easy to install, with a minimum of wiring.

Please choose your model in the options.

logo victron energy

More details

More info

Victron

" Charge controller and inverter/charger Victron Easysolar 3000VA - 24/48V "




The all-in-one solar power solution :

The EasySolar combines
- a MPPT solar charge controller BlueSolar,
- an inverter/charger,
- an AC distribution
- a digital display provided by the Color Control GX
The product is easy to install, with a minimum of wiring.

Load controller  mppt

A {linkpopup id = 'mppt'} Blue Solar 150/70
Up to 3 chains of solar panels can be connected via 3 connection sets {linkpopup id = 'mc4'}

Converter / charger

MultiPlus Compact 12/1600/70
The Charge Controller and the MultiPlus share the DC battery cables (included). The batteries are either charged via solar power (BlueSolar {linkpopup id = 'mppt'}) or charged via the public network or a generator via the converter / charger. Both modes can be switched on or operated at the same time.

Digital display

Color Control
The GX color control control panel provides intuitive control and allows you to monitor all the devices to which it is connected. It is compatible with the entire Victron range.
It gives priority to the battery charge by the MPPT load controller and connect to the internet, allowing for remote monitoring and control.

PowerAssist

The unique PowerAssist technology protects the power supply to the network or generator against the risk of overload by adding additional power converter if required.

Distribution AC

The AC distribution is composed of an RCD (30 mA / 16 A) and four AC outputs protected by two 10 A and two 16 A circuit breakers. A 16 A output is controlled by the AC input: it will not be Only if an AC source is available.

Technical datas




EasySolarEasySolar 24/3000/70-50EasySolar 24/3000/70-50
INVERTER/CHARGER
Transfer switch50 A50 A
INVERTER
OutputOutput voltage: 230VAC ± 2%
Frequency: 50 Hz ± 0,1%
Input voltage range19 - 33 V38 - 66 V
Cont. output power at 25°C (3)3000 VA / 2400 W3000VA / 2400W
Cont. output power at 40°C2200 W2200W
Peak power6000 W6000W
Maximum efficiency94%95%
Zero load power20 W25 W
Zero load power in search mode10 W12 W
CHARGER
AC InputInput voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption'28,8 V57,6V
Charge voltage 'float'27,6 V55,2V
Storage mode26,4 V52,8V
Charge current70 A35A
Battery temperature sensoryes
Programmable relayyes
SOLAR CHARGE CONTROLLER
ModelMPPT 150/70MPPT 150/70-MC4
Maximum output current70 A70A
Maximum PV power2000W4000W
Maximum PV open circuit voltage150V
Maximum efficiency98%
Self-consumption10mA
Charge voltage 'absorption', default setting28,8V57,6V
Charge voltage 'float', default setting27,6V55,2V
Charge algorithmmulti-stage adaptive
Temperature compensation-16 mV / °C-32 mV / °C
Protectiona-g
CHARACTERISTICS
Operating temp. range-40 to +65°C (fan assisted cooling)
Humidity (non-condensing)max 95%
BOITIER
Material & Colouraluminium (blue RAL 5012)
Protection categoryIP 21
Weight28 kg
Dimensions (hxwxd)810 x 258 x 218 mm
Battery-connectionFour M8 bolts (2 plus and 2 minus connections)
PV connectionTwo sets of MC4 PV connectors
230 V AC-connectionScrew terminals 13 mm2 (6 AWG)



Victron Easysolar Configuration Softwares for


Softwares are available to configure and manage the system efficiently :



Specifications

Charge power70A
Nombre de MPPT1 MPPT
