This Battery Combiner Kit is for adding a 2nd or 3rd battery system in your car, boat, RV or any other vehicle. It utilizes the simplest and most advanced technology to keep all your batteries charged using the engine’s electrical system, but isolates the starting battery when charging ceases so you never get stranded.

logo victron energy

More info

More details

108,90 € tax incl.

Add to cart

By buying this product you can collect up to 10 loyalty points. Your cart will total 10 points that can be converted into a voucher of 3,00 €.


More info

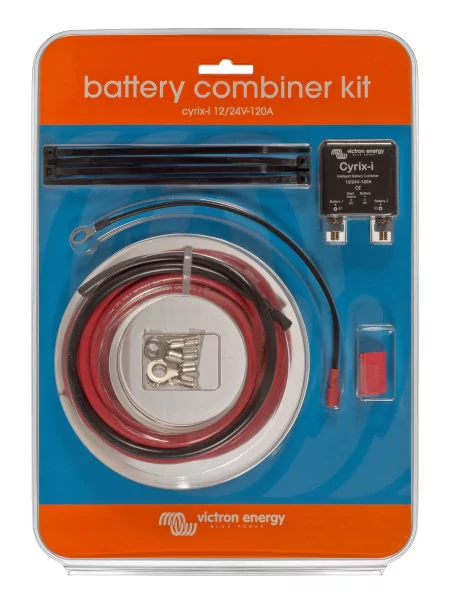

Kit for adding a 2nd or 3rd battery system in your car, boat, RV or whatever you wish.
It utilizes the simplest and most advanced  technology to keep all your batteries charged using the engine’s electrical system, but isolates the starting battery when charging ceases so you never get stranded.

The Cyrix-i 12/24-120 is a bidirectional voltage sensitive relay. It will therefore also engage if for example the accessory battery is being charged by a battery charger.

Intelligent battery monitoring prevents cycling.

The software of the Cyrix does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend.

Emergency parallel feature.

An emergency start push button can be wired to the “start assist” connection (85) if required. The relay will engage during 30 seconds after “start assist” has been momentarily connected to the battery plus. Alternatively, a parallel connect switch can be used to engage the relay as long as the switch remains closed.

Easy to install.

There is no need to cut into any factory wiring that may void the manufacturer's warranty of your boat or vehicle.
