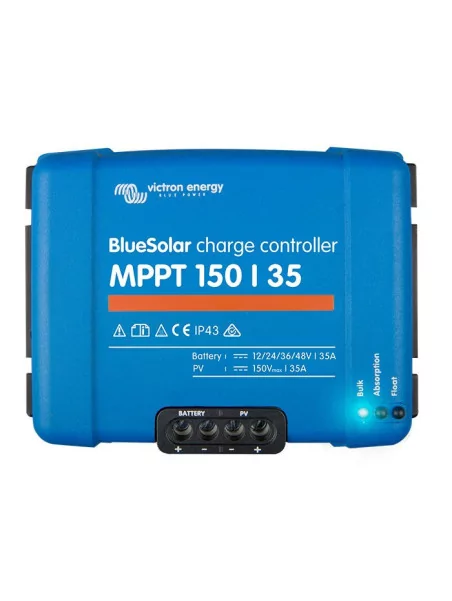

MPPT Victron BlueSolar 150/35

Victron energy

363,00 € tax incl.

Charge controllers Victron BlueSolar MPPT 12V / 24V / 48V: 150/35.

Regulators solar MPPT, more effective than the PWM, will optimize the voltage of solar panels to maximize the resulting power.




This product is no longer available for sale.

You can find its equivalent by clicking here.



logo victron energy



More details

More info



regulateur de charge victron


Charge controllers BlueSolar can charge a battery of lower nominal voltage from a field of higher nominal voltage PV panels. Controllers will automatically adapt to a voltage of battery rated to 12, 24, 36 or 48 V.



Ultra fast location of the maximum power point ({linkpopup id = 'mppt'} - Maximum Power Point Tracking).


Especially in the case of cloudy sky, when the light intensity is constantly changing, a high-speed controller {linkpopup id = 'mppt'} will improve the collection of energy up to 30% load {linkpopup id = 'pwm'} (modulation controllers pulse duration), and up to 10 controllers {linkpopup id = 'mppt'} % slower.



Advanced detection of the point of maximum power in shady conditions


In shady conditions, two maximum power points or more may be present on the voltage-power curve. {Linkpopup id = 'mppt'} conventional tend to hang on a local MPP, which may not be the optimal MPP. The BlueSolar innovative algorithm will always maximize energy recovery blocking on the optimal MPP.



Exceptional conversion efficiency


No fan. Maximum efficiency over 98%. Total output current up to 40 ° C (104 ° F).



Flexible load algorithm


Eight pre-programmed, selectable algorithms with a rotary switch (see the manual for more details).



Electronic protection


Protection against overheating and the power in case of high temperature reduction. Protection against reverse polarity PV and PV circuits.
Protection against the inversion of current PV.



Internal temperature probe


It compensates the tensions of load absorption and float depending on the temperature.



VE. Direct Bluetooth Smart dongle



Technical characteristics

Charge controller BlueSolar  MPPT 150/35
Voltage of the battery (Automatic Selection)12/24/36/48 V
Maximum battery current 35A
Maximum HP, 12V power 500W
Maximum PV power, 24V 1000W
Maximum PV power, 36V 1500W
Maximum PV power, 48V 2000W
Maximum PV open circuit voltage 150V
Effectiveness of crete 98%
Own consumption 0, 01mA
"Absorption" voltage load
14.4 / 28.8 / 43.2 / 57.6
'Float' of load voltage 13.8 / 27.6 / 41.4 / 55.2 V
Algorithm of load Adaptive multiple steps
Temperature compensation -16mV / ° C RESP.. -32mV / ° C
ProtectionInversion of polarity (fuse) battery short circuit output - overheating
Operating temperature -30 to + 60 ° C (nominal power output up to 40 ° C)
Humidity (without condensation)95%
Data communication port VE. Direct
Case
Color Blue
Power terminals 13 mm² / AWG6
Degree of protection IP43, IP22
Weight 1.25 kg
Dimensions (h x w x d) 130 x 186 x 70 mm





Specifications

Charge power35A
Voltage12V
MPPT/PWMMPPT
Maximum PV input voltage150 V
Max. current35 A
