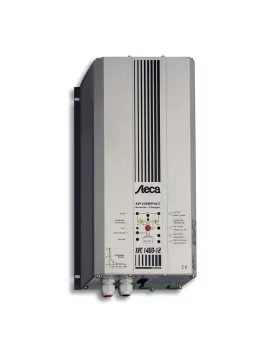

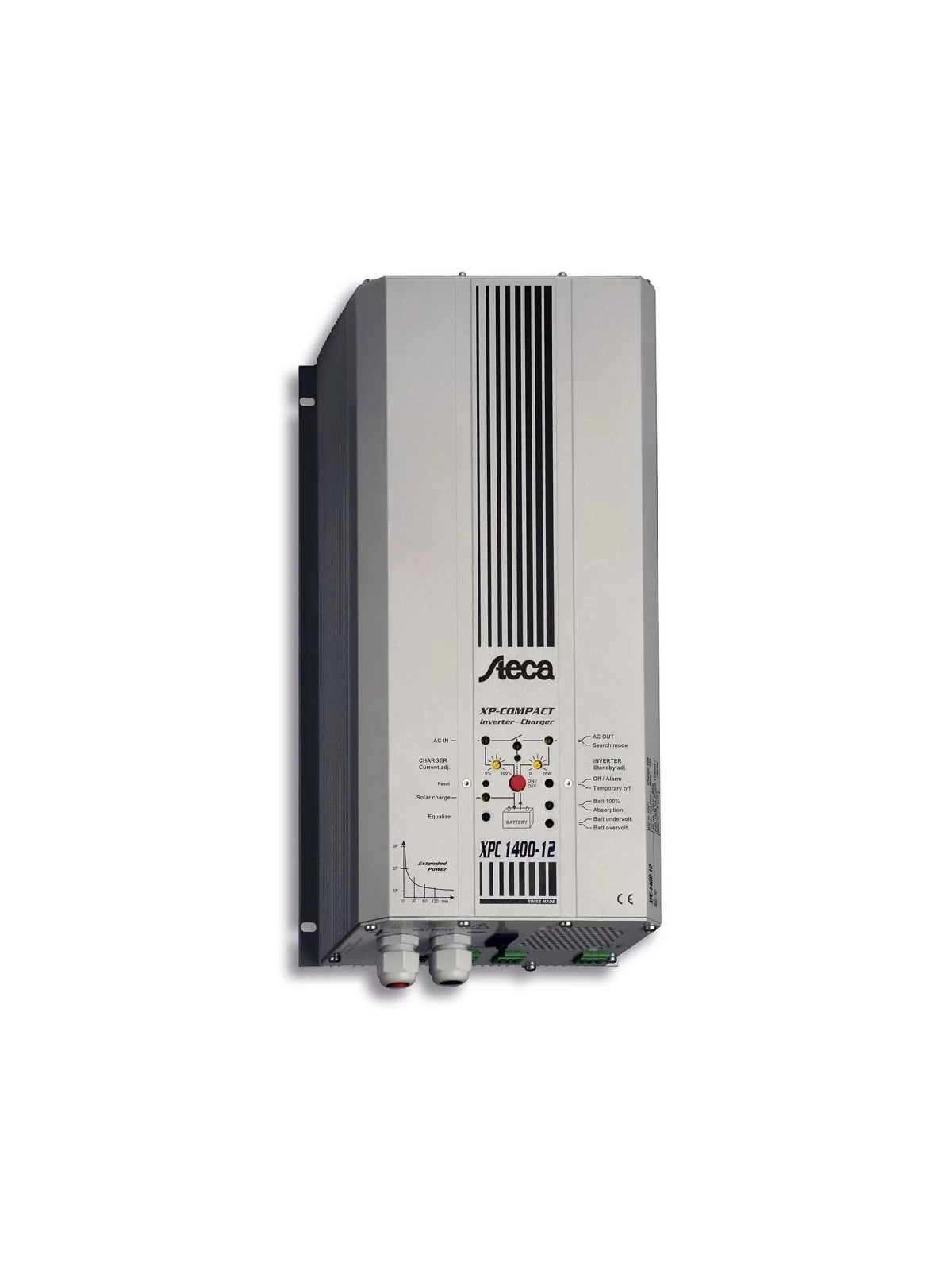

Steca XPC inverter from 1.1kVA to 1.6kVA

"High-end pure sinus inverter with low power consumption".

Steca XPC series devices combine very high overload capacity with the ability to control even the most critical consumers.

Convincing device protection and low power consumption are other important features of this high-end inverter. Steca XPC devices combine a sine wave inverter, a four-position battery charger and a transmission system in a single device. This makes them ideal for hybrid systems. The integrated additional auxiliary contact can be used, for example, to switch a surplus load on and off, or to start a diesel generator to recharge the battery.

---

Description

Product features

• Pure sinusoidal voltage
• Excellent overload capacity
• Optimum battery protection
• Integrated adjustable battery charger
• Automatic consumer recognition
• Very high reliability
• Can be used as an emergency system or uninterruptible power supply (UPS)
• Multifunctional contact
• Fast switching relay

---

Electronic protection functions

• Deep discharge protection
• Disconnection in the event of battery overvoltage
• Overtemperature and overload protection
• Short-circuit protection
• Reverse polarity protection via internal fuse
• Acoustic alarm in the event of deep discharge or overheating

---

Displays

• 7 LEDs indicate operating states

  ---

Control

• Main switch
• Adjustable load recognition
• Key programming

---

Certificates

• Complies with European standards (CE)
• Complies with RoHS directive

Characterization of operating performance

voltage

12V

Continuous power

,100 VA

Power 30 min.

400 VA

Power 5 sec.

,300 VA

Max. efficiency

4%

Own consumption standby / ON

,

6

W / 4 W

Input

Input voltage

adjustable : 150 V AC ...

2

30 V AC

Adjustable load current

A .

45 A

Max. current

of transfer system

16 A

Transfer relay switching time

<

4

0 ms

Battery voltage

.5 V ...

16 V

Battery monitoring

, HVD,

c harging process for maintenance of final charging voltage and adjustable equalization voltage

AC output

Mains voltage

230 V AC +0 / -10% (pure sine curve)

Mains frequency

50 Hz +/-0,

0

5 % (quartz-controlled)

Consumer recognition (standby)

adjustable : 1 W ...

2

5 W

Operating conditions

Ambient temperature

°C

+

55 °C

Installation and construction

Accumulator cable length

165

c

m

Degree of protection

IP 20 / with optional top cover :

I

P 22

Dimensions (X x Y x Z)

215 x 410 x 124 mm

Weight

xml-ph-0035@deepl.interna7 kg

Option

The entire Steca XPC range is available as an option (in the menu above).

1400-12, 2200-24, 2200-48

(Datasheet download)
