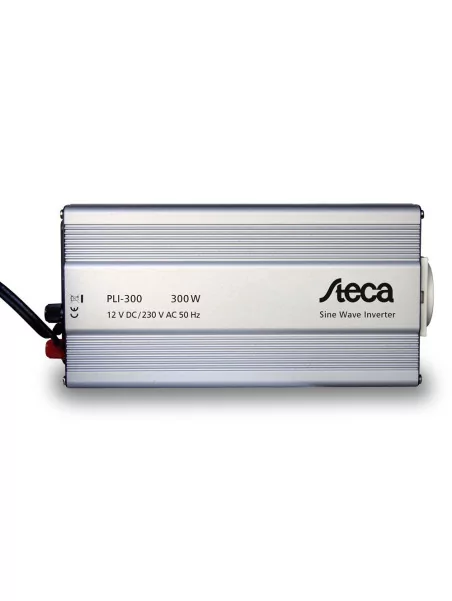

Steca 300W Pur sine convertor

Steca 300W Pur sine convertor View full size

The Steca PLI-300 is a low-cost 300 W sine wave inverter for supplying small AC appliances.



More info

More details

199,00 €

Add to cart

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of 5,70 €.


More info

" Made in Germany pure sine convertor "



The Steca PLI-300 is a low-cost 300 W sine wave inverter for supplying small AC appliances. It has a manual on/off switch allowing the inverter to be switched off to reduce own consumption. The device is especially suitable for use in solar home systems where manually switched small AC appliances are occasionally used in addition to the normal DC appliances. The device is supplied with DC cables and has a European AC power socket.

Description

Product features

  • True sine wave voltage
  • Optimal battery protection
  • Protective insulation according to protection class II


Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Overtemperature and overload protection
  • Short circuit protection on the AC output side


Displays

  • 2 LEDs show operating states


Operation

  • Main switch


Certificates

  • Compliant with European Standards (CE)





Characterisation of the operating performance

System voltage

12V

Continuous power

300VA

Power 30 min.

300VA

Power 5 sec.

350VA

Power asymmetric

250VA

Max. efficiency

85%

Own consumption standby / ON

0,5 W / 9 W

DC input side

Battery voltage

10,5 V ... 15 V

Reconnection voltage (LVR)

12,5 V

Deep discharge protection (LVD)

10,5 V

AC output side

Output voltage

230 V AC +/-10 %

Output frequency

50 Hz

Safety

Protection class

II (double insulated)

Operating conditions

Ambient temperature

-20 °C ... +50 °C

Fitting and construction

AC output side connection

European plug

Cable cross-section battery

4 mm2 (AWG 12)

Degree of protection

IP 20

Dimensions (X x Y x Z)

245 x 117 x 62 mm

Weight

1,2 kg

Specifications

Voltage12V
Power300 VA
