Solar Pumping System 1,5KWp

Wattuneed

5 240,36 € tax incl.

Options

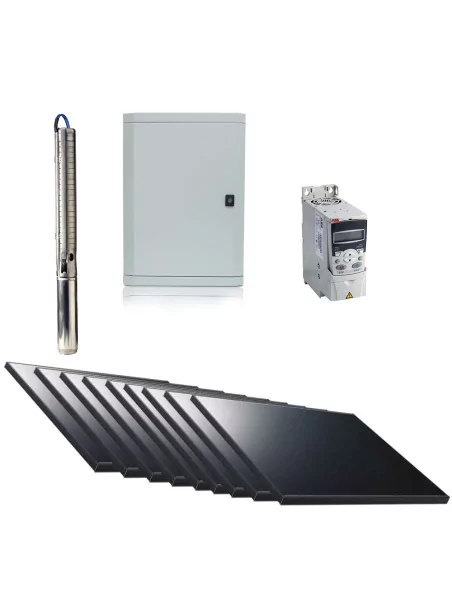

Solar Pumping System 1,5KWp

- 9 Solar modules 170Wp
- 1x three-phases (3x230V) water pump Grundfos 1.5kW
- Power and safety box
- Solar cables

More details

More info

" Solar Pumping System 1,5KWp "



Our pumping systems are pumping up professisonnels 6m³ a day at a depth of 170m or 35 cubic meters at a depth of 40 meters (depending on the sunlight). Contact us for accurate sizing.

 Composition

  • 1 x 1.5kW Grundfos submersible pump range SP:
    • SP3A-25 : 1.4m³/hour at 140 meters

    • SP5A-17 : 3.8m³/hour at 80meters

    • SP7A-12 : 4.5m³ /hour at 65 meters

  •     9 x Solar panel amorphous - 170Wp
  •     3 x 10 meter solar cable
  •     1 x power and safety box

 The pump is powered by solar panels (via the power / processing package ): it starts to work the morning the first rays to stop the evening with the sunset . The fresh water is stored in a tank, a pool or a water tower.

Accessories


A stop sensor (optional) allows to stop pumping water when the tank is filled .
Depending on the depth of immersion of the pump , the length of the submerged electric cable must be determined.
The choice of the submersible pump depends on several parameters : location, lift height , everyday, losses, ...















Grundfos Pumps

Grundfos pumps are borehole pumps with very high output flow medium and small diameter . They are designed to draw water drilling , underground rivers , as well as tanks or rainwater collectors for home use , garden, agriculture ( automatic watering, irrigation ), but also industrial pumps ... stainless steel is a very good corrosion resistance . They allow corrosive water pumping and have good resistance to sand and abrasives, protection against engine breakdown and easy maintenance . It must be installed so that the suction strainer is completely submerged . It can be installed both vertically and horizontally with cooling jacket. Choosing a pump model depends on : the total head (including pressure losses ) , the required daily volume and location

Material: stainless steel AISI 304

Max. pumped liquid : 40 ° C

Basic Cable : 1.7m

Diameter : 4 inches





Solar Frontier 170Wc

Characteristics :

  • Warranty: 5 year modules.
  • High efficiency even in low light
  • No Cadmium: Environmentally friendly panel
  • Maximum diameter of the hailstone: 25 mm
  • Robust design
  • Performances little affected by temperatures variation or shading
  • resistant to saltwater corrosion
  • resistant to corrosion due to ammonia
  • Resistant to PID effect



Guaranteed yield : 10 years at 90%

Guaranteed yield : 25 years at 80%

Specifications





TypeAmorphous
Nominal Pm165wp
Tolerance on Pm+/-5%
Open circuit voltage (Voc)110 V
Voltage at nominal power (Vmp)85,5 V
Imp1,93 A
Isc2.2 A
Efficiency13.4 %
Dimensions1257 X 977 mm
Weight20 Kg
Thikness35 mm
Materialglass
FrameBlack anodised alu frame
Made inChina




Power and safety box

The box is completely pre-wired and delivered " plug and play" . It equipped with MC4 connectors allowing easy connection of photovoltaic panels. The box contientégalement a switch to turn the power supplied by the solar panels.

An inverter converts the DC electricity produced by the solar panels into alternating current. A circuit breaker protects the motor power supply from overcharge and overcurrent .

Specifications

Voltage12V
Batterykit without battery
