Solar Pumping System 11 kW

Solar Pumping System 11kW

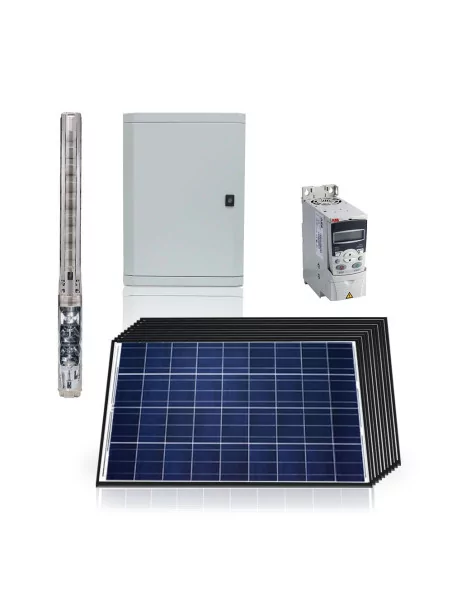

Composition :

 - Single-phase water pump Grundfos 11kW
 - 48 Solar modules 265Wp
 - Power and safety box
 - Solar cable

More info

More details

22 605,17 €

Options

Add to cart

By buying this product you can collect up to 2357 loyalty points. Your cart will total 2357 points that can be converted into a voucher of 707,10 €.


More info

" Solar Pumping System 11 kW "



Our pumping systems are pumping up professisonnels 6m³ a day at a depth of 170m or 35 cubic meters at a depth of 40 meters (depending on the sunlight). Contact us for accurate sizing.

 Composition

  • 1 x 11kW Grundfos submersible pump range SP:
    • SP17-18 : Typical lift height: 120m to 180m
    • SP30-13 : Typical lift height: 80m to 115m
    • SP46-8C : Typical lift height: 55m to 80m
    • SP60-6   : Typical lift height: 30m to 55m
  • 48 x polycrystalline photovoltaic panels 265Wc
  • 1 x 10 meter solar cable
  • 1 x power and safety box WU-11T



The pump is powered by solar panels (via the power / processing package ): it starts to work the morning the first rays to stop the evening with the sunset . The fresh water is stored in a tank, a pool or a water tower.

Accessories

A stop sensor (optional) allows to stop pumping water when the tank is filled .
Depending on the depth of immersion of the pump , the length of the submerged electric cable must be determined.
The choice of the submersible pump depends on several parameters : location, lift height , everyday, losses, ...















Grundfos Pumps

Grundfos pumps are borehole pumps with very high output flow medium and small diameter . They are designed to draw water drilling , underground rivers , as well as tanks or rainwater collectors for home use , garden, agriculture ( automatic watering, irrigation ), but also industrial pumps ... stainless steel is a very good corrosion resistance . They allow corrosive water pumping and have good resistance to sand and abrasives, protection against engine breakdown and easy maintenance . It must be installed so that the suction strainer is completely submerged . It can be installed both vertically and horizontally with cooling jacket. Choosing a pump model depends on : the total head (including pressure losses ) , the required daily volume and location

Material: stainless steel AISI 304

Max. pumped liquid : 40 ° C

Basic Cable : 1.7m

Diameter : 4 inches




260Wp panel Benq

48 BenQ 265Wp polycrystalline panel




Nominal power: 265Wp

This model is a panel composed of 60 polycrystalline silicon cells with high yield.

- The frame of this solar panel is made of anodized aluminum

- Polycrystalline module



  • Lightweight anodized aluminum frame and reinforced
  • Safetyand anti-Reflection coated glass 3.2mm thick (tempered + patterned)
  • Modul weight : 18,5kg
  • IP-67 Rated Junction Box : Advanced water and dust proof level
  • Resistance to Salt Corrosion and Humidity



Cells60 multicrystalline solar cells
Max Power265Wp
Tolerance0-+3
Open circuit voltage (Voc)37,70V
Short circuit current (Isc)8,83A
Max power voltage (Vm)31,20V
Max power current (Im)8,34A
Frame thickness40 mm
FrameAluminium anodized - black
Safety glass3,2 mm
Dimensions1639 X 983 X 40 mm
Weight18,5kg
Made inEurope







Power and safety box

The box is completely pre-wired and delivered " plug and play" . It equipped with MC4 connectors allowing easy connection of photovoltaic panels. The box contientégalement a switch to turn the power supplied by the solar panels.

An inverter converts the DC electricity produced by the solar panels into alternating current. A circuit breaker protects the motor power supply from overcharge and overcurrent.

Specifications

Voltage12V
Batterykit without battery
