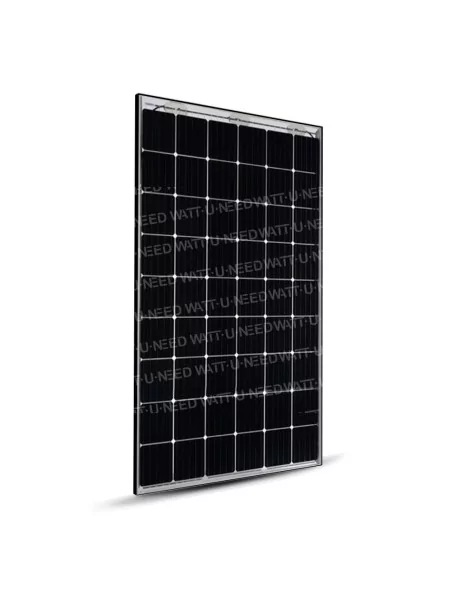

JA SOLAR 320Wc Mono Solar Panel View full size

JA SOLAR 320Wc Mono Solar Panel

JA Solar

167,60 € tax incl.

These assembled double-glazed modules composed with bifacial PERCIUM cells have the ability to convert reflective light rays on their rear face in addition to what is produced by the front, making them the most efficient modules and most cost-effective in terms of solar power generation and tolerance to harsh environments and extreme weather conditions.

stock quantity : 4

More details

More info

These assembled double-glazed modules composed with bifacial PERCIUM cells have the ability to convert reflective light rays on their rear face in addition to what is produced by the front, making them the most efficient modules and most cost-effective in terms of solar power generation and tolerance to harsh environments and extreme weather conditions.


Characteristics



3%-15% more energy production;

Higher performance with low irradiance;

Framed design, ease of transport and installation;

Excellent temperature dependent performance.


Current-tension curve

Tension curve

Current-tension curve


Size



Specifications

Weight25.4 kg
Panel typeRigids
CellsMonocrystalline
Max. Power - Wp320
Open circuit voltage (Voc)40,8
Short circuit current (Isc)10,18
Max. power current (Imp)9,69 A
Max. power voltage33.49 V
Pannel efficiency19%
Width1000 mm
Height1685 mm
Frame40 mm
Thickness30mm
Protection IPIP 68
