Anti-cut kit WKS EVO III 5 kVA 48V - UPS
This kit includes
- 1XWKS Evo Circle 5.6 kVA 48V hybrid inverter
- 4XUltracel GEL battery 12V 150Ah
- 1XBattery cable 2x25mm2 - 2m
- 1XFuse box for battery - Coffret avec fusible pour batterie -100A
Don't be afraid of power cuts anymore!
This kit takes over immediately in the event of a power cut to ensure the proper functioning of your electrical installation.
Much more economical than a generator set, the anti-cut kit remains the ideal solution against load shedding!
When the network is running, the battery charger keeps the battery park charging. In the event of an outage, the system automatically switches your installation to the batteries.
Then when the network returns, the converter detects it and switches back to it.
The batteries being partially emptied are then recharged automatically, being able to again
deal with possible cuts ...
Composition
- A hybrid inverter WKS 5 kVA 48V
- 4,8,12,16,20 100Ah Gel batteries choose your quantity from the option menu
- The necessary connectors
Number of batteries | Autonomy |
4 batteries | 40 h |
8 batteries | 80 a.m. |
12 batteries | 120 h |
16 batteries | 4 p.m. |
20 batteries | 8 p.m. |
based on a 100 wh device

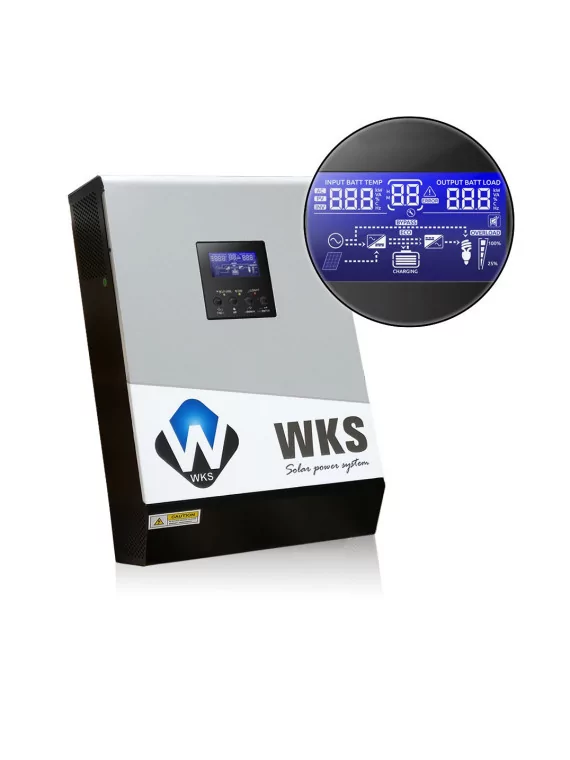

Hybrid inverter WKS Evo Circle 5.6 kVA 48V
• Pure Sine Wave MPPT Solar Inverter
• Customizable status LED ring with RGB lights
• Touch button with 4.3" color LCD screen
• Wide DC input range
• Log events of data stored in the UPS
• Built-in Wi-Fi for mobile monitoring (app available)
• Reserved communication port for BMS
• Parallel operation with up to 9 units
• Possibility of choosing the mode of operation via timer
• Output of 27 Amperes
Model | |
Rated power | 5600VA/5600W |
Entrance | |
AC input voltage | 170-280 VAC (for personal computers) |
Selectable voltage range | 90-280 VAC (for household appliances) |
Frequency range | 50Hz/60Hz (automatic detection) |
Exit | |
AC voltage regulation (Batt. mode) | 230 VAC +/- 5 |
Overload capacity | 5s@>/=150% charge;10s@110%~150% charge; 100ms @ >/=200% charge |
Yield (peak) | 93% |
Transfer time | 10 ms (for personal computers); 20 ms (for household appliances) |
Waveform | Pure sine wave |
AC output voltage | 24.3A |
Battery | |
Battery voltage | 48 VDC |
Floating charging voltage | 54 VDC |
Overload protection | 66 VDC |
Solar charger and AC charger | |
Type of solar charger | MPPT |
Maximum power of the PV generator | 6000W |
MPPT range at operating voltage | 120~430VDC |
Maximum voltage of the open circuit of the PV | 450VDC |
Maximum solar charging current | 120A |
Maximum AC charging current | 120A |
Physics | |
Dimension, D x W x H (mm) | 140x295x468 |
Net weight (kgs) | 11.0 12.0 |
Communication interface | USB/RS232/RS485/Wifi/Dry Contact |
Usage environment | |
Humidity | 5% to 95%a Relative humidity (non-condensing) |
Operating temperature | From -10°C to 50°C |
Storage temperature | From -15°C to 60°C |
Gel Ultracell 12V 150Ah battery
Gel batteries are waterproof batteries: no maintenance, no addition of distilled water. Enhanced safety compared to open lead batteries.
One gel battery can withstand discharge at 50 % and regain its nominal capacity if the unloaded holding time is short. This series has a longer discharge time compared to other batteries. Its special plate design increases battery life and especially in warmer temperatures. A separator within the battery improves its performance. It also has a longer shelf life.
- Rated voltage: 12V
- Capacity: 150Ah
- Size: 485 x 170 x 240 mm
- Weight: 43.5 Kg
Connectors and cables needed
Flexible cable 4mm² battery with battery pods and junctions
Data sheet
- Inverter power
- 5000VA
- Kit output voltage
- 48V
- Type of need
- Uninterruptible power supply
- Battery storage
- With storage
- Wind turbine
- Without
- Mains re-injection
- off-grid
Specific References
- UPC
- 712971127784
- EAN13
- 0712971127784
