Uninterruptible power supply WKS 3 kVA 48V

Summary

See details

By buying this product you can collect up to 157 loyalty points. Your cart will total 157 points that can be converted into a voucher of 47,10 €.


5 / 5 - 1 review
Customize

The choice of the inverter

675.58
Sélectionné

WKS Plus 3kVA 48V hybrid inverter

945.82
Sélectionné

WKS II 5kVA 48V hybrid inverter

1036.2
Sélectionné

UPS hybrid WKS Evo 48V 5kVA

1593.17
Sélectionné

UPS hybrid injection network - storage Multisolar 3kW

2460.33
Sélectionné

UPS hybrid 5kW injection network - storage Multisolar

4208.78
Sélectionné

UPS hybrid 10kW injection network - storage Multisolar

See product

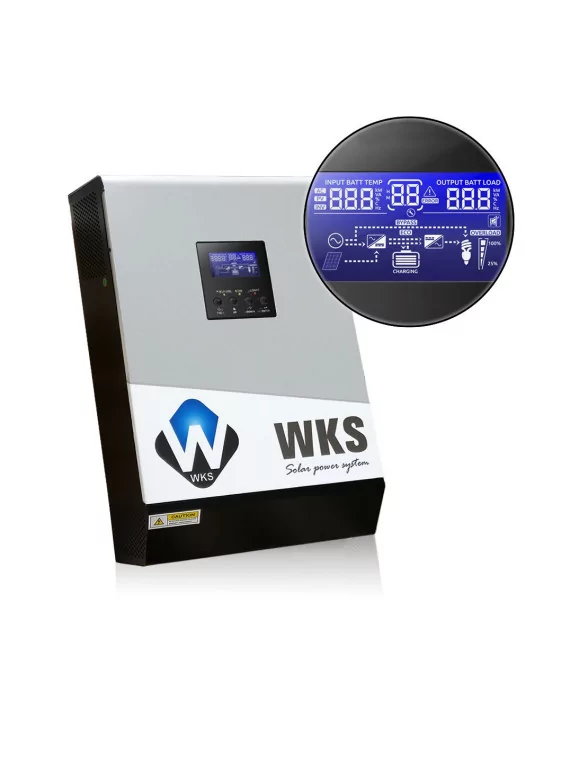

WKS Plus 3kVA 48V hybrid inverter

config

675,58 €

QTT

-
See product
WKS II 5kVA 48V hybrid inverter

config

945,82 €

QTT

-
See product
UPS hybrid WKS Evo 48V 5kVA

config

1 036,20 €

QTT

-
See product
UPS hybrid injection network - storage Multisolar 3kW

config

1 593,17 €

QTT

-
See product
UPS hybrid 5kW injection network - storage Multisolar

config

2 460,33 €

QTT

-
See product
UPS hybrid 10kW injection network - storage Multisolar

config

4 208,78 €

QTT

-

Choice of batteries

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

-
See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

-
See product
Ultracel GEL battery 12V 200Ah

config

409,38 €

QTT

-
See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

-
See product
Battery Lithium Pylontech + 50

config

1 339,00 €

QTT

-
-115,00 €
See product
Lithium Battery Pylontech + 100

config

2 640,00 €

QTT

-
2 755,00 €
-289,50 €
See product
Lithium Battery Pylontech 100

config

3 843,00 €

QTT

-
4 132,50 €
-532,00 €
See product
Lithium Battery Pylontech + 200

config

4 978,00 €

QTT

-
5 510,00 €
-752,50 €
See product
Lithium Battery Pylontech + 250

config

6 135,00 €

QTT

-
6 887,50 €
-1 005,00 €
See product
Lithium Battery Pylontech + 300

config

7 260,00 €

QTT

-
8 265,00 €
-1 288,50 €
See product
Lithium Battery Pylontech + 350

config

8 354,00 €

QTT

-
9 642,50 €
-1 602,00 €
See product
Lithium Battery Pylontech + 400

config

9 418,00 €

QTT

-
11 020,00 €
See product
Battery Hoppecke OPzV solar.power

config

194,70 €

QTT

-
See product
Battery Hoppecke OPzS solar.power

config

154,80 €

QTT

-
See product
12 kWh batterie OPzV 48V battery park

config

4 673,02 €

QTT

-
See product
24 kWh batterie OPzV 48V battery park

config

7 643,33 €

QTT

-
See product
13 kWh batterie OPzS 48V battery park

config

3 717,12 €

QTT

-
See product
20 kWh batterie OPzS 48V battery park

config

5 023,44 €

QTT

-
See product
30 kWh batterie OPzS 48V battery park

config

6 115,82 €

QTT

-
See product
43 kWh batterie OPzS 48V battery park

config

7 322,70 €

QTT

-

Choice of cable

30.3
Sélectionné

Double 25mm² battery cable 2m

9
Sélectionné

25mm² battery cable with pods

See product
Double 25mm² battery cable 2m

config

30,30 €

QTT

-
See product
25mm² battery cable with pods

config

9,00 €

QTT

-

Choice of the protection

See product
Fuse box for battery - Coffret avec fusible pour batterie -100A

config

67,28 €

QTT

-
See product
AC 230V single phase Protection Box

config

131,30 €

QTT

-

Panneaux solaires

148.46
Sélectionné

Solar panel TrinaSolar poly 270Wc

190.42
Sélectionné

Solar panel Jinko Poly 275Wp

173.37
Sélectionné

Solar panel LONGi Solar 300Wp monocrystalline black frame

222.83
Sélectionné

Solar Panel Q.Cells 300Wp mono black

211.3
Sélectionné

BenQ Solar panel 300Wp monocrystalline full black

218.34
Sélectionné

Q.Cells solar panel DUO 310 mono full black

222.83
Sélectionné

Solar Panel Q.Cells DUO 315Wp mono black frame

393.34
Sélectionné

Solar panel Panasonic 330Wp HIT

See product
Solar panel TrinaSolar poly 270Wc

config

148,46 €

QTT

-
See product
Solar panel Jinko Poly 275Wp

config

190,42 €

QTT

-
See product
Solar panel LONGi Solar 300Wp monocrystalline black frame

config

173,37 €

QTT

-
See product
Solar Panel Q.Cells 300Wp mono black

config

222,83 €

QTT

-
See product
BenQ Solar panel 300Wp monocrystalline full black

config

211,30 €

QTT

-
See product

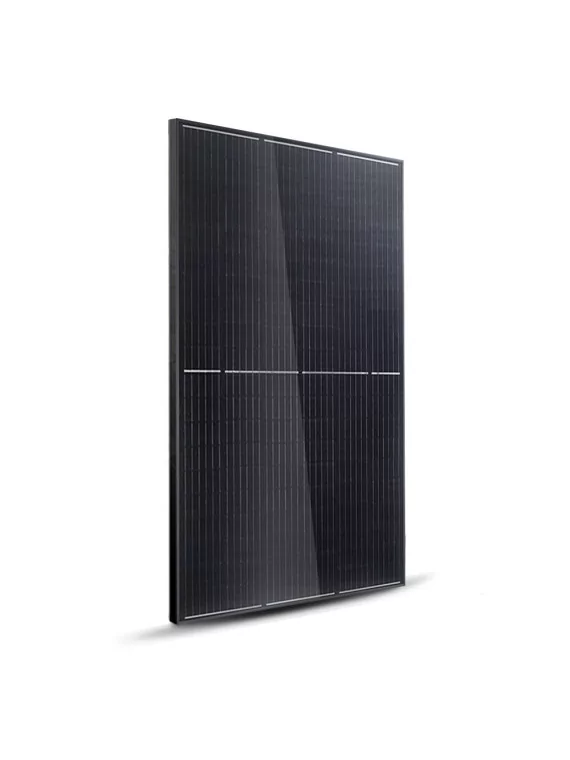

Q.Cells solar panel DUO 310 mono full black

config

218,34 €

QTT

-
See product

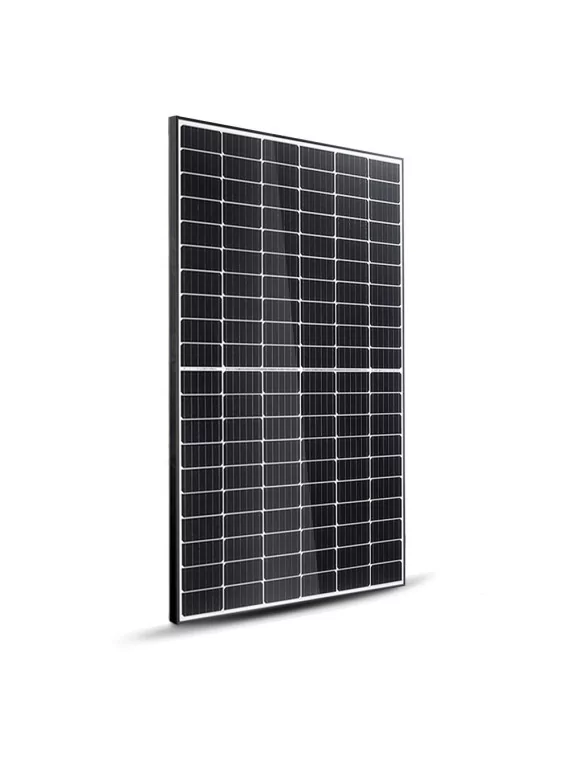

Solar Panel Q.Cells DUO 315Wp mono black frame

config

222,83 €

QTT

-
See product
Solar panel Panasonic 330Wp HIT

config

393,34 €

QTT

-

Protection & accessoires

See product
AC 230V single phase Protection Box - 16A - 300mA

config

128,30 €

QTT

-
See product
AC 230V single phase Protection Box

config

131,30 €

QTT

-
See product
AC 230V single phase Protection Box

config

133,50 €

QTT

-

Choice of the generator

601.5
Sélectionné

Soundproof generator set 1000W Inverter GG10i

826.26
Sélectionné

Soundproof generator set 2000W Inverter GG20i

1094.19
Sélectionné

Soundproof generator set 3300W Inverter GG35iE

1486
Sélectionné

Soundproof 5.5kW mono generator DG-6100SE

1742.4
Sélectionné

Soundproof generator 6,5kW mono with ATS DG-7800SE

1187.53
Sélectionné

Generator 5,5kW mono DG-6100XE

1429.01
Sélectionné

Generator 6,5kW mono DG-7800LE

1311.99
Sélectionné

Generator 7.1kkW mono dry contact GG9000LE

See product
Soundproof generator set 1000W Inverter GG10i

config

601,50 €

QTT

-
See product
Soundproof generator set 2000W Inverter GG20i

config

826,26 €

QTT

-
See product
Soundproof generator set 3300W Inverter GG35iE

config

1 094,19 €

QTT

-
See product
Soundproof 5.5kW mono generator DG-6100SE

config

1 486,00 €

QTT

-
See product
Soundproof generator 6,5kW mono with ATS DG-7800SE

config

1 742,40 €

QTT

-
See product
Generator 5,5kW mono DG-6100XE

config

1 187,53 €

QTT

-
See product
Generator 6,5kW mono DG-7800LE

config

1 429,01 €

QTT

-
See product
Generator 7.1kkW mono dry contact GG9000LE

config

1 311,99 €

QTT

-

More info

"Do not worry about power cuts!"

This kit takes over immediately in case of a power cut to ensure the smooth operation of your electrical installation.

When the network is working, the battery charger keeps the battery bank charge. In case of failure, the system automatically switches your system to the batteries.

Then, when power is restored, the inverter detects and switches back to the latter.
The batteries are partly emptied automatically reloads, can again
face for cuts ...

Composition

  • A hybrid inverter 24V WKS 3 kVA
  • 4,8,12 Gel batteries of 100Ah choose your quantity thanks to the option menu
  • connectivity Requirements





Number of batteryAutonomy
 4 batteries40H
8 batteries80H
12 batteries120 H


based on 100 wh per device







Enjoy continuous and reliable as the network is available or not eating. The energy produced by inverters WKS is targeted and used intelligently for optimal performance. All priorities may be defined by the user: using batteries, solar or AC source (mains or generator) in consumption, the energy generated by your panels is fluctuating and it does not fit for consumption. The UPS WKS stores some of the solar generation in

batteries for later use during the evening or night. Off grid, the inverter WKS can be plugged into a generator for charging the batteries if they are empty and insufficient solar production. This inverter is able to work with several different sources of energies such as public network, photovoltaic panels, thermal generator, batteries

The WKS 3 modes of operation possible

  • solar Priority
  • relief
  • Solar Network

  - Setting the current battery charge
  - Ability to limit or prohibit the load over the network
  - Input from 90 to 280V (useful for fluctuating networks) Voltage
  - Economy mode (limitation of self consumption)
  - Fine tune the characteristics of the batteries
  - Automatic Restarting overload and overtemperature
  - Ability to limit the battery discharge to preserve their life
  - Tension adjustable back in battery mode
  - Bypass overload (allow to pass on the network at times of peak consumption)
  - Safety of low battery
Incompatible with remote display.



Battery Gel 100Ah

 Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety
A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer
retention time.

  • rated voltage: 12V
  • capacity : 100Ah
  • Dimensions : 327 x 173 x 212 mm
  • weight : 31 Kg









Cycle life compared to the depth of discharge

cycles de vie batterie gel 65Ah














Connectors and cables needed

Flexible cable 4mm² battery with battery terminals and connections

Specifications

Battery storageWith storage
Wind TurbinWithout
Type of needUninterruptible power supply
Output Kit voltage48V
Inverter power3000VA
Grid reinjectionoff-grid
