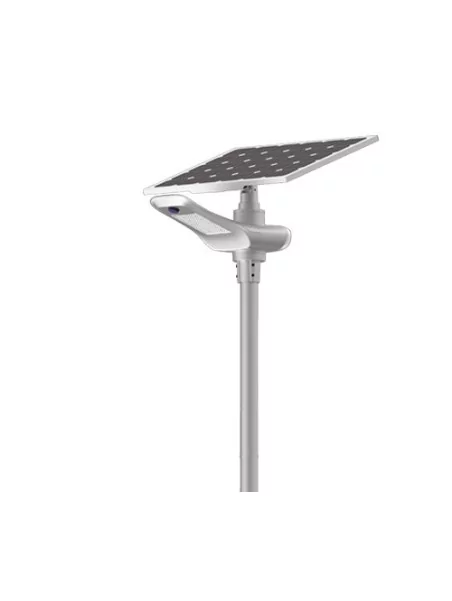

Solar lamp post - LED autonomous WN 40w - 120Wc Panel
More info
Complete system that combines a solar panel, a body LED, a charge controller and a battery to ensure an independent off-grid lighting of your choice (street parking...), it is easy to install and maintain.
The solar panel, placed above the battery, allows to protect the most fragile components of heat and extend the life of the equipment. The Panel can also be adjusted manually on the axis vertical and horizontal, guaranteeing maximum efficiency of solar energy.
• Unique integration design
Easy to transport, install and maintain
• Rotating solar panel
The solar panel can be adjusted in the vertical and horizontal direction
• Management of the charge and discharge
Protect the battery by software and hardware, taking in charge the battery charge to 0V
• Management of light efficiency
Chip patent high efficiency, the effectiveness of all of the lighting system has been improved to 180lm/w
• Patented lens bat-wing
Large lighting area, maximum use lighting light the road, increase the distance of 50 m facility
• MPPT technology
The conversion efficiency of the solar system can be fully augmented, shorten effectively charge of 20% time
Dimensions
Description
Type | WN-100 | WN 120 | WN 150 | |
Panel | Power | 100W/18V | 120W/18V | 150W/18V |
Material | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon | |
Efficiency of solar cells | 19 20% | 19 20% | 19 20% | |
Lithium battery | Capacity | 380WH / 12.8V | 465WH / 12.8V | 549WH / 12.8V |
Time of charge cycle | 2000 cycles | 2000 cycles | 2000 cycles | |
Lamp head | Luminous flux | 5800 - 6100lm | 7500 - 7700lm | 9100 - 9300lm |
Light output | 30W | 40W | 50W | |
LED quantity | 154pcs | |||
LED Pimp | Bridgelux | |||
The color temperature | 6000K | |||
CRY | ≥70Ra | |||
Light head material | Light head material | |||
Elevation angle | (17) (note the use of Dialux) | |||
Life | 50000 hours | |||
System | Control of the system voltage | 5V | ||
Light distribution | Batwing lens with polarized light | |||
Life | Axis X: 158 ° / axis Y: 62 ° | |||
Lighting time (full load) | 3-4. rainy days | |||
Operating temperature | -20℃ ~ 60℃ | |||
Installation | Diameter of the pole | 80mm | ||
Mounting height | 7 12 m | |||
Installation spacing | 20 40 m | |||
Weight | 26 kg | 29 kg | 31 kg |
