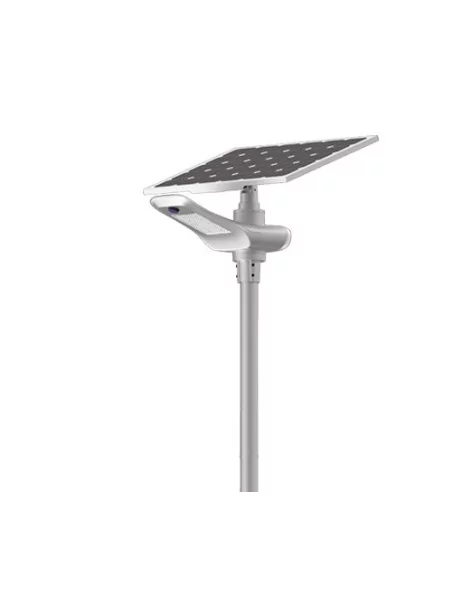

Solar lamp post - LED autonomous 30w WN - 100 Wc Panel

1 043,90 € tax incl.

Complete system that combines a solar panel, a body LED, a charge controller and a battery to ensure an independent off-grid lighting of your choice (street parking...), it is easy to install and maintain.

More details

More info



Complete system that combines a solar panel, a body LED, a charge controller and a battery to ensure an independent off-grid lighting of your choice (street parking...), it is easy to install and maintain.

The solar panel, placed above the battery, allows to protect the most fragile components of heat and extend the life of the equipment. The Panel can also be adjusted manually on the axis vertical and horizontal, guaranteeing maximum efficiency of solar energy.





• Unique integration design

Easy to transport, install and maintain



• Rotating solar panel

The solar panel can be adjusted in the vertical and horizontal direction



• Management of the charge and discharge

Protect the battery by software and hardware, taking in charge the battery charge to 0V



• Management of light efficiency

Chip patent high efficiency, the effectiveness of all of the lighting system has been improved to 180lm/w



• Patented lens bat-wing

Large lighting area, maximum use lighting light the road, increase the distance of 50 m facility



• MPPT technology

The conversion efficiency of the solar system can be fully augmented, shorten effectively charge of 20% time


Dimensions




 Description



 TypeWN-100WN 120WN 150
PanelPower100W/18V120W/18V150W/18V
 MaterialMonocrystalline siliconMonocrystalline siliconMonocrystalline silicon
 Efficiency of solar cells19 20%19 20%19 20%
Lithium batteryCapacity380WH / 12.8V465WH / 12.8V549WH / 12.8V
 Time of charge cycle2000 cycles2000 cycles2000 cycles
Lamp headLuminous flux5800 - 6100lm7500 - 7700lm9100 - 9300lm
 Light output30W40W50W
 LED quantity154pcs
 LED PimpBridgelux
 The color temperature6000K
 CRY≥70Ra
 Light head materialLight head material
 Elevation angle(17) (note the use of Dialux)
 Life50000 hours
SystemControl of the system voltage5V
 Light distribution Batwing lens with polarized light
 LifeAxis X: 158 ° / axis Y: 62 °
 Lighting time (full load)3-4. rainy days
 Operating temperature-20℃ ~ 60℃
InstallationDiameter of the pole80mm
 Mounting height7 12 m
 Installation spacing20 40 m
 Weight26 kg29 kg31 kg

Specifications

Number of panels1 panel
Type de kit solaireAutonomous solar Kit, kit éclairage autonome
Type of needSelf-Use Lighting Kits
Battery storageWith storage
Type de LEDKit éclairage autonome
TechnologyLithium
Panel typeRigids
CellsMonocrystalline
