SMART'AIR V1 aerovoltaic system

SCTD INDUSTRIES

7 865,00 € tax incl.

Combining performance and comfort, SMART'AIR is the high-end aerovoltaic solution that guarantees a 24/7 heating with an air outlet at 50 ° C even at -10 ° C outside, with independent parts management via wireless thermostats.

Made in France

More details

More info

Smart'air

Combining performance and comfort, SMART'AIR is the high-end aerovoltaic solution that guarantees a 24/7 heating with an air outlet at 50 ° C even at -10 ° C outside, with independent parts management via wireless thermostats.

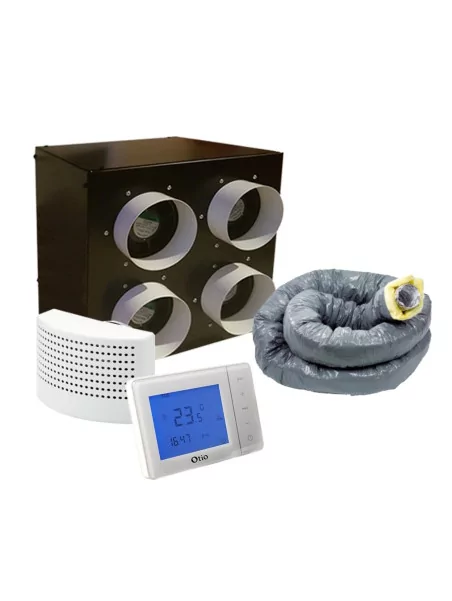

Kit V1

Configuration of this product:
Solution SMART-AIR V1
HEATING

1 Insulated ventilation box with 4 axial fans
4 progressive heating nozzles
1 Electronic box
4 Wireless Thermostats (or Home Automation Option)
4 Thermostatic receivers (fixed on ventilation box)
1 Internal suction nozzle with particle filter
4 ducts 6m 125mm for feeding nozzles + collar
1 sheath 5m 200mm for suction inner nozzle + collar

ELIGIBLE FOR TAX CREDIT

If you are located in France, contact us to be put in touch with our partner in order to realize a customized installation which will be able to dispose of the aid deduced, like the tax credit and the help with the subsistence. Visit the manufacturer's product sheet here.

Spend from € 7,865 including taxes and excluding installation to € 7,650 TTC with aid deducted (vat 5.5%, tax credit).

Made in France        Garantie 20 ans      Crédit



PERFORMANCE

Forced air is a new approach to heating a home. Compared to a passive heating system, forced air heating provides unparalleled comfort and a significant saving in heating.

Flux intérieur

COMFORT

The SMART-AIR system is completely automated, it constantly manages the heating demand and adapts its operation to meet it.

The system is equipped with micro-perforated air diffusion nozzle which allows it to heat by diffusion of air and not by ventilation, it does not generate breath in the equipped room.
Unlike a passive heating system such as the electric radiator, which will heat a large part around its periphery and room height, the pulsed air makes it possible to reach the center of the habitable room and to give a heat dynamic for a homogeneous temperature throughout the room.

This pulsed air is more homogeneous, the comfort temperature requested by the user is on average reached between 3 to 4 times faster than a passive system. A significant saving with optimum comfort.

EASY TO USE

A simple aerovoltaic system does not allow heating control with independent management.
The heat requirements from room to room are usually different. There is a significant gap requested by a user between a living room, bedroom or bathroom for example.

A simple aerovoltaic system does not allow heating control with independent management.
The heat requirements from room to room are usually different. There is a significant gap requested by a user between a living room, bedroom or bathroom for example.

Filtration d'air

HEALTHIER AIR

The air in our habitats is loaded with dust in suspension.

These particles are often associated with a feeling of discomfort to breathing and can lead to complications such as bronchitis and asthma in the most sensitive and fragile subjects.

These particles are often associated with a feeling of discomfort to breathing and can lead to complications such as bronchitis and asthma in the most sensitive and fragile subjects.

The filter is very easy to clean, it is magnetized on the nozzle and is very easy to remove.
Cleaning with clean water then drying and the filter is ready to be reinstalled.

Flux

ECONOMIC

Compared to a passive heating system, SMART-AIR allows ventilation of hot air.
With a passive heating you overheat the room by 30% to 40% in order to feel a comfort temperature at the height of man with an excessive temperature at the top of the room and thus an expenditure of energy lost for the user.
With the SMART-AIR system Each nozzle has a progressive intelligent resistance of maximum 400W and represents in comparison with a passive heating system more than 2000W of heat transfer for 400W maximum consumption.
The system management regulates up to 4 nozzles.
The low power consumption of the system makes it fully compatible with a solar system.
The solar photovoltaic system brings a production to take care of the low consumption of the SMART-AIR, you thus become autonomous in heating with a cost for the heating of your habitat absorbed by the solar panels. The rest of the year the panels bring electricity in self-consumption you have no loss of production.

OPERATION AND CONSUMPTION

Example of an installation with configuration on two nozzles on the 60sqm side, a 20sqm kitchen side nozzle and a 10sqm bathroom nozzle. A management thermostat for the two nozzles on the living room side and a thermostat for the kitchen and bathroom
The consumption of the SMART-AIR heating nozzle system remains very low, based on a logic of heat diffusion directly inside the volume to be heated, and makes it possible to be considered as the least expensive heating system on the market. Each nozzle has a heating capacity of 20m² to 40m² depending on the insulation of the habitat. Its consumption does not exceed 400w maximum with an observation of an average of 250w to 350w in operation.
For example: System operation 8h per day over a full month of operation, the system consumes an average of 300 kw (300w x 4 nozzles x 8h x 31 days) corresponding to an average of 35 € between HP and HC price for heating from 80m² to 160m²!

Domotique

Domotique

TAKE CONTROL OF YOUR HOME

Enter a new world with the SMART-AIR home automation system.
No more apparent thermostat in the house, 100% home automation management with always heating management room by room. Constant monitoring of the heating status, current setpoint, temperature in the rooms equipped ... Prepare scenarios during your absence to make believe in a presence in your home.

NO LIMIT :

Thanks to the logic of home automation equiped with optional SMART-AIR, there is no limit of use and controllable products. Once the SMART-AIR home automation solution is installed you can add connectors on any product to control it with the same application. Add for example rolling shutters, garage door, lighting, garden watering ... no limit

SMART-AIR HOUSING
Number of outputsFrom 2 to 4
CompositionGalva epoxy baked
Sheath diameter4x125mm² / 1x250mm²
Fan typeAxial 220v-230v 190m3/h
Box weight5 kg
Sheath length per nozzle8m
Sheath typeDouble insulated sheath
Ventilation box warranty20 years
Lifespan ventilation 24 °50,000 h / over 40 years

Heating nozzle
Ventilation outputMicro-perforated
Safety 80 °Thermostatic probe
Max consumption400w
Consumption at 20 °300w/350w
Operationprogressive
