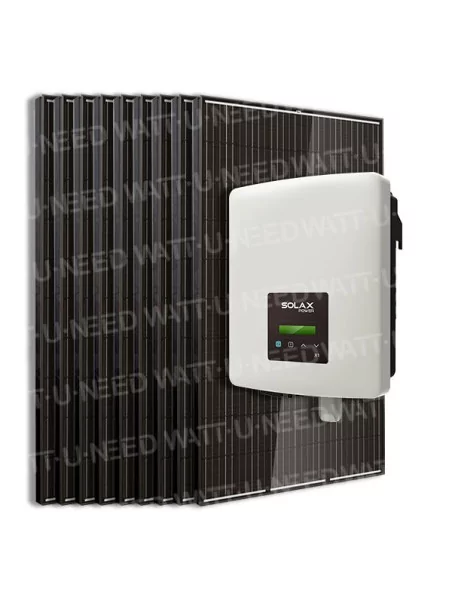

Kit 9 panels self-consumption / reinjection 3000W without storage

Wattuneed

3 010,53 € tax incl.

Add to cart

Complete kit containing:

  • 9 to 12 panels to choose from among several brands.
  • Basic inverter a SolaX X1 Mini 3.0.
  • Electrical equipment and wiring.

Optional:

  • Mounting system.
  • Electrical protection
  • For Belgian customers, installation possibilities

All-in-one and ready-to-use kit for your installation and an ideal self-consumption for a small household.

More details

Équipements
Descriptions équipements
Customize

Choice of panels

234.78
Sélectionné

JNL Solar Climax Solar Panel 400 wp JLS108MFB

221.2
Sélectionné

Omnis Power Cortex solar panel 410Wc OP410M54-P3-B

235.45
Sélectionné

Omnis Power Cortex Bifacial Solar Panel 415Wp OP415M54-P3-BF

See product
JNL Solar Climax Solar Panel 400 wp JLS108MFB

config

234,78 €

QTT

See product
Omnis Power Cortex solar panel 410Wc OP410M54-P3-B

config

221,20 €

QTT

See product
Omnis Power Cortex Bifacial Solar Panel 415Wp OP415M54-P3-BF

config

235,45 €

QTT

The choice of the inverter

See product
Single-phase inverter SolaX X1 Boost 3.0T X1-3.0-T-D
Out of stock Replenishment : 14/02/2023

config

905,00 €

QTT

See product
Single-phase inverter SolaX X1 Mini 3.0 X1-3.0K-S-D

config

757,30 €

QTT

See product
Single-phase inverter SolaX X1 Boost 3.3T X1-3.3-T-D
Out of stock Replenishment : 06/02/2023

config

982,40 €

QTT

See product
Single-phase inverter SolaX X1 Boost 4.2T X1-4.2-T-D

config

1 048,00 €

QTT

See product
Single-phase inverter SolaX X1 Boost 5.0T X1-5.0-T-D
Out of stock Replenishment : 14/02/2023

config

1 202,80 €

QTT

See product
Single-phase inverter SolaX X1 Boost 3.6T X1-3.6-T-D

config

1 019,90 €

QTT

See product
SMA Sunny Boy 3.6 SB3.6-1 AV-41 single-phase inverter

config

1 690,10 €

QTT

See product
SMA Sunny Boy 3.0 - zero injection inverter

config

2 590,90 €

QTT

See product
SMA Sunny Boy Inverter 3.0 SB3.0-1 AV-41

config

1 586,70 €

QTT

See product
SMA Sunny Boy 3.6 single-phase inverter - Zero injection

config

2 694,40 €

QTT

See product
SMA Sunny Boy 4.0 SB4.0-1 AV-41 single-phase inverter
Out of stock

config

1 772,60 €

QTT

See product
SMA Sunny Boy 4.0 single-phase inverter - Zero injection

config

2 776,90 €

QTT

See product
SMA Sunny Boy 5.0 SB5.0-1AV-41 single-phase inverter

config

1 901,60 €

QTT

See product
SMA Sunny Boy 5.0 single-phase inverter - Zero injection

config

2 905,90 €

QTT

See product
SunGrow 3.0 SG3.0RS single-phase inverter

config

1 211,80 €

QTT

See product
SunGrow 5.0 SG5.0RS single-phase inverter

config

1 556,40 €

QTT

See product
Inverter Steca coolcept fleX 3kVA StecaGrid 3011_2

config

1 461,08 €

QTT

See product
Inverter Steca coolcept fleX 5kVA StecaGrid 5011_2

config

1 837,99 €

QTT

See product
Fronius Primo 3.0-1 (2 MPPT) mono

config

1 523,76 €

QTT

Choice of mounting system

68.5
Sélectionné

Tile roof attachment kit

64.42
Sélectionné

Slate roof attachment kit

130.81
Sélectionné

Fixing kit on ground structure

38.4
Sélectionné

Tin roof attachment kit

54
Sélectionné

Mounting system for tray roofing

See product
Tile roof attachment kit

config

68,50 €

QTT

See product
Slate roof attachment kit

config

64,42 €

QTT

See product
Fixing kit on ground structure

config

130,81 €

QTT

See product
Tin roof attachment kit

config

38,40 €

QTT

See product
Mounting system for tray roofing

config

54,00 €

QTT

AC Protections and Accessories

See product
Schneider mono 16A circuit breaker

config

9,40 €

QTT

See product
Schneider mono 2A circuit breaker

config

16,30 €

QTT

See product
Schneider mono 4A circuit breaker

config

16,30 €

QTT

See product
Schneider mono 6A circuit breaker

config

16,60 €

QTT

See product
Schneider mono 10A circuit breaker

config

19,30 €

QTT

See product
Schneider mono 20A circuit breaker

config

9,40 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

18,00 €

QTT

See product
3kWc Single Phase lightning protection

config

239,39 €

QTT

See product
Three-phase electrical box

config

694,14 €

QTT

See product
AC Parafoudre Box

config

370,15 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

144,20 €

QTT

See product
ZJBENY AC 16A/20A25A 230V Lightning Box

config

129,07 €

QTT

Protections and accessories DC

See product
DC 2P 1000V 32A Switch - with enclosure

config

57,68 €

QTT

See product
ZJBENY DC single-surge arrestor box

config

147,29 €

QTT

See product
1000V 32A DC double surge protector ZJBENY

config

237,93 €

QTT

See product
DC 500V 40A Switch

config

70,04 €

QTT

See product
DC 500V 32A disconnector box

config

132,87 €

QTT

See product
Lightning protection box with 2 input

config

485,13 €

QTT

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

278,10 €

QTT

See product
PV DC Surge Protection Device - 3P

config

60,15 €

QTT

See product
DC Cut-out and lightning protection box 20A

config

270,74 €

QTT

See product
DC Cut-out and protection box 40A

config

470,74 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

568,54 €

QTT

Wiring and connectivity

See product
2X4mm2 solar cable with Type MC4 (sold by the meter - 10m)

config

41,65 €

QTT

See product
Earth cable 1x6 mm2 20m

config

63,68 €

QTT

See product
Earth cable 6mm2 1m

config

2,30 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

9,75 €

QTT

See product
2x4mm2 solar cable extension with 2x Type MC4 (10 meters)

config

42,44 €

QTT

See product
XVB 3G2.5 mm - 1m electric cable

config

2,60 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

2,61 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,94 €

QTT

See product
XVB 3G4 mm - 1m electric cable

config

4,70 €

QTT

See product
XVB 5G4 mm - 1m electric cable

config

6,40 €

QTT

See product
XVB 3G6 mm - 1m electric cable

config

8,10 €

QTT

See product
XVB 3G10 mm - 1m electric cable

config

11,00 €

QTT

See product
Male and female MC4-like connectors

config

5,15 €

QTT

See product
Double type MC4-like connector male & female

config

16,48 €

QTT

Installation fee - belgian customers

See product
Reception at SOCOTEC

config

186,94 €

QTT

See product
Electrical installation

config

336,50 €

QTT

See product
Commissioning

config

62,32 €

QTT

See product
Transport costs

config

1,03 €

QTT

Choice workforce - belgian customers

84
Sélectionné

Facilities solar roof tiles - Price for installation

92.7
Sélectionné

Facilities-solar slate roof - Price for installation

84
Sélectionné

Facilities solar structure flat Price for the installation

84
Sélectionné

Facilities solar metal roof - Price for installation

See product
Facilities solar roof tiles - Price for installation

config

84,00 €

QTT

See product
Facilities-solar slate roof - Price for installation

config

92,70 €

QTT

See product
Facilities solar structure flat Price for the installation

config

84,00 €

QTT

See product
Facilities solar metal roof - Price for installation

config

84,00 €

QTT

More info

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.

This kit is sized with the general purpose of being installed with the public network.

The basic composition of the kit contains 9 solar panels, a SolaX X1 Boost 3.0 Single Phase Inverter and the solar cable to connect the panels to the inverter. (The mounting system as well as the wiring and protections are modifiable to meet your needs).



SOLAR PANELS:

In its basic version, this Photovoltaic system will bring you an average of 8.4 Kwh per sunny day. The productions will depend on the seasons (summer/winter) the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to determine precisely what your solar production will be.

Warranty 25 years at 80% of rated power.



NETWORK INVERTER:

The SolaX X1 Mini range of inverters is designed and manufactured for small PV networks. With a starting voltage of 70V and a maximum efficiency of 97.1%, the X1 Mini promises unparalleled performance, allowing you to harvest as much energy as possible from your PV system.



CABLE AND CONNECTORS:

All cables and connections are pre-wired in our workshops. Our kits are very easily mountable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.



ASSEMBLY:

The installation of this kit takes no more than 2 hours. Once the VarioTwin structures are positioned, all you have to do is 'clip' the panels on them. Attach the inverter to the wall and connect it to your electrical panel.



GUARANTEE:

All products have an individual warranty.

Panels guaranteed for 25 years at 80% of the rated power.

Solax inverter warranty 10 years.




Panneau solaire Cortex Omnis 405





Solar panel



The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.














Single-phase inverter SolaX X1 Boost 3.0T X1-3.0-T-D

Caractéristiques Solax X1



SolaX has developed a range of single-phase inverters unmatched in the industry for their quality, reliability and efficiency. SolaX single-phase inverters have a wide MPPT voltage range that allows for greater energy recovery and a maximum input voltage of 600 V, with a maximum efficiency of 97.8%. In addition, SolaX single-phase inverters comply with the IP66 standard, have no internal fan and are equipped with an optional "plug & play" WIFI system. The "Boost" range with dual MPPT is also compatible with the new "Smart Plug" from SolaX that allows remote control of devices.



Characteristics



ENTRANCE
Max. power of photovoltaic panels (Wc)4500
Max. DC Power Recommended (W)A: 3300 B: 3300
Max DC voltage (V)600
Nominal DC working voltage (V)360
Input current max. (A)12/12
Short circuit current max. (A)14/14
MPPT voltage range (V)70-580
Startup service voltage (V)100
# of MPP/MPPT follow-ups / Channels by MPP/MPPT follow-up2(1/1)
AC OUTPUT
Rated AC Power (VA)3000
Max AC power (VA)3300
Rated electrical network voltage (AC voltage range) (V)220/230/240; 180~280
Frequency/Rated Range of the Power Grid (Hz)50/60; ±5
Rated AC current (A)13
Current AC max. (A)14,3
Displacement power factor0.8 capacitive – 0.8 inductive
THDi, rated power(%)<2
YIELD
MPPT Performance (%)99,9
European yield (%)97,0
Max yield (%)97,8
POWER ABSORBED
Standby (night) consumption (W)<0.5
STANDARDS
Surge protectionYes
Overcurrent protectionYes
DC Insulation Resistance MonitoringYes
Ground Fault Current MonitoringYes
DC injection monitoringYes
Differential circuit breaker protectionYes
SecurityIEC 62109-1/-2
EMCEN 61000-6-1, EN 61000-6-2, EN 61000-6-3
CertificationG98, G99, AS 4777, VDE4105, EN 50549, IEC 0-21
ENVIRONMENTAL LIMITS
Degree of protection (according to IEC 60529)IP65
Operating temperature range (°C)-25 to + 60 (downgrading to 45)
Max operating altitude (m)<2000
Humidity(%)0 to 100 (condensation)
Storage temperature (°C)-25~60
Typical sound level (dB)25
DIMENSIONS AND WEIGHT
Dimensions (W x W x D) (mm)430 x 341.5 x 143
Weight (kg)13,5
Type of coolingNatural
TopologyNon-isolated
Communication interfacesPocket Wi-Fi (optional)
Pocket LAN (optional)
Pocket GPRS (optional)
Counter (optional)
SR485
DRM
USB for update
LCDYes
Standard warranty (years)10




Connection scheme



Schéma de connexion

Specifications

Output Kit voltage230V
Battery storageWithout storage
Type of needSelf-consumption
Wind TurbinWithout
Number of panels9 panels
Inverter power3000VA
Grid reinjectionWith
