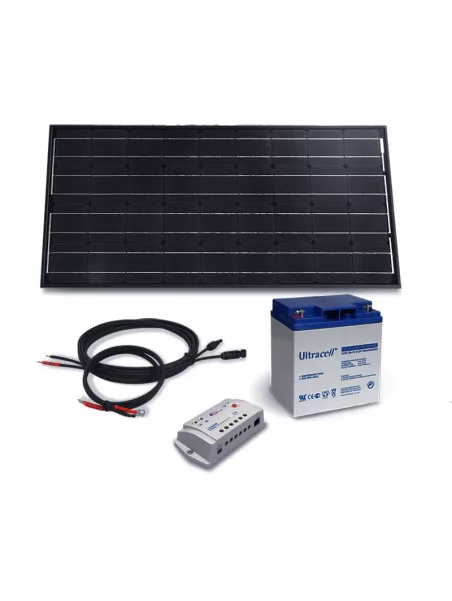

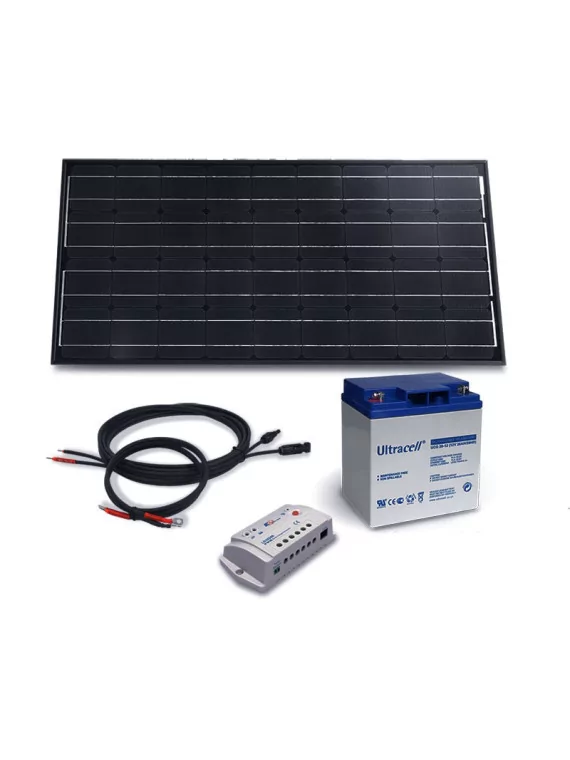

Solar kit 100Wp - 35Ah - 12V

Wattuneed

221,91 € tax incl.

Add to cart

Off-grid solar panel: 100Wp

Charge controller 10A

26 Ah GEL battery

Cables and accessories

More details

Équipements
Descriptions équipements
Customize

Choice of solar panel

93.91
Sélectionné

Monocrystalline solar panel 12V 100pw

130.72
Sélectionné

MX FLEX Protect Solar Panel Back Contact 50Wp

55.99
Sélectionné

Solar panel 50Wp

155.28
Sélectionné

MX FLEX XTD PROTECT 50pw 12V solar panel

292.42
Sélectionné

Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

246.07
Sélectionné

Solar Panel 12V FLEX MX PROTECT 100pw

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar panel 50Wp
Out of stock Replenishment : 23/08/2020

config

55,99 €

QTT

See product
MX FLEX XTD PROTECT 50pw 12V solar panel

config

155,28 €

QTT

See product
Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

config

292,42 €

QTT

See product
Solar Panel 12V FLEX MX PROTECT 100pw

config

246,07 €

QTT

The choice of the regulator

See product
EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

config

24,60 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

See product

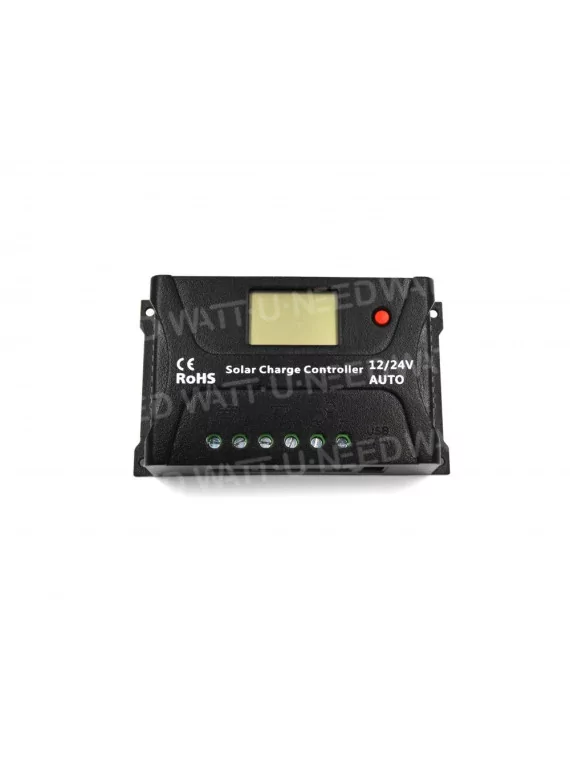

Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Epsolar Duo Battery PWM 12V / 24V 10A

config

42,00 €

QTT

See product
Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A
Out of stock

config

54,40 €

QTT

Choice of mounting system

55
Sélectionné

Mounting system for tile roof

49.1
Sélectionné

Mounting system for slates roof

127
Sélectionné

Free-land mounting kit for solar panel

37.28
Sélectionné

Mounting system for sheet metal

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product
Mounting system for tile roof

config

55,00 €

QTT

See product
Mounting system for slates roof

config

49,10 €

QTT

See product
Free-land mounting kit for solar panel

config

127,00 €

QTT

See product
Mounting system for sheet metal

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

Choice of cable solar

See product
2X4mm² Solar cable with MC4 (2 metre)

config

6,80 €

QTT

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

7,30 €

QTT

See product
Male and female MC4 connectors

config

5,00 €

QTT

See product
Double MC4 connector male & female

config

16,00 €

QTT

Choice of battery cable

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

See product
16mm² battery cable with pods

config

5,80 €

QTT

See product
25mm² battery cable with pods

config

9,00 €

QTT

Battery choice

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
AGM battery Ultracell 12V 7Ah

config

14,64 €

QTT

See product
AGM battery Ultracell 12V 12Ah

config

26,62 €

QTT

See product
Ultracell 12V 55Ah GEL battery
Out of stock

config

139,37 €

QTT

See product
AGM battery Ultracell 12V 18Ah

config

36,30 €

QTT

See product
PowerBrick lithium battery + 12V 7, 5Ah

config

152,18 €

QTT

See product
PowerBrick lithium battery + 12V 12Ah

config

212,70 €

QTT

See product
PowerBrick lithium battery + 12V 20Ah

config

319,30 €

QTT

See product
PowerBrick lithium battery + 12V 40Ah

config

570,56 €

QTT

See product
PowerBrick lithium battery + 12V 55Ah

config

816,29 €

QTT

See product
PowerBrick lithium battery + 12V 100Ah

config

1 198,83 €

QTT

More info

Composition

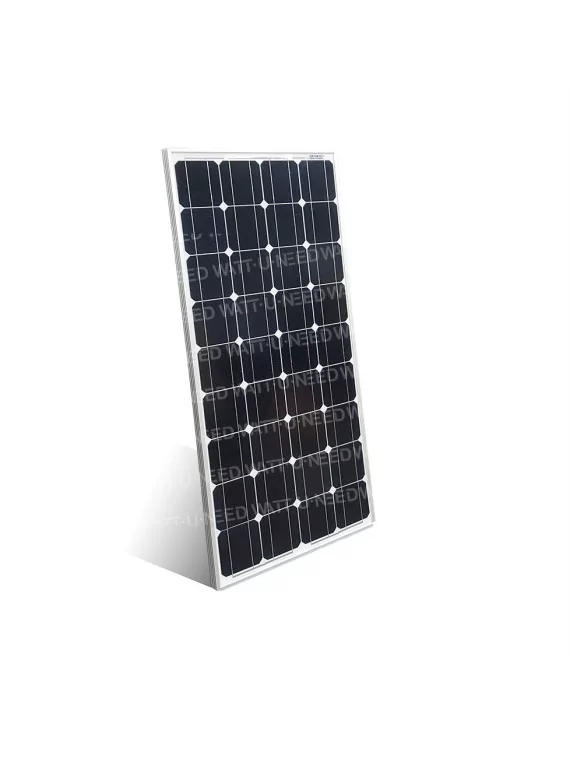

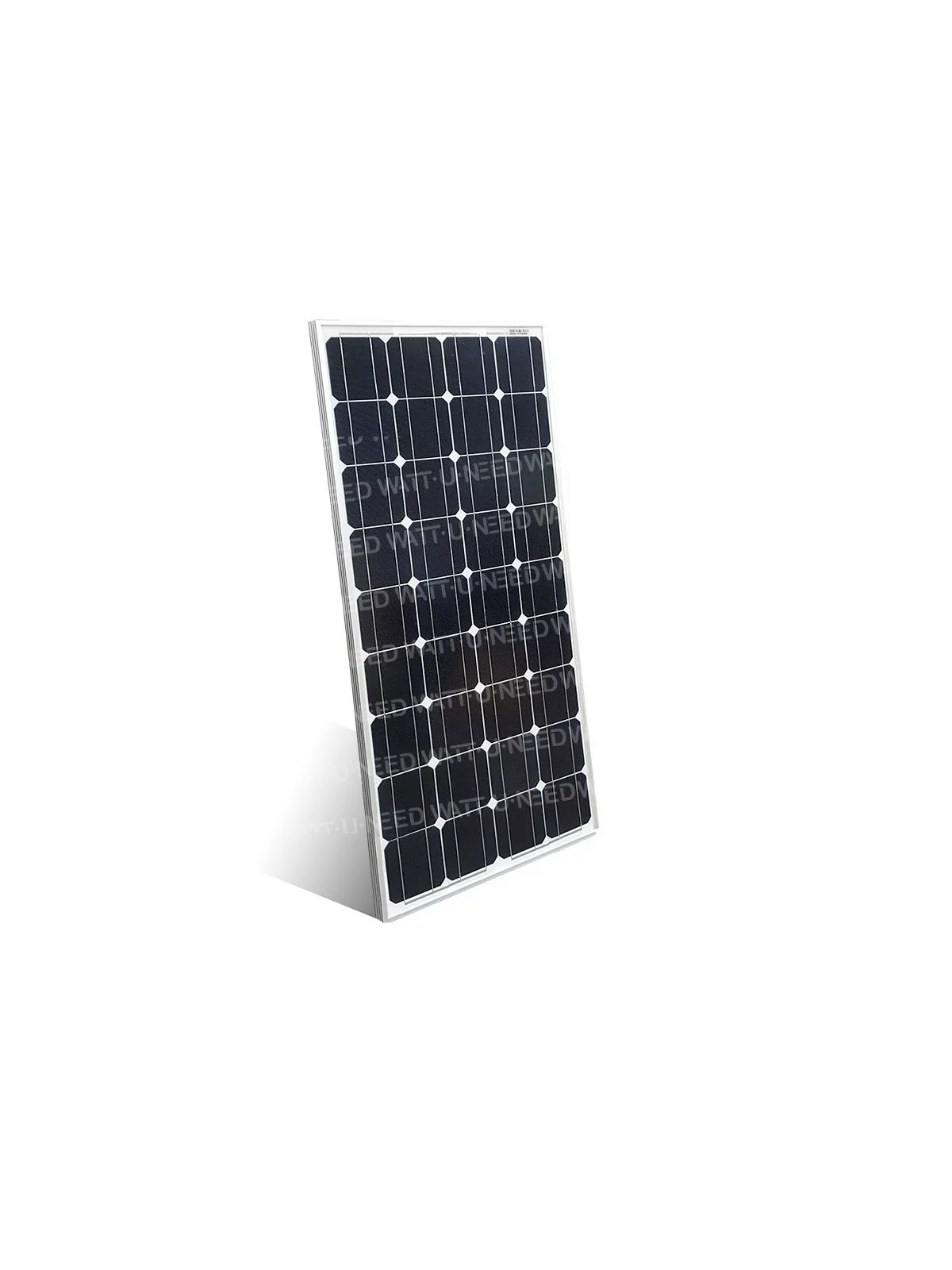

Monocrystalline Solar Panel 12V 100pw



Ideal companion for mobile applications (camping, boat...), this Panel single-crystal solar one 100pw combines aesthetics, efficiency, and simplicity.
With its excellent surface performance, its size, its weight and strength it is very simple to install. Even the connection is quick and easy with the 60cm of cable with mc4 plugs.



  • Normal NOCT operating temperature: 45 ° C
  • Wind resistance:? 130 km/h
  • The hailstone maximum diameter: 25 mm
  • The hailstone impact speed: 80 km/h
  • Frame in anodized aluminum light and reinforced
  • High transmissivity of glass
  • "Plug & play" box with 2 diodes
  • 4mm thick safety glass







Operating temperature range-40~+85°C
MatérielAnodised aluminium
Tolerance0-3%
Operating voltage (Vdc)1000
MatérielWhite Tedlar
Max. reverse overcurrent protection15 A
Voltage12V
Weight8 kg
CouleurClassical
Panel typeRigids
CellsMonocrystalline
Max. Power - Wp100 Wc
Open circuit voltage (Voc)22.08 V
Short circuit current (Isc)6.03 A
Max. power current (Imp)5.83 A
Max. power voltage17,18 V
Width545 mm
Height1195 mm
Frame35 mm

EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A



The model 10A (LS1024B) can accommodate up to 250 watts of solar panels *


Capacity: 10, 20 or 30 amps.
Tension: 12v or 24V
Temperature compensation
2-year warranty.
Technology: 'linkpopup id'pwm'.
Fully programmable if used with its display

All load voltages can be changed between 9 and 17V (X2 for 24V), disconnection voltage also.
Programming the consumer output in a day/night or hourly mode.


In a 24V system



ModelLS1024B
Nominal system tension12/24VDC12/24VDC
Rated battery current10A
Maximum PV input voltage40w
Self-sommation8.4mA (12V)?7.8mA (24V)
Temperature compensation-3mV/?/2V?25? Ref?
Equalizing load voltageSealed: 14.6V, open: 14.8V, User: 9-17V
Increased load voltageGel: 14.2V, Sealed: 14.6V, open: 14.8V, User: 9-17V
Floating charge voltageFreeze /Sealed /open: 13.8V, User: 9-17V
Reconnection tensionFreeze /Sealed /open: 12.6V, User: 9-17V
disconnection tensionFreeze /Sealed /open: 11.1V, User: 9-17V
Size138.6x69.3x37mm
Mounting holes126mm
Terminal4mm2
Weight0.13kg
Running temperature-35?
Storage temperature-35?
Humidity?95% (NC)
StandardIP30

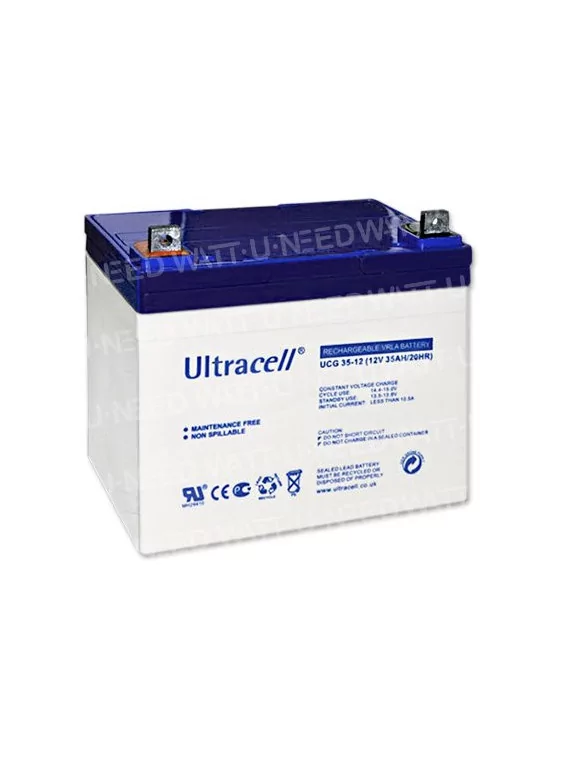

GEL Battery Ultracell 12V 35Ah





Gel batteries are sealed batteriesno maintenanceno addition of distilled water. Strengthened compared to flooded batteriesSafety
A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer
retention time.







  • Rated voltage: 12V
  • Capacity : 35Ah
  • Dimensions : L 195 x  W 130 x H 180 mm
  • Weight: 11,2 Kg

Cables and connectors



10m of 2x4mm² solar cable and 2m battery cable

MC4 grimped on cable



 Provides optimal performance even in high temperatures and low light.

 This kit will produce in Paris at least 200Wh in July and 40Wh in December.

The battery has a useful capacity of 144W/h (at 30% discharge to maximize the lifetime - 1200 cycles)


Optional



More pow

erful functions via MT50

affichage epsolar





Diversified load control modes : Manual, Light ON/OFF, Light ON+ Timer, Time Control, Battery type selection: Gel, sealed, flooded and User type

Real-time monitor
Programmable parameters
LVD or SOC load disconnect function
Energy statistics function

Specifications

Number of panels1 panel
Voltage12V
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
