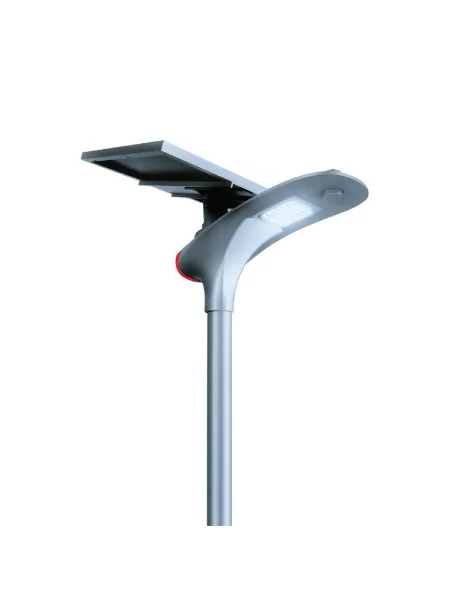

Solar lamp post - LED autonomous 15W 18V WA

Wattuneed

856,90 € tax incl.

Solar lamp LED 15W - 18 Volt fully autonomous through its Panel solar 50pw.

The solar panel is orientable (front-back tilt) to position the Panel according to the Sun, and ensure an optimal recharge of the battery included in the Streetlight. The solar spot is easy to fix and is completely self-contained.





More details

More info

Fully autonomous WA LED 15W 18V solar lamppost!



Its a power of 15 Watt solar spot is perfect for lighting your yard, parking, driveway or street lighting without recourse to the public electricity grid.

This solar lamp is completely autonomous with its solar panel 50pw and its built-in battery. Practice to inform the non-connected places in the network at lower cost or to save on energy by using solar energy. Ideal to replace your old high consumption spots!



  • Charge (in full sun) time: 5.5 hours
  • Lighting time: 2-3 days
  • Recommended installation height: 5-6 meters
  • Recommended between streetlights distance: 10-30 meters



Beware, the mast is not included in this product! For any request, please contact to info@wattuneed.com


lampadaire avec panneau solaire inclinable



Panel photovoltaic orientable 50pw



A solar panel is integrated on top of the lamppost. The particularity of this Panel is that it is fully adjustable (front-back tilt) to ensure a correct exposure of the entire surface of the Panel regardless of its locationUnlike some Panel lights fixed.

  • Monocrystalline cells
  • Power: 50 WP
  • Easy and quick to install
  • Aluminum frame
  • VMP: 18, 0V
  • IMP: 2.78 A
  • VOC: 21, 6V
  • ISC: 3.02 A
  • Dimensions: 610 x 541 x 25 mm

Eclairage de rue LED 15W





Solar spot with an output of 15W



Thanks to the power of 15W LED lamp, it is possible to illuminate parking lots, driveways, streets...

The distance recommended between streetlights is between 10 and 30 meters.



Features:

  • Use: Street lighting
  • The color temperature: 3000-6500 K
  • Light LFlux: 3000-6500 lm
  • LED quantity: 24pcs
  • LED chip: Bridgelux
  • CCRI: Maw 70Ra
  • Control voltage: 5V

Solar battery Lithium 170 Wh



The lamp has a Lithium battery high capacity for storage of the energy accumulated during the day.

Life expectancy: 5 to 8 years (≥ 2000 cycles of charge and discharge)

High heat resistance

 Eclairage de rue LED 15W


Dimensions of the solar spot and the photovoltaic panel



Dimensions schéma Eclairage de rue LED 15W


Description



TypeWA-50
Lamp power15W
Solar Panel50W
18V
Lithium battery170WH
12.8V
LiFePo
LED quantity24PCs
Luminous flux2260LM
Time of loading (in the Sun)5.5HRS
LED-markBridgelux
Color temperature3000-6500K
CRY≥70RA
Light control voltage5V
Light distributionWing beat with polarized light
Lighting time2-3 days
Distance from the sensor5-10m
Time of the sensor20-30s
Operating temperature-20 to + 60° C
Life≥50, 000HRS
MaterialAluminum under pressure of high-quality cast aluminum alloy
The pole diameter60mm
Mounting height5-6m
Installation spacing10-30m

Example usage of the solar lamp 15W



Dimensions schéma Eclairage de rue LED 15W

Specifications

Type of needSelf-Use Lighting Kits
Battery storageWith storage
Wind TurbinWithout
Number of panels1 panel
