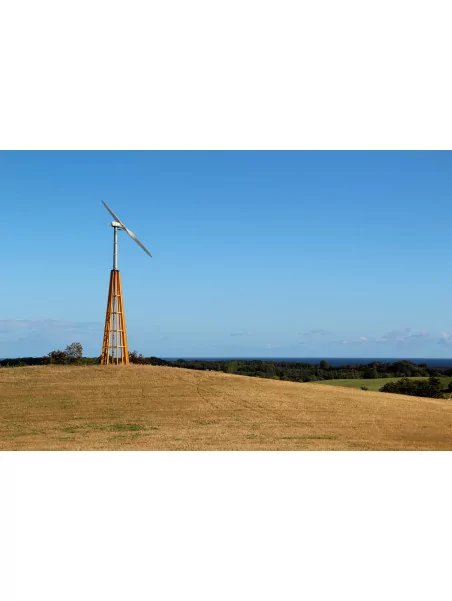

Dali wooden towers for wind turbine InnoVentum

Innoventum

28 348,84 € tax incl.

Add to cart

Équipements
Descriptions équipements
Customize

PANEL SELECTION

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

167,60 €

QTT

See product
LG 365Wc NeON R monocrystalline solar panel

config

441,65 €

QTT

Choice of structure

See product
10m wooden tower structure for wind turbine

config

10 025,71 €

QTT

See product
12m wooden tower structure for wind turbine

config

10 025,71 €

QTT

See product
12m wooden tower structure for wind turbine

config

31 900,00 €

QTT

Choosing the wind turbine

See product
Wind turbine ANTARIS 2.5 kW connected to the grid

config

16 032,50 €

QTT

See product
Wind turbine ANTARIS 3.5 kW connected to the grid

config

16 778,67 €

QTT

See product
Wind turbine ANTARIS 2.5 kW

config

13 511,67 €

QTT

See product
Wind turbine ANTARIS 3.5 kW for standalone site

config

14 116,67 €

QTT

See product
Wind turbine ANTARIS 7.5 kW grid connected

config

30 411,33 €

QTT

See product
1kW Bergey Excel wind turbine 24V or 48V (charging models)

config

9 599,00 €

QTT

See product
6kW Bergey Excel wind turbine 230VAC 50Hz (Grid Inertie)

config

41 630,00 €

QTT

See product
10kW Bergey Excel wind turbine 230 VAC or 48 VDC

config

59 548,00 €

QTT

CABLING AND CONNECTORS

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

AC guards and accessories

See product
Schneider mono 2A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 4A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 6A circuit breaker

config

14,70 €

QTT

See product
Schneider mono 10A circuit breaker

config

17,60 €

QTT

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider mono 20A circuit breaker

config

8,60 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Schneider mono 40A circuit breaker

config

16,70 €

QTT

See product
Schneider 16A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 25A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 40A tetra circuit breaker

config

53,40 €

QTT

See product
Schneider Breaker tetra 50A

config

183,68 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 25A 230V Lightning Box

config

125,25 €

QTT

DC guards and accessories

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
1000V 32A DC double surge protector ZJBENY

config

231,00 €

QTT

See product
Lightning protection box with 2 input

config

471,00 €

QTT

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

270,00 €

QTT

See product
DC 500V 32A disconnector box

config

129,00 €

QTT

See product
DC 2P 1000V 32A Switch - with enclosure

config

56,00 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

551,98 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
DC Cut-out and protection box 40A

config

457,03 €

QTT

Inverter selection

See product
UPS hybrid WKS Evo 48V 5kVA

config

949,85 €

QTT

See product
WKS opti-C 3000 INverter

config

1 200,00 €

QTT

BATTERY SELECTION

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
Ultracell GEL battery 12V 200Ah

config

397,00 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

See product
Lithium Pylontech Battery - 50 - 2.4 kWh
Out of stock Replenishment : 27/12/2021

config

1 052,18 €

QTT

See product
Lithium Battery Pylontech + 100 - 4.8 kWh

config

2 104,30 €

QTT

See product
Battery Lithium Pylontech + 150 - 7.2 kWh

config

3 156,50 €

QTT

See product
Battery Lithium Pylontech + 200 - 9.6 kWh

config

4 208,70 €

QTT

See product
Battery Lithium Pylontech + 250 - 12 kWh

config

5 260,90 €

QTT

See product
Battery Lithium Pylontech + 300 - 14.4 kWh

config

6 313,00 €

QTT

See product
Battery Lithium Pylontech + 350 - 16.8 kWh

config

7 365,20 €

QTT

See product
Battery Lithium Pylontech + 400 - 19.2 kWh

config

8 417,40 €

QTT

See product
PowerBrick 12V 7.5Ah lithium battery

config

134,00 €

QTT

See product
PowerBrick Lithium Battery 12V 12Ah

config

177,60 €

QTT

See product
PowerBrick Lithium Battery 12V 20Ah

config

264,85 €

QTT

See product
PowerBrick Lithium Battery 12V 30Ah

config

412,33 €

QTT

See product
PowerBrick+ 12V 45Ah lithium battery

config

619,00 €

QTT

See product
PowerBrick Lithium Battery 12V 40Ah

config

522,16 €

QTT

See product
PowerBrick Lithium Battery 12V 70Ah

config

852,59 €

QTT

See product
PowerBrick Lithium Battery 24V 50Ah

config

1 307,73 €

QTT

See product
PowerBrick Lithium Battery 24V 150Ah

config

3 062,23 €

QTT

See product
PowerBrick Lithium Battery 48V 25Ah

config

1 344,00 €

QTT

See product
PowerBrick Lithium Battery 48V 72Ah

config

2 783,93 €

QTT

Accessories BATTERIES

See product
16mm² battery cable with pods

config

5,80 €

QTT

See product
Storage cabinet for 4 batteries

config

129,10 €

QTT

See product
Cabinet for 4 Pylontech batteries

config

800,62 €

QTT

See product
Storage cabinet for 8 batteries

config

182,30 €

QTT

See product
Rack wardrobe 19'' 12U wall cabinet

config

399,30 €

QTT

See product
Storage cabinet for 20 batteries

config

359,00 €

QTT

See product
19'' 32U Rack Cabinet for pylontech with supporting angle

config

1 150,00 €

QTT

See product
Pylontech battery connection cable

config

24,90 €

QTT

More info

Dali Power Tower. Maximise the efficiency of your local power generation

InnoVentum offers two unique wooden towers: Dali XII (12 m) and Dalifant XX (20 m)


Sustainability icon

Sustainability


Innoventum is the only provider of small-scale renewable energy solutions that offers wooden towers. Wood has the unique ability to capture and store carbon dioxide while reducing carbon sources. Each cubic metre of wood saves a total of 2 tonnes of carbon dioxide. In this way, each of our wooden towers reduces the amount of carbon dioxide in the atmosphere, while steel towers (currently the industry standard) are associated with significant carbon emissions during manufacturing. Wood, unlike steel, is a renewable material, making it a sustainable choice.


Functionality icon

Feature



Innoventum's solutions have a number of functional advantages, such as making wind turbines quieter, solar production more efficient, and producing energy more widely distributed throughout the day and year. their solutions have been developed in collaboration with leading European universities and research centres. Their partners and the InnoVentum team have devoted countless hours of engineering to research and development and testing.


Aesthetic icon

Aesthetic



Innoventum solutions catch the eye in our customers' gardens and in public places, some call them even the most beautiful wind turbines in Sweden! They are inspired by great works of art, architectural monuments and the world of nature. Their designs are unique and an important part of our intellectual property.


 Our wooden towers reduce the carbon footprint

Their innovative wood have been developed to adapt to all of our wind turbine solutions. Replacing standard steel towers with wooden towers significantly reduces thecarbon footprint our products.
The InnoVentum wooden towers are the result of extensive research and collaboration with leading universities in Sweden and France in the field of wood engineering. The emphasis has been on creating aesthetic wooden models that are easy to transport and erect.

Solar and wind energy are perfectly complementary: wind turbines produce mainly at night and in the coldest months of the year, while solar produces only during the day and mostly in summer.


Easier logistics





Easier Logistics



Wood is a lightweight material (compared to steel) and allows modular construction.








Continuous energy production. The hybrid solar-wind system provides energy day and night.


Reduced noise and vibration




The three modular feet of the Dali Tower Reduce The sound level and vibratory emitted by the wind turbine.
Wood is a better place phonics insulation more than steel.
Indeed, the speed at which sound waves move in the wood is lower.



Noise and vibration reduction. Wood under the microscope


Performance control


The micro-inverter system offers a technical flexibility, an integrated intelligence system, an integrated energy gain and a production control system absent in a central inverter system.
The most environmentally friendly solution on the market.
The use of wood for the Dali XII tower and the foundations targeted makes this hybrid facility the most Ecological never designed.


Sustainability. Example of a wooden Dali Power Tower



Sustainability



Our wooden towers have been designed to last more than 25 years, even in the most adverse weather conditions, such as marine sites or high winds.
The construction withstands gusts of 60 m/s (216 km/h or 135 mph) - Class I winds according to standard IEC 61400-2. These winds are classified as hurricanes.
During the 2011-2015 period, we installed several wind turbines in high-wind coastal areas and none of them sustained significant damage.






Wood and CO 2Wood and CO 2



Wood has the unique ability to capture and store CO 2 while reducing carbon sources.



There are two ways to reduce CO 2 in the atmosphere:



Reducing emissions or 'carbon sources'

Eliminate CO 2 and store it - increase 'carbon sinks'



Wood has the unique ability to do both.

Each cubic metre of wood saves a total of 2 tons of CO2.
Each cubic metre of wood used as a substitute for other building materials reduces CO 2 emissions by an average of 1.1 tonnes of CO2.
If this is added to the 0.9 tonnes of CO 2 stored in the wood, we get a total of 2 tons of CO 2.


Why cut down trees in forests



Managed forests are more efficient carbon sinks than forests left in their natural state. Younger, vigorously growing trees absorb more CO 2 than mature trees, which will eventually die and rot, bringing their CO 2 reserve back into the atmosphere, while most of the CO 2 from trees harvested from a managed forest continues to be stored throughout the life of the resulting wood product.


Installation process



The Dali XII tower (available in structural options) of the Dali PowerTower solution has a number of practical advantages:



Easy transport thanks to the modular design and the small volume of packaging.



Silent operation through noise reduction through wood elements and multi-leg design.



It is possible to climb the tower without a crane - using an electric or manual winch - which is particularly advantageous in remote locations (valid for Dali PowerTower Lite).

In most cases, we use a screw foundation for our solutions, which is an environmentally friendly alternative to the concrete foundation. The screw foundations require no movement of the soil and allow for considerable savings in water and materials. If the installation site is rocky, we propose a steel rod foundation that is pierced directly into the bedrock.
In cases where the concrete foundation is the only alternative, the amount of concrete needed for the Dali XII tower is 7 times less than a conventional tubular steel tower of the same height. This is possible thanks to the multi-leg design of the wooden tower.


Example of production on an indicative value basis provided by the manufacturer



Dalifan Tower Technical Specifications
Annual electricity production (average wind 6 m/s)38,000 kWh
Power 11 kW at 9.5 m/s
Rotor diameter /swept surface13m / 133 sqm
The diameter of the base of the tower4.8m

Sector
Approved for network requirements
Sound level at 6 m/s40 dB (A) at 80m distance

Height turn
19.8m
Annual electricity production (average wind 6 m/s)
Wind speedAnnual electricity production (average wind 6 m/s)
5m/s27,500 kWh
6 m/s38,000 kWh
7 m/s 46,500 kWh
8 m/s 52,800 kWh

* Tonote that the production of a wind turbine is completely random depending on the climate and its posistion. Production cannot therefore be guaranteed.



Production example based on indicative value provided by the manufacturer. Dali PowerTower Lite

Production example based on indicative value provided by the manufacturer. Dali PowerTower Performance


Ionoean Production Antaris 2.5 kW

Antaris wind turbine 2.5 kW

Production curve



Assembly of the Dali Power Tower

Data sheets and documentation

Specifications

Type of needMinigrids de luxe
Wind TurbinWith
Battery storageWithout storage
Number of panels10 panels
