Solar lamp - LED autonomous WU 30W 18V - Panel 80W

Wattuneed

831,40 € tax incl.

30W LED Solar Lamp - 18 Volts fully autonomous thanks to its 80Wc solar panel.

The solar panel is steerable (rotation or forward-rear tilt) to position the panel according to the sun and ensure optimal charging of the battery included in the lamppost. The solar spot is easy to fix and is completely autonomous.









More details

More info

Solar lamp - LED autonomous WU 30W 18V - Panel 80W

Fully autonomous LED 30W 18V solar lamp!



Its 30-watt solar spot is perfect for lighting your yard, parking lot, driveway or street lighting without the use of the public electricity grid.

This solar lamp is fully autonomous thanks to its 80Wc solar panel and built-in battery. Convenient to illuminate areas not connected to the grid at a lower cost or to save on your electricity consumption by using solar energy. Ideal to replace your old high-consumption spots!

  • Charge time (in full sun): 7 hours
  • Lighting time: 2 - 3 days
  • Recommended height for installation: 5-10 meters
  • Recommended distance between streetlights: 10-30 metres

Beware, the mat is not included in this product! For any request, please contact info@wattuneed.com

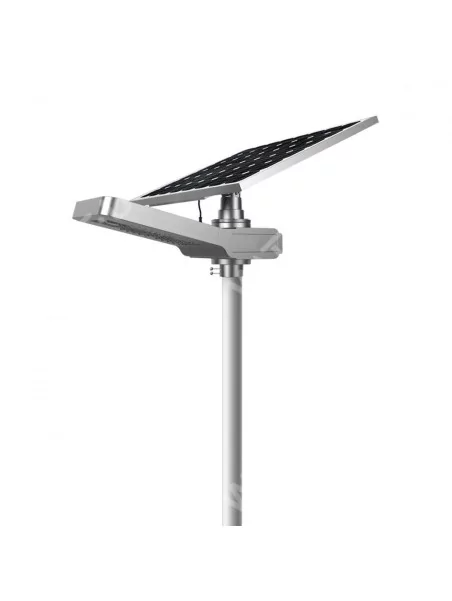

floor lamp with tiltable and rotatable solar panel

80Wc photovoltaic panel orientable



A solar panel is integrated on top of the lamppost. The peculiarity of this panel is that it is fully adjustable (360-degree rotation and forward-rear tilt) to ensure correct exposure of the entire panel surface regardless of location, unlike some fixed-panel streetlights.

  • Monicstalline cells
  • Power: 80 Wc
  • Easy and quick to install
  • Aluminium frame
  • Vmp: 18.0V
  • Imp: 2.78A
  • Voc: 21.6V
  • Isc: 3.02 A
  • Dimensions: 765 x 666 x 30 mm

Solar spot with a power of 30W

Solar spot with a power of 30W





Thanks to the 30W LED lamp, it is possible to illuminate car parks, driveways, streets,...

The recommended distance between the streetlights is between 10 and 30 metres.



Characteristics:

  • Use: street lighting
  • Color temperature: 3000-6500 K
  • Light LFlux: 3600-4200 Lm
  • Amount of LEDs: 40pcs
  • LED chip: Bridgelux
  • CCRI: maw 70Ra
  • Control voltage: 5V

340 Wh Lithium Solar Battery



340 Wh Lithium Solar Battery



The lamp has a high-capacity Lithium battery for storing the energy accumulated during the day.

Lifespan: 5 to 8 years (≥ 2000 charge and discharge cycles)

High heat resistance




Dimensions of the solar spot and the photovoltaic panel



Dimensions of the solar spot and the photovoltaic panel


 description





typeWU 80
Power of the lamp30w
solar panel80w
18V
Lithium340Wh
12.8V
LiFePo
Amount of LED60Pcs
luminous flux3600-4200Lm
Loading time (in full sun)7Hrs
LED brandBridgelux
Temperature color3000-6500K
cry≥70ra
Light control voltage5V
Light distributionBat wing with polarized light
Lighting time2-3 days
Sensor distance5-10Mr
Sensor time20-30s
Operating temperature-20 to $60The C
Lifespan≥50,000Hrs
materialHigh-quality aluminum alloy, pressurized moulded aluminium
Diameter of the post76Mr
Mounting height5-10Mr
Installation spacing10-30Mr

Example of using the 30W solar lamppost



Example of using the 30W solar lamppost

Specifications

Wind TurbinWithout
Battery storageWith storage
Number of panels1 panel
Type of needSelf-Use Lighting Kits
Type de LEDKit éclairage autonome
Voltage12V
Lighting power30W
TechnologyLithium
Panel typeRigids
CellsMonocrystalline
Max. Power - Wp80 Toilet
Open circuit voltage (Voc)21.6 V
Short circuit current (Isc)3.02 A
Max. power current (Imp)2.78 A
Max. power voltage18 V
BatteryKit with battery
