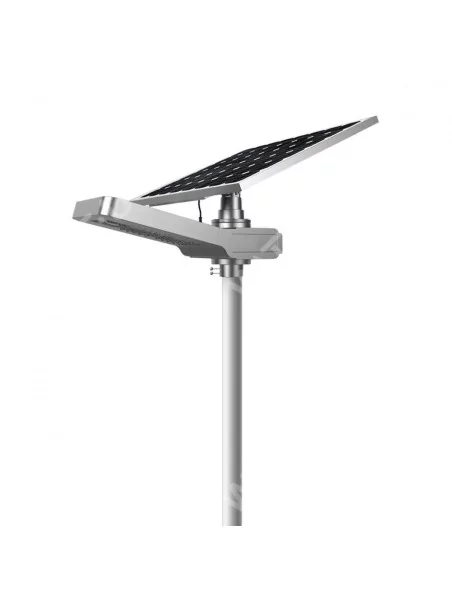

    Solar lamp post - LED autonomous WU 40W 18V - Panel 100W
    Solar lamp post - LED autonomous WU 40W 18V - Panel 100W
    Solar lamp post - LED autonomous WU 40W 18V - Panel 100W
    Solar lamp post - LED autonomous WU 40W 18V - Panel 100W
    Solar lamp post - LED autonomous WU 40W 18V - Panel 100W

    Solar floor lamp - AUTONOMOUS LED WU 40W 18V - Panel 100W

    €723.00
    Tax included
    09948-20W
    0712971133686

    Led solar lamp 40W - 18 Volts fully autonomous thanks to its solar panel 100Wp.

    The solar panel is steerable (rotation or forward-backward tilt) to position the panel according to the sun and ensure optimal recharging of the battery included in the floor lamp. The solar spot is easy to fix and is completely autonomous.



    100% secure payments
    Last items in stock

    Solar floor lamp -...

    €723.00

    Lampadaire solaire - LED autonome WU 40W 18V - Panneau 100W

    Solar floor lamp LED 40W 18V fully autonomous!



    Its solar spot with a power of 40 Watt is perfectly suitable for the lighting of your yard, parking, driveway or as street lighting without recourse to the public electricity network.

    This solar lamp is fully autonomous thanks to its 80Wp solar panel and its integrated battery. Convenient to light up places not connected to the grid at a lower cost or to save on your power consumption by using solar energy. Ideal to replace your old high-consumption spots!

    • Charging time (in direct sunlight): 7 hours
    • Lighting time: 2 - 3 days
    • Recommended height for installation: 5-10 meters
    • Recommended distance between streetlights: 10-30 meters

    Be careful, the matte is not included in this product! For any request, please contact info@wattuneed.com


    lampadaire avec panneau solaire inclinable et rotatif

    100Wp steerable photovoltaic panel



    A solar panel is integrated on the top of the floor lamp. The peculiarity of this panel is that it is fully adjustable (360° rotation and front-rear inclination) to ensure correct exposure of the entire panel surface regardless of its location, unlike some fixed panel floor lamps.

    • Monocrystalline cells
    • Power: 100 Wc
    • Easy and quick to install
    • Aluminum frame
    • Vmp: 18.0V
    • Imp: 2.78A
    • Voc: 21.6V
    • Isc: 3.02 A
    • Dimensions: 915 x 666 x 30 mm

    Spot solaire d'une puissance de 30W

    Solar spot with a power of 30W



    Thanks to the LED lamp with a power of 30W, it is possible to illuminate parking lots, alleys, streets,...

    The recommended distance between the streetlights is between 10 and 30 meters.



    Characteristics:

    • Use: street lighting
    • Color temperature: 3000-6500 K
    • LSE luminous flow: 5000-5600 Lm
    • LED amount: 40pcs
    • LED chip : Bridgelux
    • CIRB: maw 70Ra
    • Control voltage: 5V

    Batterie solaire Lithium de 424 Wh



    424 Wh Lithium Solar Battery



    The lamp has a high capacity Lithium battery for the storage of energy accumulated during the day.

    Service life: 5 to 8 years (≥ 2000 charging and discharging cycles)

    High heat resistance




    Dimensions of the solar spot and photovoltaic panel



    Dimensions du spot solaire et du panneau photovoltaïque


    description



     WU 65WU 80WU 100WU 150WU 100MORE
    power65W/18V80W/18V100W/18V150W/18V100W*2pcs/18V
    hardwareMonocrystalline siliconMonocrystalline siliconMonocrystalline siliconMonocrystalline silicon
    Monocrystalline silicon
    Solar cell efficiency19-20%19-20%19-20%19-20%19-20%
    capacity210WH340 WH420WH575WH650WH
    Charging cycle time2000 times2000 times2000 times2000 times2000 times
    luminous flux3000-3500lm4500-5000lm6000-6500lm7200-7500lm8400-9600lm
    Light output20W30W40W20060W
    Amount of LEDs105 pieces105 pieces105 pieces105 pieces105 pieces
    LED chipBridgelux
    Color temperature3000-6000K
    Irc≥70Ra
    Lamp head materialAluminum alloy
    Elevation angle12° (be careful with the use of Dialux)
    Lifetime50000hrs
    Light control voltage5V
    Light distributionBatwing lens with polarized light
    Beam angleX axis: 140° Y axis: 50
    Lighting time (full charge)2-3 rainy days
    Operating temperature-20°C~60°C
    Upper mast diameter80mm
    Mounting height5-8m 7-12m7-12 m
    Facility spacing10-20m20-30m

    Example of the use of the 30W solar floor lamp



    Exemple d'utilisation du lampadaire solaire 30W

    09948-20W
    2 Items

    Data sheet

    Max. power - Wp
    100 Wc
    Open circuit voltage (Voc)
    21.6 V
    Type of need
    Self-Use Lighting Kits
    Battery storage
    With storage
    Short-circuit current (Isc)
    3.02 A
    Wind turbine
    Without
    Max. power voltage (Vmp)
    18 V
    Max. power current (Imp)
    2.78 A
    Number of panels
    1 panel
    LED type
    Kit éclairage autonome
    Voltage
    12V
    Lighting power
    40W
    Technology
    Lithium
    Battery
    Kit with battery
    Panel type
    Rigids
    Cells
    Monocrystalline

    Specific References

    UPC
    712971133686
    EAN13
    0712971133686
