Wind turbine/solar kit 800VA configurable

Off-grid hybrid kit wind and solar for off-grid application
 - Solar panel monocrystalline 275Wp BenQ
 - Hybrid Solar regulator
 - 20A PWM charge regulator for the panels
 - Victron Phoenix Inverter 800VA
 - Windturbine 400W
 - Battey 2X GEL 12V100Ah
 - Cable and connectors

More info

More details

Équipements
Descriptions équipements
Wind turbine/solar kit 800VA configurable

Summary

See details

By buying this product you can collect up to 165 loyalty points. Your cart will total 165 points that can be converted into a voucher of 49,50 €.


Customize

Choice of panels

184.21
Sélectionné

Polycrystalline Solar Panel TrinaSolar TSM - DD05A.05 (II) 300Wc

225.39
Sélectionné

Rec N 320Wc monocrystalline solar panel

222.13
Sélectionné

BenQ Solar panel 300Wp monocrystalline full black

151.02
Sélectionné

Solar panel TrinaSolar poly 270Wc

173.37
Sélectionné

Solar panel LONGi Solar 300Wp monocrystalline black frame

248.5
Sélectionné

Solar Panel BenQ AUO SunBravo 320Wc single-crystal one full black

254.64
Sélectionné

Systovi V-SYS solar panel 300Wp m

See product
Polycrystalline Solar Panel TrinaSolar TSM - DD05A.05 (II) 300Wc

config

184,21 €

QTT

-
See product
Rec N 320Wc monocrystalline solar panel

config

225,39 €

QTT

-
See product
BenQ Solar panel 300Wp monocrystalline full black

config

222,13 €

QTT

-
See product
Solar panel TrinaSolar poly 270Wc

config

151,02 €

QTT

-
See product
Solar panel LONGi Solar 300Wp monocrystalline black frame

config

173,37 €

QTT

-
See product
Solar Panel BenQ AUO SunBravo 320Wc single-crystal one full black

config

248,50 €

QTT

-
See product
Systovi V-SYS solar panel 300Wp m

config

254,64 €

QTT

-

The choice of the inverter

338.8
Sélectionné

Victron Phoenix VE.Direct 12/24/48V - 800VA

116.16
Sélectionné

Victron Phoenix 12V / 24V / 48V - 250VA

150.04
Sélectionné

Victron Phoenix 12V / 24V / 48V - 375VA

217.85
Sélectionné

Phoenix VE.Direct 12V / 24V / 48V - 500VA

See product
Victron Phoenix VE.Direct 12/24/48V - 800VA

config

338,80 €

QTT

-
See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

116,16 €

QTT

-
See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

150,04 €

QTT

-
See product
Phoenix VE.Direct 12V / 24V / 48V - 500VA

config

217,85 €

QTT

-

Charge controller

39.9
Sélectionné

Epever PWM LandStar Serie 12V / 24V - 20 A

28.2
Sélectionné

Solar Controller SRNE PWM HP 24V 20A

76.6
Sélectionné

Solar Controller MPPT 20A SRNE

115
Sélectionné

Epsolar MPPT XTRA-N Serie 20A

See product
Epever PWM LandStar Serie 12V / 24V - 20 A

config

39,90 €

QTT

-
See product
Solar Controller SRNE PWM HP 24V 20A

config

28,20 €

QTT

-
See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

-
See product
Epsolar MPPT XTRA-N Serie 20A

config

115,00 €

QTT

-

Distance between the panels and the inverter

See product
2X4mm² Solar cable with MC4 (by the metre)

config

13,80 €

QTT

-
See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

7,30 €

QTT

-

Choice of batteries

199
Sélectionné

Ultracel GEL battery 12V 100Ah

294.43
Sélectionné

Ultracel GEL battery 12V 150Ah

409.38
Sélectionné

Ultracel GEL battery 12V 200Ah

534.4
Sélectionné

Ultracel GEL battery 12V 250Ah

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

-
See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

-
See product
Ultracel GEL battery 12V 200Ah

config

409,38 €

QTT

-
See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

-

Wind turbine

See product
400W Wind turbine (600W Pmax)

config

645,00 €

QTT

-
See product
Solar cable 4mm² (sold by the meter)

config

11,00 €

QTT

-

Box set pre mounted

726
Sélectionné

Pre-wired box

See product
Pre-wired box

config

726,00 €

QTT

-

More info

"Hybride kit wind and solar for off-grid application"



Composition



Solar panel TrinaSolar 270Wp

TrinaSolar polycrystalline module 270Wp

Nominal power: 270Wp

This model is a panel composed of 60 polycrystalline solar cells.

  • Certified to withstand challenging environmental conditions :
    130 km/h wind load (2400 Pa)
    900 kg snow load per module (5400 Pa)
    35 mm hail stones at 97 km/h
    Ammonia resistance
    Salt mist resistance
    resistance to sand and dust abrasion
    Power advantage: 25 years of linear power guarantee, more than 97.5% rated power during the first year
  • Highly reliable due to stringent quality control
  • Excellent low light performance on cloudy days, mornings and evenings : advanced surface texturing, back surface field, selective emitter



Number of Cells60
Dimensions1650 x 992 x 35 mm
Weight18.6 kg
Power270 Wp
GlassHigh Transparency, Anti-Reflective, AR Coated and Heat Tempered Solar Glass - 3.2mm
CablePhotovoltaic Technology Cable 4.0 mm², 1000 mm
ConnectorMC4 Compatible
Voltage at Pmax (Vmp)28,6
Current at Pmax (Imp)6,89
Short-Circuit Current (Isc)7,35
Open-Circuit Voltage (Voc)35,5
Module Efficiency16,2%
Operating Module Temperature-40℃ à + 85℃
Maximum System Voltage1000V (IEC / UL)
Max Series Fuse Rating15A
J-BoxIP 65 or IP 67
Power Tolerance0 ~ +5 W
Temperature Coefficient of Isc0,05%/K
Temperature Coefficient of Voc- 0,32%/K
Temperature Coefficient of Power- 0,41%/K
NOCT (Tair 20℃ ; Irradiance 800W/m2 ; Wind 1m/s)44±2 ℃











Solar Hybrid Controller

regulateur hybride

 Features :

  • Exclusive use of three-phase soft brake technology within the industry, protect wind turbine more perfectly
  • Menu-driven operation, no manual, can directly manipulate, simple and easy to understand
  • Over-speed protection of the wind turbine, the turbine can effectively self-protection in windy conditions, to extend the life of the entire system
  • Temperature display, real-time monitoring controller operating environment
  • Integration of multiple voltage, current, power meter, real-time monitoring of various parts of the electrical parameters
  • Warranty 2 years, better service for end customers and integrators
  • The majority parameters of the system can be setted by user, designed with flexibility better adapt to different systems









Rated Voltage24V
Battery maximum current30A
Rated power of solar panels300W
Rated power of wind power600W
Maximum speed of wind turbines100 - 2000r / min (adjust able)
Series of wind turbines6 - 35 (adjust able)
Time of brake renewing of wind turbines10 min - 60 min (adjust able)
Float charging voltage28V (adjust able)
Charge return voltage25V (adjust able)
Over-discharge protection voltage20V (adjust able)
Over-discharge recovery voltage22V (adjust able)
Compensation factor of charging temperature4mV/°C/2V (adjust able)  -20 - 65°
Load output ( two independant outputs)Normally closed, normally open, light-control, time-control
Load output period1 - 15 hour (ajustable)

Load output power

0 - 100% (LED dedication)

Case size

127 mm X 150 mm X 75 mm

Case material

Milky/Black paint



regulateur de charge epsolar pwm 20A

Solar regulator LS2024B PWM - 20A

Epsolar’s new generation programmable solar charge controller 20A. Adopt aluminum heat sink which enables the reliability in high temperature enviroments.



  • Capacity: 20A
  • Operating voltage: 12V or 24V
  • Temperature compensation
  • Warranty: 2 years
  • Technology: PWM










Windturbine 400W 24V (600W Pmax)



- Windturbine regulator

Provided with a wind / solar hybrid regulator.

The wind turbine produces energy starting from a 15km/h wind. This current is regulated by an included charge regulator, it is then stored in batteries of 12 or 24 volt (not included)





















batterie GEL 100Ah

2X Battery Gel 100Ah

 Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety
A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer
retention time.

  • rated voltage: 12V
  • capacity : 100Ah
  • Dimensions : 327 x 173 x 212 mm
  • weight : 31 Kg





 Cycle life compared to the depth of discharge

cycles de vie batterie gel 65Ah







Nominal Voltage12V
Capacity100Ah
Rated Capacity

104.0 AH/5.20A : (20hr, 1.80V/cell, 25°C / 77°F)

100.0 AH/10.0A : (10hr, 1.80V/cell, 25°C / 77°F)

88.0 AH/17.6A : (5hr, 1.75V/cell, 25°C / 77°F)

76.2 AH/25.4A : (3hr, 1.75V/cell, 25°C / 77°F)

63.8 AH/63.8A : (1hr, 1.60V/cell, 25°C / 77°F)

Max. Discharge Current1000A(5sec)
Internal ResistanceApprox.5,9m?
Operating Temp. Range

Discharge: -20?~55?

Charge     : 0?~40?

Storage    : -20?~50?

Cycle Use

Charging Currente: ? 24.0A

Voltage :14.4V~15V

Temperature compensation :-30mV/?

Stand-by Use

Charging Current:No limit
Voltage:13.6V~13.8V
Temperature compensation:-20mV/°C

Design Life12 years








optional

Battery of 2,7 kWh to 7,2 kWh








convertisseur Victron Phoenix 800VA

Inverter Victron Phoenix 800VA Pur sine 24V



Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

  • Pure Sine wave power inverter
  • Extra start-up power
  • To transfer the load to another AC source: the automatic transfer switch
  • Robust design and quality
  • Remote on/off switch
  • Peak power : 1600W















Solar cable 2x4mm² : 10m

câble solaire





To connect the panel to the regulator

Solar cable 2x6mm² : 2m

To connect the battery to the windturbine regulator

Cable 16mm² :

To connect the batteries together















Coffret

In option : Pre-wired box

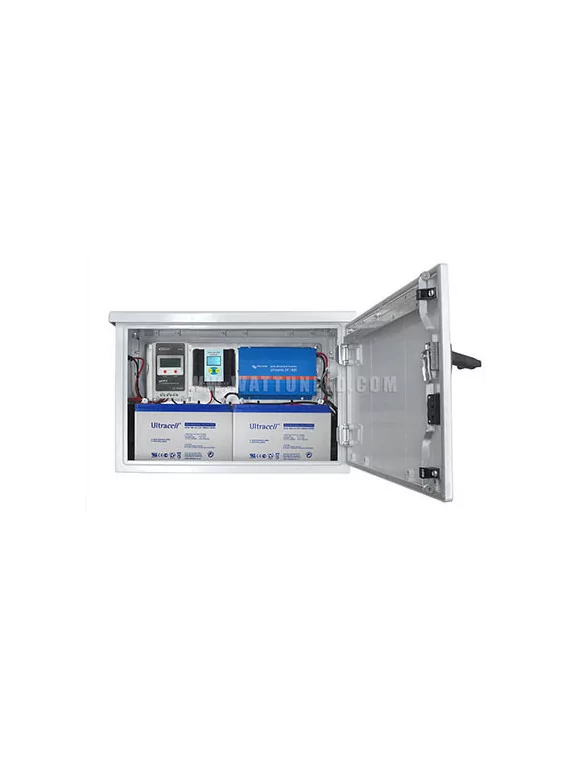

This totally pre-wired box include the kit componants: 2 batteries, solar regulator, windturbine regulator and a victron inverter.

It incorporates a EPsolar Tracer BN 20A MPPT charge controller in supplement instead of the basic PWM regulator.
This solid and robust box protects the devices and the batteries.



Zoom sur le coffret éolien solaire



Some associated products :

Kit de fixation de panneaux solaires

Mounting system - kit

Mounting system with all material needed include (for tiles roof, slate roof, free-land system,...).

>> View all mounting system kit



Specifications

Battery storageWith storage
Type of needOff-grid, Garden / Garden's hut
Output Kit voltage230V
Number of panels1 panel
Wind TurbinWith
Voltage230V
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid

You want a detailed study by mail?

Our integrated software allows you to generate, in less than 2 minutes,
an offer as well as a satellite study of your sunshine:

  • Estimated solar production
  • Amortization table
  • Sunlight study
  • Details of selected articles
  • ...
