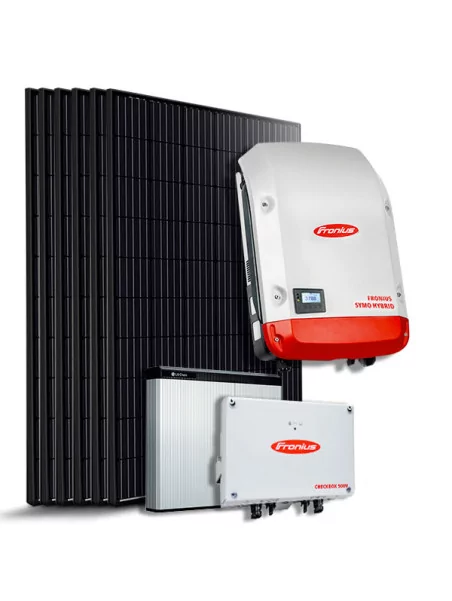

5 kVA hybrid kit with high voltage storage

Wattuneed

10 433,15 € tax incl.

Add to cart

Our three-phase self-consumption kit incorporates the latest technological developments.
It incorporates an inverter, the latest innovation from Austrian market leader FR-NIUS and Lithium batteries from Korean manufacturer LG.

More details

Équipements
Descriptions équipements
Customize

Choice of panels

116.27
Sélectionné

TrinaSolar Honey 290Wc Solar Panel

164.7
Sélectionné

Solar panel JNL Solar monocrystallin 320 Wc full black

140.05
Sélectionné

TrinaSolar 330 Wc Honey Black Solar Panel

163.35
Sélectionné

Solar panel Q.Cells DUO-G9 335Wc Full Black

441.65
Sélectionné

LG 365Wc NeON R monocrystalline solar panel

160.85
Sélectionné

TrinaSolar 370Wc Honey Solar Panel

188.95
Sélectionné

Solar panel JNL Solar monocrystallin 375 Wc

220.1
Sélectionné

Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

194.68
Sélectionné

TrinaSolar Vertex 385Wc Full Black Solar Panel

204.26
Sélectionné

TrinaSolar Vertex S 390Wc Full Black Solar Panel

186.65
Sélectionné

Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

221.15
Sélectionné

Hyundai 395 Wc Full Black Solar Panel

199.74
Sélectionné

TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

See product
TrinaSolar Honey 290Wc Solar Panel

config

116,27 €

QTT

See product
Solar panel JNL Solar monocrystallin 320 Wc full black
Out of stock Replenishment : 21/06/2021

config

164,70 €

QTT

See product
TrinaSolar 330 Wc Honey Black Solar Panel

config

140,05 €

QTT

See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

163,35 €

QTT

See product
LG 365Wc NeON R monocrystalline solar panel

config

441,65 €

QTT

See product
TrinaSolar 370Wc Honey Solar Panel

config

160,85 €

QTT

See product
Solar panel JNL Solar monocrystallin 375 Wc

config

188,95 €

QTT

See product
Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

config

220,10 €

QTT

See product
TrinaSolar Vertex 385Wc Full Black Solar Panel

config

194,68 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

204,26 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

186,65 €

QTT

See product
Hyundai 395 Wc Full Black Solar Panel

config

221,15 €

QTT

See product
TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

config

199,74 €

QTT

Inverter selection

2642.64
Sélectionné

Fronius Symo Hybrid 5 kVA Three-phase

See product
Fronius Symo Hybrid 5 kVA Three-phase

config

2 642,64 €

QTT

Choice of mounting system

55
Sélectionné

Tile roof attachment kit

49.1
Sélectionné

Slate roof attachment kit

127.07
Sélectionné

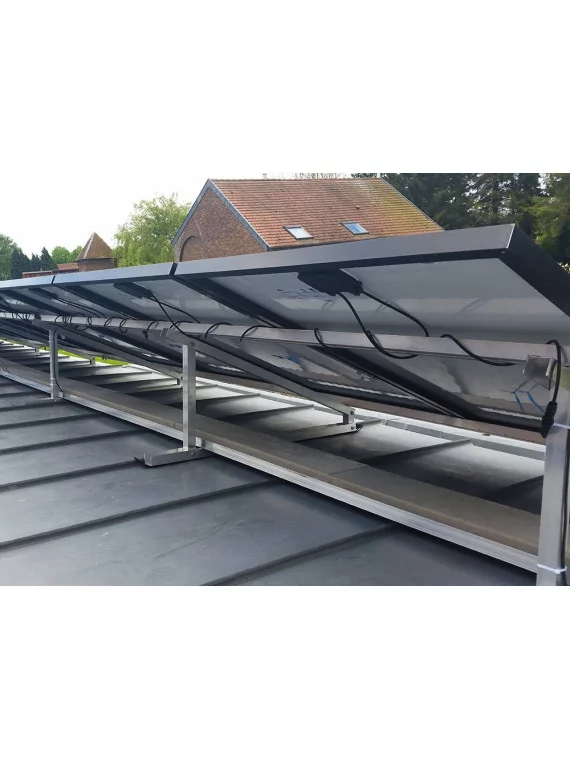

Fixing kit on ground structure

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Fixing kit on ground structure

config

127,07 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

Accessories

418.7
Sélectionné

Fronius Checkbox 500V

See product
Fronius Checkbox 500V

config

418,70 €

QTT

METER SELECTION

Choice of batteries

5655.4
Sélectionné

LG lithium battery RESU7H 400V - 7 kWh

6658.5
Sélectionné

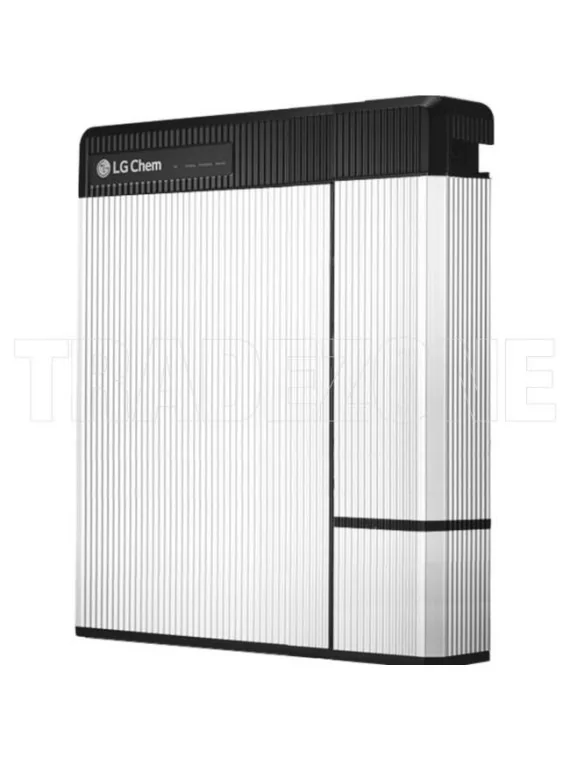

Lithium battery LG RESU10H 400V - 10 kWh

7198
Sélectionné

Battery Lithium Fronius 4.5 / 6 / 7.5 / 9 / 10.5 / 12 - 3.6 to 9.6 kWh

See product
LG lithium battery RESU7H 400V - 7 kWh

config

5 655,40 €

QTT

See product
Lithium battery LG RESU10H 400V - 10 kWh

config

6 658,50 €

QTT

See product
Battery Lithium Fronius 4.5 / 6 / 7.5 / 9 / 10.5 / 12 - 3.6 to 9.6 kWh

config

7 198,00 €

QTT

Wiring and connections

See product
2X4mm2 solar cable with Type MC4 (sold by the meter - 15m)

config

35,81 €

QTT

See product
2X4mm2 solar cable with MC4 type (sold per metre)

config

4,60 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
XVB 3G2.5 mm - 1m electric cable

config

1,80 €

QTT

See product
XVB 3G4 mm - 1m electric cable

config

3,55 €

QTT

See product
XVB 3G6 mm - 1m electric cable

config

4,90 €

QTT

See product
XVB 3G10 mm - 1m electric cable

config

8,50 €

QTT

See product
XVB 5G2.5 mm - 1m electric cable

config

3,00 €

QTT

See product
XVB 5G4 mm - 1m electric cable

config

4,80 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

1,37 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,10 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

AC guards and accessories

See product
Schneider 16A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 20A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 25A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 40A tetra circuit breaker

config

53,40 €

QTT

See product
Schneider Breaker tetra 50A

config

183,68 €

QTT

See product
A three-phase AC protection package

config

169,70 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC ZJBENY box set with 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 230V Lightning Box

config

125,25 €

QTT

PROTECTIONS AND ACCESSORIES DC

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
32A DC double surge protector ZJBENY

config

231,00 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

551,98 €

QTT

See product
DC Cut-out and lightning protection box 20A

config

262,85 €

QTT

See product
DC Cut-out and protection box 40A

config

457,03 €

QTT

See product
Lightning protection box with 2 input

config

471,00 €

QTT

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

270,00 €

QTT

More info

5 kW Frunius Hybrid Kit



Our three-phase self-consumption kit incorporates the latest technological developments. It incorporates an inverter, the latest innovation from Austrian market leader FR-NIUS and Lithium batteries from Korean manufacturer LG.


The Fronius Symo Hybrid is the heart of the system. It manages energy flows for 24-hour self-consumption. This inverter incorporates a battery charger with MPPT function, a hybrid inverter, intelligent battery management and a monitoring system. The inverter exists in variations of 3.0 to 5.0 kW, and is able to transform up to 8.0 kW. It is able to power both the home and store the excess in the battery fleet. Multi Flow Technology, the intelligent energy flow management system, supports AC-, DC- and AC and DC battery coupling. The result is a maximum self-consumption rate and therefore a better cost-effectiveness of the installation. You enjoy your solar production day and night.


The Fronius Smart Meter is a two-way counter for optimizing self-consumption and tracing the focus load curve. This meter communicates with the inverter to optimize energy flows according to production and consumption. It ensures a perfectly adapted management of the different energy flows thus optimizing the entire energy management system It allows rapid dynamic regulation to tend towards "zero injection". Combined with Fronius Solar.web, the Fronius Smart Meter provides a clear representation of clean electricity consumption.


This kit contains



JNL SOLAR 300Wp Monocrystalline Solar Panel Full Black (this product is subject to change depending on the product technology and your panel selection)



Solar panel JNL Solar Monocristallin 300 Wc Full Black

JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of research and development rings and the manufacture of solar modules and solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technology and craftsmanship.





Technical and electrical data
Peak Power (Pmax)300
Module efficiency18,33%
Max. Power Tension Vmp (V)33,54
Max. Power Current Amplifier (A)8,95
Empty tension Voc (V)39,53
Current short-circuit Isc (A)9,6
Power tolerance-0, 10W
Maximum system voltage (V)DC 1000V
Number of bypass diodes3
Grilled fuse current15A
STC: Irradiance 1000W/m2, Cell temperature 25oC, Air mass AM1.5 Measurement tolerance: -3%
Potentially induced degradation (PID) free, IEC61215, IEC61730, increased snow load up to 5400Pa.
Dimensions [mm]1650x992x35
Weight (kg)18,5

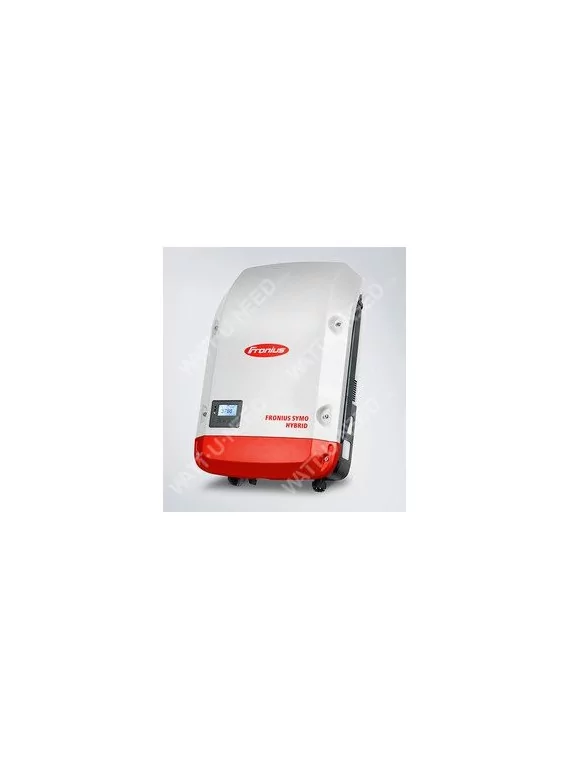

Fronius Symo Hybrid 5 KVA Tree-phase

Fronius Symo Hybrid 5 KVA Tree-phase



The Fronius Symo Hybrid temporarily stores excess energy in a battery. This is THE solution for 24 hours of sunshine a day, even in the event of a power outage.
Guaranteed product 5 years.
Warranty can be extended to 10, 15 or 20 years.



Entry dataSYMO Hybrid 5.0-3-S
Max input power (Idc max.)8.0 kW
Maximum entry current (Idc)1x16A
Current short-circuit max. From the module field24 A
Min. (Udc min.)150 V
Injection start tension (Udc start)200 V
Nominal input voltage (Udc,r)595 V
Maximum age (Udc max)1000 V
MPP voltage range (Umpp min-Umpp max)320-800V
Number of MPP tracker1
Number of connectors2
Exit data
AC rated output power (Pac,r)5000W
Maximum output power.5000VA
Max sourcing power. From the area5000VA

Lithium Battery LG RESU 7H 400V - 7kWh



Lithium Battery LG RESU 7H 400V - 7kWh



LG Lithium Solar Battery (LI-IO) RESU.

Load during off-peak hours, discharge during peak periods.
Discharge during a power outage, works as backup power.
Store solar energy produced by photovoltaic panels for future use.









CategoryRESU7H
Electrical featuresTotal energy capacity (battery)7.0 kWh
Useful power capacity (battery)6.6 kWh
Battery capacity63 Ah
Voltage range of the dimmer interface350-450V DC
Charge current/continuous discharge8.5A@420V /10A@350V
Current of charge / discharge crest13.5A@370V for 5 seconds.
Charge power / max discharge.3.5kW
Peak power5kW for 5 seconds.
Return battery return> 90% (under specific conditions)
Communication interfaceRS485
DC DisconnectionBreaker (600V, 25A)

Fronius Checkbox 500VFronius Checkbox 500V



The Fronius Checkbox 500V guarantees the reliability of the Fronius Energy Package with LG Chem RESU H, even in exceptional situations.
Because the battery is designed for 500V and the inverter is designed for 1000V, the Fronius Checkbox 500V measures voltage and separates the battery in the event of an unlikely failure.
The inverter and battery cannot be connected directly, as surges can occur in the event of an error, which can lead to an unsecured state.





Electrical specifications
Maximum input voltage
inverterUdc max. in_INV1,000 V
batteryUdc max. out_BAT500 V
Maximum currentIdc max. in/max. Out16 A
Clean consumption450 V1.9 W
Dimensions and weights
Dimensions H x l x P26 x 19 x 7.5 cm
weight1.34 kg



Specifications

Battery storageWith storage
Number of panels12 panels
Monophasé / TriphaséTriphasé
BatteryKit with battery
Inverter power5000VA
