Camping car kit 300Wc - 12V - configurable

Wattuneed

332,78 € tax incl.

Add to cart

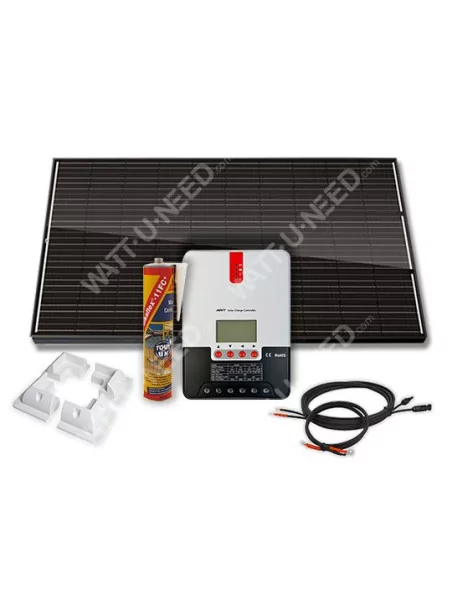

Autonomous solar kit for motorhomes or any vehicle, where it is just necessary to recharge batteries.

- 1X Solar panel: 300Wc
- solar cable 2X4mm2 5m
- 2X4mm2 2m battery cable
- MC4 type cable set on cable
- Tracer A 20A Charge Regulator
- Fixations: Mounting glue, 4 corners of fasteners and 2 side fasteners





More details

Équipements
Descriptions équipements
Customize

Choice of panels

111.13
Sélectionné

Solar Panel JNL solar polycrystalline 280 WC

135.81
Sélectionné

Solar panel JNL Solar monocrystallin 320 Wc full black

181.5
Sélectionné

Solar panel Q.Cells DUO-G6 335Wc mono Full Black

316.04
Sélectionné

LG 340Wc NeON 2 monocrystallin Full Black solar panel

200
Sélectionné

Solar panel Q.Cells DUO 360Wc G8 mono

441.65
Sélectionné

LG 365Wc NeON R monocrystalline solar panel

169.32
Sélectionné

TrinaSolar 370Wc Honey Solar Panel

211
Sélectionné

Hyundai 390 Wc Full Black Solar Panel

See product
Solar Panel JNL solar polycrystalline 280 WC

config

111,13 €

QTT

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

135,81 €

QTT

See product
Solar panel Q.Cells DUO-G6 335Wc mono Full Black

config

181,50 €

QTT

See product
LG 340Wc NeON 2 monocrystallin Full Black solar panel

config

316,04 €

QTT

See product
Solar panel Q.Cells DUO 360Wc G8 mono

config

200,00 €

QTT

See product
LG 365Wc NeON R monocrystalline solar panel

config

441,65 €

QTT

See product
TrinaSolar 370Wc Honey Solar Panel

config

169,32 €

QTT

See product
Hyundai 390 Wc Full Black Solar Panel

config

211,00 €

QTT

Choice of the charge controller

See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

See product
Epsolar MPPT XTRA-N Serie 20A

config

115,00 €

QTT

See product
Epever MPPT XTRA-N Serie 30A

config

131,50 €

QTT

See product
Solar Controller MPPT 30A SRNE

config

96,48 €

QTT

See product
Solar Controller SRNE PWM HP 24V 20A

config

28,20 €

QTT

See product
Solar Controller SRNE PWM HP 24V 30A

config

34,30 €

QTT

230V converter

See product
Victron multi 12V / 24V / 48V - 5000VA 800

config

890,56 €

QTT

See product
Victron MultiPlus 12V / 24V / 48V - 500VA to 1200VA

config

522,72 €

QTT

See product
Victron MultiPlus-II 48 V 3000 and 5000VA

config

1 282,60 €

QTT

See product
Victron MultiPlus 12V - 800VA

config

648,56 €

QTT

See product
Victron multi 12V / 24V / 48V - 5000VA 800

config

890,56 €

QTT

See product
Victron Phoenix Converter 12V / 24V / 48V - 1200VA

config

496,10 €

QTT

See product
Victron Phoenix Inverter 1200 to 5000VA

config

765,93 €

QTT

See product
Victron Phoenix Inverter 48V - 5000VA

config

2 616,00 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

116,16 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

150,04 €

QTT

See product
Phoenix VE.Direct 12V / 24V / 48V - 500VA

config

217,85 €

QTT

See product
Victron Phoenix VE converter. Direct 12/24/48V - 1200VA

config

496,10 €

QTT

See product
Victron Phoenix VE converter. Direct 12/24/48V - 800VA

config

338,80 €

QTT

See product
Victron charger Phoenix smart IP43 12/24V

config

484,00 €

QTT

Accessories

See product
Victron Cyrix Battery Combiner - 120A / 230A / 400A

config

54,45 €

QTT

See product
Victron Battery protect BP-65 BP-100 BP-220

config

49,60 €

QTT

See product
Victron Orion DC-DC Converters - isolated

config

79,91 €

QTT

Choice of batteries

See product
12.8V 55Ah lithium battery MaxLi

config

486,00 €

QTT

See product
12.8V 100Ah lithium battery MaxLi
Out of stock

config

698,07 €

QTT

See product
AGM battery Ultracell 12V 7Ah

config

14,64 €

QTT

See product
AGM battery Ultracell 12V 12Ah

config

26,62 €

QTT

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

Wiring and connections

See product
2X4mm2 solar cable with Type MC4 - 10m

config

24,79 €

QTT

See product
Battery cable 2x4mm2 - 2m

config

9,90 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,10 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

1,37 €

QTT

See product
1x16mm2 cable (sold per metre)

config

4,40 €

QTT

See product
1x25mm2 cable (sold per metre)

config

5,90 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double MC4-like connector male & female

config

16,00 €

QTT

See product
Triple MC4-like connector male + female

config

24,00 €

QTT

See product
25mm² battery cable with pods

config

9,00 €

QTT

See product
16mm² battery cable with pods

config

5,80 €

QTT

See product
Cable Shoe / Cable Lug Tinned Copper 25mm² X M8

config

0,99 €

QTT

Choice of mounting system

See product
Mounting glue Sikaflex Pro 300ml

config

9,90 €

QTT

See product
Square brackets for mouting panel on motorhome

config

32,27 €

QTT

See product
2 fixations for mouting panel on motorhome

config

24,00 €

QTT

See product
2 inputs box for mobilhome

config

9,60 €

QTT

See product
Aluminum rail for mounting solar panels (40mm x 40mm)

config

7,04 €

QTT

See product
Aluminium track (1m)

config

12,10 €

QTT

See product
End fastening clamp : 30mm to 50mm

config

1,25 €

QTT

See product
Solar panel attachment medium clam: 30 mm to 50 mm

config

1,25 €

QTT

More info

Recharge the batteries of your motorhome, caravan, boat...



Complete 300Wc kit for campervan with monocrystalline solar panel.
The panel and battery wiring is in 4mm2 double insulation so as to guarantee a charge without any losses.
Loading the battery in 3 steps ensures an extremely clean charge of the battery.


Composition





JNL Solar 300 Wc Monocristallin Full black solar panel



JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of research and development rings and the manufacture of solar modules and solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technology and craftsmanship.
JNL Solar has participated in national and international energy investment plans, such as the United States, Germany, France, Spain, Japan, India, South Africa, South Korea, Canada, etc. and all power plants are successful on the grid and production wells.





Characteristics



Peak Power (Pmax)300
Module efficiency18,33%
Max. Power Tension Vmp (V)33,54
Max. Power Current Amplifier (A)8,95
Empty tension Voc (V)39,53
Current short-circuit Isc (A)9,6
Power tolerance-0, 10W
Maximum system voltage (V)DC 1000V
Number of bypass diodes3
Grilled fuse current15A
STC: Irradiance 1000W/m2, Cell temperature 25oC, Air mass AM1.5 Measurement tolerance: -3%
Potentially induced degradation (PID) free, IEC61215, IEC61730, increased snow load up to 5400Pa.
Dimensions [mm]1650x992x35
Weight (kg)18,5
Type of solar cells156.75mm x 156.75mm (5BB)
Junction boxIP67
Mechanical loading5400Pa
FrameworkBlack anodized aluminium
Cables4mm2, 1000mm
ConnectorMC4 or compatible
Glass3.2mm
Operating temperature-40C - 85C
Nominal temperature of the measuring cell47 degrees Fahrenheit

Solar Regulator MPPT 20A SRNE



The new range of SRNE solar regulators offers an optimal MPPT tracking efficiency of 99.9% and a charge efficiency of 15 to 20% greater than a PWM.

With advanced double-peak or multiperiod tracking technology, when the solar panel is shaded or part of the panel, causing several spikes on the I-V curve, the controller is always able to accurately track the maximum power point.



Characteristics



ModelML2420
Tension of the system12V/24V auto
Empty loss0.7W to 1.2W
Battery Voltage9 to 35
Maximum solar input voltage100V (25OC), 90V (-25C)
Maximum voltage range at power pointBattery voltage - 2V to 75V
Nominal charge current20A
Nominal charge current20A
Maximum capacity load capacity10,000f
Maximum input power of the photovoltaic system260W / 12V
520W / 24V
Conversion efficiency≤ 98%
Effectiveness of MPPT treatment> 99%

Wiring and connections



câble solaire

The kit is equipped with special 4mm2 double insulation solar cable. This important section ensures that it does not heat up even in the event of heavy production, so you can be sure to have an optimal battery charge by minimizing losses to the maximum.

5 m of cable with mc4-type connectors set on the cable are intended to connect the panel to the charging regulator. Mc4-type connectors ensure a perfectly watertight connection between the panel and the cable, and also make it easy to remove the panel

2m battery cable with crimped battery pod are also provided.










To connect your panels in parallel

Mc4 type male-female connector






Vehicle attachments



The kit is delivered complete, the assembly is limited to the attachment of the panel on the vehicle as well as the wiring of the load regulator

Colle de montage

coins de fixations panneaux solaires camping car

4 corners of fasteners to install a solar panel on the roof of a camper van, as well as 2 side fasteners.



The corners stick to the roof of the camper with the glue provided and the panel is screwed onto them.



The panel is raised a few centimetres, allowing good ventilation of it and minimizing losses due to high temperatures.




Option



Digital MT50 Display For EpSolar LS Controllers, BN and A-Series


Backlit digital display allowing you to have accurate information when voltage panels/batteries.
Compatible with EpSolar controllers Pwm LS1024B, LS2024B and LS3024B and Mppt Trace 1215BN, 2215BN and 3215BN as well as Mppt Tracer1210A, Tracer2210A, Tracer3210A, Tracer4210A.



Characteristics



  • Backlit digital display allowing you to have accurate information: panel/battery voltages, regulator status and settings, error messages...
  • Compatible with the full range of regulator Pwm Epsolar LS and the range Mppt Epsolar Tracer BN .
  • Display in SOC form (state on charge)
  • Display voltages and intensities at all limits of the regulator.
  • Selects the type of battery and indicates its state of charge.
  • 2m cable provided to connect it to the regulator.
  • Choosing the different modes of control of the 12/24V output: Manuel ON/OFF, Light ON / OFF,  ON Light - Timer,  Schedule alone
  • Possible change to all load voltages
  • Real-time monitoring of the entire installation
  • Weight: 190 grams
  • Dimensions: 114mm x 114mm

Specifications

Battery storageWithout storage
Type of needCamping-car / Boat
Wind TurbinWithout
Number of panels1 panel
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
