Camper van off-grid solar kit 260Wp - 12V - configurable

Wattuneed

316,42 € tax incl.

Add to cart

Les conseils de Max

Select a kit ready to use :

Autonomous solar Kit for motor homes or any vehicle, where it is just necessary to recharge batteries.

-1 X solar panel: 260Wc
-cable 2X4mm² solar 5 m
-cable 2X4mm² 2 m battery
-MC4 crimped on the wire
-Charge controller draw A 20 has
-Fasteners: Glue mounting, 4 corners of fixations and 2 side fasteners





More details

Équipements
Descriptions équipements
Customize

Choice of panels

157.12
Sélectionné

Solar Panel JNL solar monocrystalline 300 WC full black

262
Sélectionné

Panasonic HIT 245Wc monocrystalline solar panel

124.16
Sélectionné

Solar Panel JNL solar polycrystalline 275 WC

144.12
Sélectionné

TrinaSolar polyi 280Wp solar panel

157.12
Sélectionné

Solar Panel Hanover solar 300Wc monocrystalline full black

173.37
Sélectionné

Solar Panel Solar LONGi 300Wc single-crystal one full black

219.61
Sélectionné

Rec N 320Wc monocrystalline solar panel

231.16
Sélectionné

Solar panel Q.Cells DUO 345Wc G6 mono

See product
Solar Panel JNL solar monocrystalline 300 WC full black

config

157,12 €

QTT

-
See product
Panasonic HIT 245Wc monocrystalline solar panel

config

262,00 €

QTT

-
See product
Solar Panel JNL solar polycrystalline 275 WC

config

124,16 €

QTT

-
See product
TrinaSolar polyi 280Wp solar panel

config

144,12 €

QTT

-
See product
Solar Panel Hanover solar 300Wc monocrystalline full black

config

157,12 €

QTT

-
See product
Solar Panel Solar LONGi 300Wc single-crystal one full black

config

173,37 €

QTT

-
See product
Rec N 320Wc monocrystalline solar panel

config

219,61 €

QTT

-
See product
Solar panel Q.Cells DUO 345Wc G6 mono

config

231,16 €

QTT

-

Choice of the charge controller

76.6
Sélectionné

Solar Controller MPPT 20A SRNE

115
Sélectionné

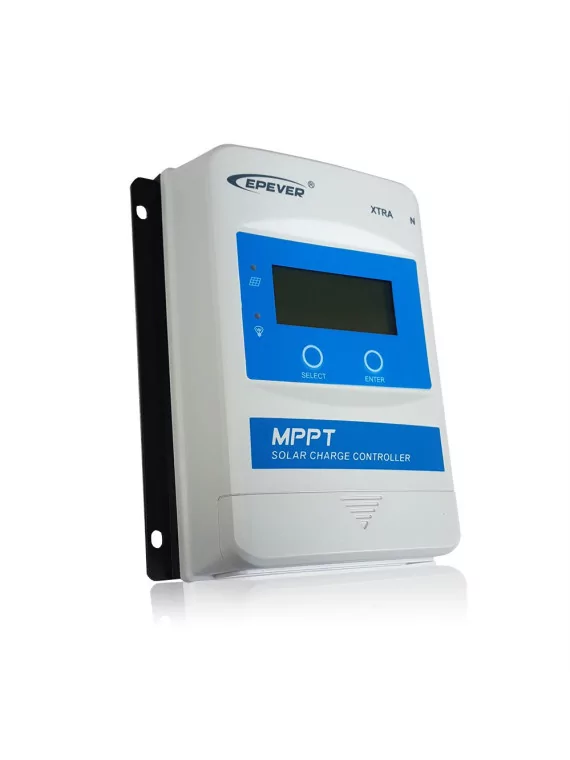

Epsolar MPPT XTRA-N Serie 20A

131.5
Sélectionné

Epever MPPT XTRA-N Serie 30A

110.9
Sélectionné

Solar Controller MPPT 30A SRNE

28.2
Sélectionné

Solar Controller SRNE PWM HP 24V 20A

34.3
Sélectionné

Solar Controller SRNE PWM HP 24V 30A

See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

-
See product
Epsolar MPPT XTRA-N Serie 20A

config

115,00 €

QTT

-
See product
Epever MPPT XTRA-N Serie 30A

config

131,50 €

QTT

-
See product
Solar Controller MPPT 30A SRNE

config

110,90 €

QTT

-
See product
Solar Controller SRNE PWM HP 24V 20A

config

28,20 €

QTT

-
See product
Solar Controller SRNE PWM HP 24V 30A

config

34,30 €

QTT

-

Choice of cable

See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

7,30 €

QTT

-
See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

-

Choice of mounting system

See product
Mounting glue Sikaflex Pro 300ml

config

9,90 €

QTT

-
See product
Square brackets for mouting panel on motorhome

config

46,00 €

QTT

-
See product
2 inputs box for mobilhome

config

9,60 €

QTT

-

More info

Recharge the batteries of your camper, caravan, boat...

complete 255Wc Kit for motorhome with solar panel {linkpopup id = 'polycrystalline'}.
The wiring Panel and battery is 4 mm² double insulation to ensure a load without any loss.
Charging the battery in 3 steps ensuring a clean load of it.

COMPOSITION

panneau polycristallin BenQ 260Wc

1 x solar panel BenQ {linkpopup id = 'polycrystalline'} 260Wc

The BenQ 260Wc photovoltaic module is a solar panel composed of 60 Silicon {linkpopup id = 'polycrystalline'} high-performance cells.

Rated power: 260Wc

  • Gray anodized aluminum frame
  • high transparency and anti-glare (soaked) 3.2 mm solar glass
  • IP67 junction box: high level of water resistance to water and dust
  • Resistance to corrosion and moisture (in accordance with IEC 61701 Module)
  • The module weight: 18.5 kg



Cells60 cells polycrystalline silicon 156 x 156 mm
Power Max260W
Voltage in open circuit (Voc)37, 70V
Current (Isc) short-circuits8.83 A
Voltage power max (Vm)31, 20V
Current power max (Im)8.34 A
Performance of the module15.8%
Thickness of the framework40 mm
FrameworkAnodized aluminum - Black
Safety glasshigh transparency - 3.2 mm tempered glass
Dimensions1639 X 983 X 40mm
Weight18.5 kg
ManufacturingEurope











regulateur de charge pwm 20A

{linkpopup id = 'regulateurDeCharge'} LS2024B - 20A



  • Capacity: 20 amps.
  • Tension: 12v or 24V
  • This regulator can accommodate up to 240 watts of solar panels (in a 24V system)
  • Temperature compensation
  • 2-year warranty.
  • Technology: {linkpopup id = 'pwm'}.
Get the most from your regulator using the display remote optional
-Graphical display of the State of charge of the battery
-Display Panel, load current, battery voltage, etc.
-All the tensions of charges can be so changed from 9 to 17V (X 2 for 24V), disconnection voltage also
-Programming of output consumer according to a day/night mode or a time mode







Optionally available:

{Linkpopup id = 'pwm'} regulator 20A in base - €0
{Linkpopup id = 'mppt'} regulator 20A + €124.6
PWM 20A

MPPT 20A











Wiring and connectors






câble solaire

The kit is equipped with special cable solar double 4 mm² insulation. This important section guaranteed that it does not heat even in case of big production, we're so sure you have an optimum charge battery by minimizing losses up.

5 m cable with mc4 crimped on the wire connectors are designed to connect the Panel to the charge controller. {Linkpopup id = 'mc4'} connectors guarantee a waterproof connection between the Panel and the cable, and also allow to remove it very easily

2 m cable with lug set battery battery are also planned.

connecteur MC4 double mâle et femelle

Connector {linkpopup id = 'mc4'} double male + female

To connect your panels in parallel




Fixings for vehicle



The kit comes complete, editing is limited to the fixation of the Panel to the vehicle as well as the wiring of the charge controller

Colle de montage

coins de fixations panneaux solaires camping car

4 corners of fasteners to install a solar panel on the roof of a camping car, and 2 side fasteners.



Corners stick on the roof of the RV with the supplied glue and the Panel is screwed on them.



The Panel is raised a few centimetres, which allows good ventilation of it and to minimize losses due to high temperatures.

















Option

More functions with the MT50 display

affichage epsolar



Choice of different modes of the 12/24V output control:

Manual ON / OFF.
Light ON / OFF.
We light + Timer.
Single schedule

Selection of the type and capacity of the battery
All the tension of charge may change

Real-time installation monitoring










Diagram

Les conseils de Max

Select a kit ready to use :

Specifications

Wind TurbinWithout
Annual comsuption300
Number of panels1 panel
Type of needCamping-car / Boat
Output Kit voltage12V
Battery storageWithout storage
Voltage12V
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
