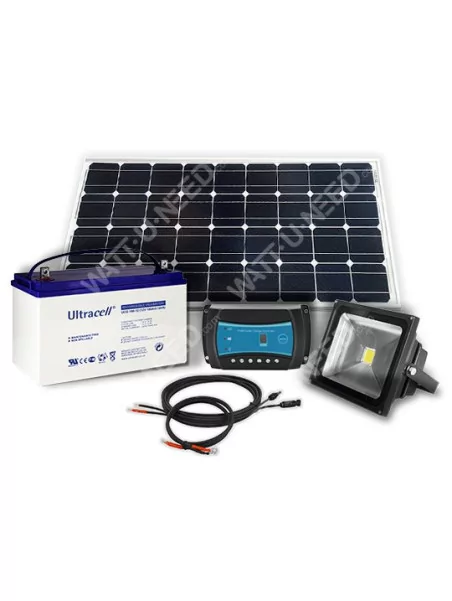

100Wc standalone lighting kit - 12V with 30W LED spot

Wattuneed

429,60 € tax incl.

Add to cart

LeD solar kit for isolated site
Prewired, mounted in 10 minutes

The 100W polycrystalline solar panel will allow you to power the spot at least between 6am and 8am per day



Check the availability of the 12V 100Ah Gel Battery

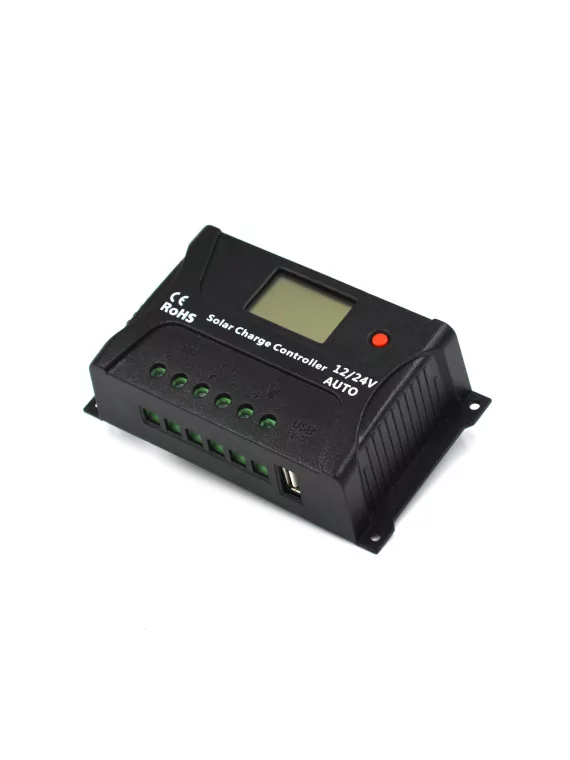

Check availability Of regulator PWM SRNE 12/24V 10A

  • panel
  • batteries

More details

Équipements
Descriptions équipements
Customize

Choice of panel

93.91
Sélectionné

Monocrystalline solar panel 12V 100pw

107.73
Sélectionné

MX FLEX Protect Solar Panel Back Contact 30Wp

130.72
Sélectionné

MX FLEX Protect Solar Panel Back Contact 50Wp

292.42
Sélectionné

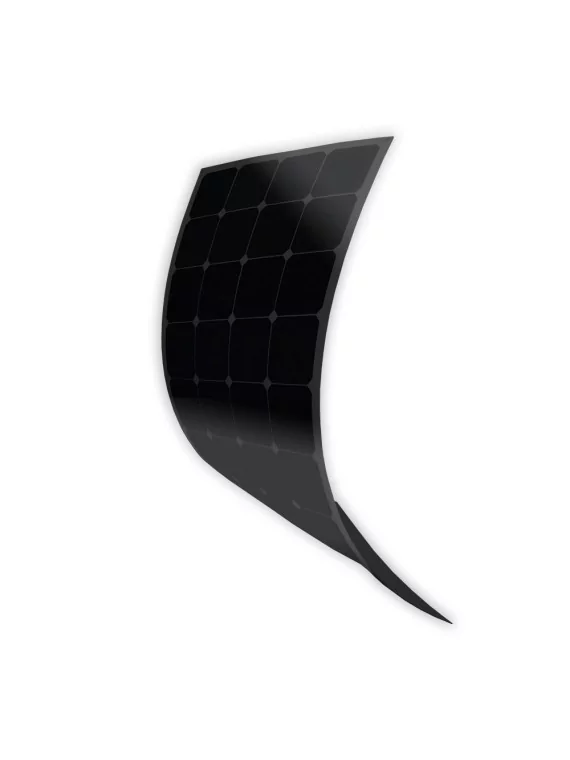

Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

6969.6
Sélectionné

40x MX FLEX Protect Solar Panel 100Wp

246.07
Sélectionné

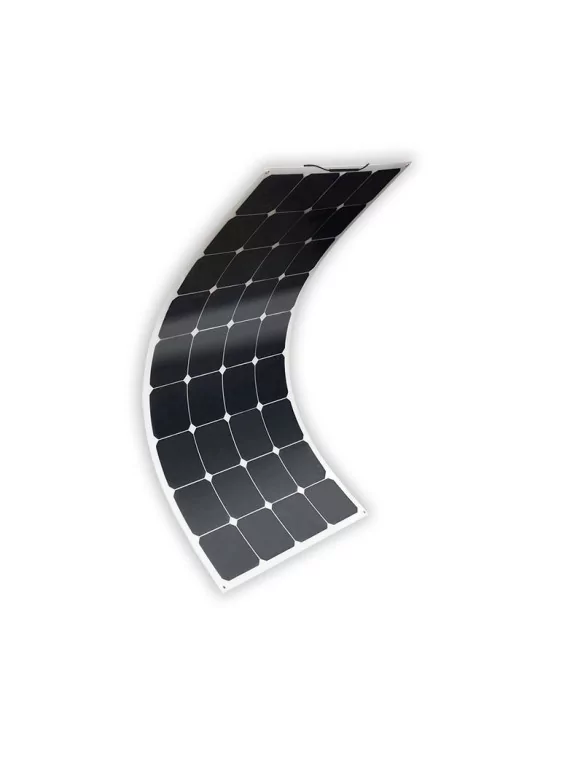

Solar Panel 12V FLEX MX PROTECT 100pw

55.99
Sélectionné

Solar panel 50Wp

262
Sélectionné

Panasonic HIT 245Wc monocrystalline solar panel

111.13
Sélectionné

Solar Panel JNL solar polycrystalline 280 WC

144.5
Sélectionné

Solar Panel Hanover solar 300Wc monocrystalline full black

196.49
Sélectionné

BenQ 320Wc monocrystalline full black solar panel

144.5
Sélectionné

Solar Panel Hanover solar 300Wc monocrystalline full black

200
Sélectionné

Solar panel Q.Cells DUO 360Wc G8 mono

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 30Wp

config

107,73 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

config

292,42 €

QTT

See product
40x MX FLEX Protect Solar Panel 100Wp

config

6 969,60 €

QTT

See product
Solar Panel 12V FLEX MX PROTECT 100pw

config

246,07 €

QTT

See product
Solar panel 50Wp
Out of stock Replenishment : 23/08/2020

config

55,99 €

QTT

See product
Panasonic HIT 245Wc monocrystalline solar panel

config

262,00 €

QTT

See product
Solar Panel JNL solar polycrystalline 280 WC

config

111,13 €

QTT

See product
Solar Panel Hanover solar 300Wc monocrystalline full black

config

144,50 €

QTT

See product
BenQ 320Wc monocrystalline full black solar panel

config

196,49 €

QTT

See product
Solar Panel Hanover solar 300Wc monocrystalline full black

config

144,50 €

QTT

See product
Solar panel Q.Cells DUO 360Wc G8 mono

config

200,00 €

QTT

The choice of the regulator

54.5
Sélectionné

Solar Controller MPPT 10A SRNE

26
Sélectionné

Epever LS1012EU PWM 12V / 24V with USB output

54.4
Sélectionné

Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A

77
Sélectionné

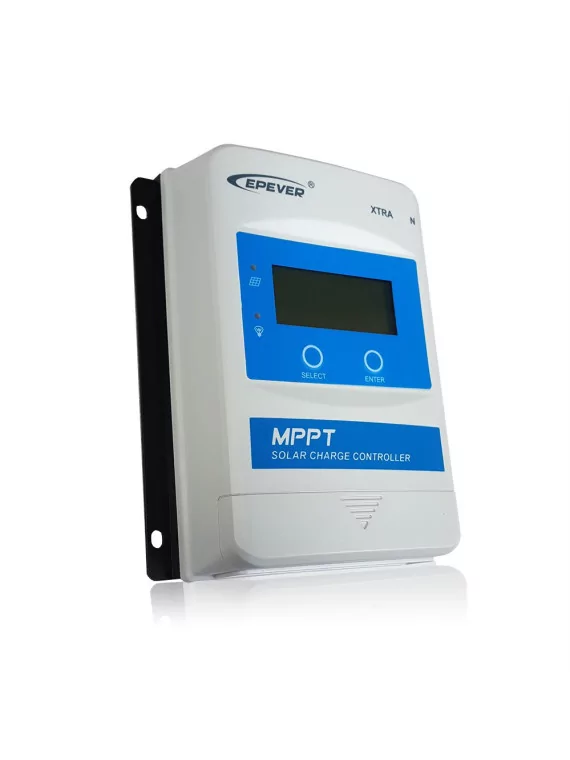

Epever MPPT XTRA N Serie 10A

42
Sélectionné

Epsolar Duo Battery PWM 12V / 24V 10A

See product
Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Epever LS1012EU PWM 12V / 24V with USB output

config

26,00 €

QTT

See product
Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A
Out of stock

config

54,40 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

See product
Epsolar Duo Battery PWM 12V / 24V 10A

config

42,00 €

QTT

Choice of the converter

116.16
Sélectionné

Victron Phoenix 12V / 24V / 48V - 250VA

150.04
Sélectionné

Victron Phoenix 12V / 24V / 48V - 375VA

See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

116,16 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

150,04 €

QTT

Choice of mounting system

55
Sélectionné

Mounting system for tile roof

49.1
Sélectionné

Mounting system for slates roof

127
Sélectionné

Free-land mounting kit for solar panel

37.28
Sélectionné

Mounting system for sheet metal

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product
Mounting system for tile roof

config

55,00 €

QTT

See product
Mounting system for slates roof

config

49,10 €

QTT

See product
Free-land mounting kit for solar panel

config

127,00 €

QTT

See product
Mounting system for sheet metal

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

Battery choice

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
AGM battery Ultracell 12V 18Ah

config

36,30 €

QTT

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
Ultracell 12V 55Ah GEL battery
Out of stock

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

See product
Ultracel GEL battery 12V 200Ah

config

397,00 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

See product
Lithium battery 12V 20Ah

config

225,90 €

QTT

See product
12V40Ah Lithium Battery

config

429,60 €

QTT

See product
12V60Ah Lithium Battery

config

647,40 €

QTT

See product
12V90Ah Lithium Battery

config

970,00 €

QTT

Choice of cable

See product
2X4mm² Solar cable with MC4 (5metre)

config

13,80 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

7,30 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

27,49 €

QTT

See product
Double MC4 connector male & female

config

16,00 €

QTT

See product
MC4 connector male + female to screw

config

5,00 €

QTT

See product
Câble caoutchouc H07RN-F 3G4 -1m

config

3,30 €

QTT

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

Accessories battery

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

See product
Double 16mm² battery cable 2m

config

17,90 €

QTT

See product
Double 25mm² battery cable 2m

config

30,30 €

QTT

See product
Double 50mm² battery cable 2m

config

70,60 €

QTT

See product
16mm² battery cable with pods

config

5,80 €

QTT

See product
25mm² battery cable with pods

config

9,00 €

QTT

See product
50mm² battery cable with pods

config

12,00 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie - 32A

config

45,60 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie -50A

config

61,23 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie -100A

config

67,28 €

QTT

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
ZJBENY double DC surge-arrestor box

config

231,00 €

QTT

Choice of lighting

See product
LED spot 30W - 12V

config

58,50 €

QTT

See product
LED spot 10W - 12V

config

22,20 €

QTT

See product
5m cable with LED bulb 4W

config

16,90 €

QTT

More info

Practical and useful for 100% self-contained lighting

The spot can be used 8 hours/night almost all year round (6am from October to February).

In summer, you have an extra 240Wh during the day to charge a PC or laptops (by connecting a small converter to the installation).




2x10Wc 12V monocrystalline solar panels



  • Normal NOCT use temperature: 45oC
  • Wind resistance: ?130 km/h
  • Maximum hailstone diameter: 25 mm
  • Hail impact speed: 80 km/h
  • Light and reinforced anodized aluminum frame
  • High glass transmissivity
  • Box "plug and play" with 2 diodes
  • Glass secures 4mm thick



Characteristics



Cells

Monocrystalline

Maximum Power (Pmax) (W)

100 W

Maximum peak current (Imp) (A)

5.83 A

Maximum peak tension (Vmpp) (V)

17.18 V

Open circuit tension (Voc) (V)

22.08 V

Short circuit current (Isc) (A)

6.03 A

Operating temperature (C)

-40 to 85 lbs

Maximum protection by reverse over-intensity (A)

15

Output power tolerance (%)

0 /-3

Maximum system voltage (Vdc)

1000








Solar Controller MPPT 10A SRNE



Adopting double crest or multi crest tracing technique, used for the condition when a part of solar panel is under shadow or parts of solar panel is damage.

Built-in maximum power point tracking algorithm which could promote the energy utilization efficiency of pv system. The charging efficiency is 15%~20% higher than PWM mode.

It can find out the best working point of I-V curve within 1 minute. the MPPT efficiency could reach to 99.9%.

Adopting advanced digital power supply techniques which makes the energy conversion efficiency reach up to 97%.




ModelMT2410
System voltage12V
Max input power of solar panel130W
Transfer efficiency≤ 96%
Rate charge/discharge current10A
Lo load loss< 15mA
Max input voltage of solar panel< 150V
MPPT tracing efficiency> 99%
Over voltage protection16.5V
Limited charge voltage15.5V
Equalizing charge voltage15.2V
Equalizing charge intervam30 days
Boosting charge voltage14.4V
Floating charge voltage13.8V
Over-discharge recover voltage12.5V
Over discharge voltage11.0V
Boosting charge time2 hours
Equalizing charge time1 hour
Over temperature protectionYes
Light-operated voltage (on)5V
Light-operated voltage (off)6V
Light operated delay time5 min
Working temperature-35°C ~ +65°C
Weight430g
Altitude≤ 3000m
Dimension143*71*37.4 (mm)
Installtion dimension139*48 (mm)
Overload protectionLoad current≥1.25 times rated current, cut off the load within 10 seconds;  Load current≥1.5 times rated current, cut off the load within 5 seconds
Protections1.Reverse connection. 2.Inner over temperature. 3.The voltage of PV input terminal is over value. 4.Over load  5.Reverse charging protection at night. 6. TVS lightning protection 7. Waterproof: IP 64

12V 100Ah GEL Battery



Freeze batteries are waterproof batteries: no maintenance, no addition of distilled water. Enhanced safety compared to open lead batteries.

An GEL battery can withstand 50% discharge and return to its nominal capacity if the maintenance time discharged is short. This series has a longer discharge time compared to other batteries. Its special plate design increases battery life and especially in warmer temperatures. A separator within the battery improves its performance. It also has a longer shelf life.

12V 100Ah GEL Solar Battery.
Cyclage: 1200 cycles at 50% discharge
Dimensions (mm): 327 x 173 x 212
Weight (Kg): 31


câble solaire

5m solar cable 2X4mm2

To connect the panel to the charge regulator
We serve the connections directly in our workshop



 2m 2X4mm2 cable with battery pod

To connect the charging regulator to the battery


30W LED Spots

spot led 30W


-Our black aluminum exterior LED projectors allow for powerful and economical wide-angle lighting.

-The waterproofing of the aluminum case and the thick protective glass allows it to be mounted without any special protection.

-They are also ideal indoors for lighting garages and commercial premises, but also in indirect lighting for high ceilings or skylights.

-Equivalent to 200W halogen, our latest generation LED projectors are perfect for powerfully illuminating your trees and gardens.

-Food: 12v DC (Requires a special 12v DC LED power supply).





  • Power: 30W
  • Color: warm white
  • Light flow: 2400lm
  • Color temperature: 2700-3500K
  • Dimensions: 225x183x125mm
  • Weight: 2.8 kg
  • IP Index: 65
  • Operating range: -20 - 50
  • Number of LEDs: Multichips COB
  • LED Type: High Power 30w COB

Optional



cable souple

H07RN-F 2x1.75mm2 soft cable



Driver diameter: 1.75 mm2.

Driver number: 2.

Cable type: flexible.

Double envelope.

Particularly resistant.

High performance.

Black Elastomer.

Specifications

Battery storageWith storage
Type de kit solairekit éclairage autonome
Type of needSelf-Use Lighting Kits
Wind TurbinWithout
Number of panels1 panel
Output Kit voltage12V
Type de LEDAmpoules
Type de LEDKit éclairage autonome
Voltage12V
Lighting power30 W
Type of lightingLED Spot
TechnologyGel
Battery capacity55Ah
Panel typeRigids
CellsPolycrystalline
Max. Power - Wp100 Wc
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
