Kit 1 Panel self-consumption - reinjection without storage

Wattuneed

473,87 € tax incl.

Add to cart

Kit home consumption without 'ready to use' storage Panel

This complete kit includes basic :

  • 1 Longi 300 Wc Panel
  • 1 microinverter Hoymiles 500W
  • 1 AC connector for microinverter Hoymiles
  • Flexible solar cable

Optional:

  • Mounting system.


All our kits are editable, thanks to this system no error is possible and we check each kit before sending. Try our configurator right now!

More details

Équipements
Descriptions équipements
Customize

Choice panels

216.71
Sélectionné

Solar Panel JNL Solar Monocrystalline 375 Wc Full Black

217.8
Sélectionné

Solar panel Q.Cells DUO-G9 335Wc Full Black

253.56
Sélectionné

Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

239.47
Sélectionné

TrinaSolar Vertex S 390Wc Full Black Solar Panel

245.6
Sélectionné

Monocrystalline solar panel TrinaSolar Vertex S 400Wc

260.05
Sélectionné

Solar panel Hyundai 400 Wc Ultra Black

See product
Solar Panel JNL Solar Monocrystalline 375 Wc Full Black

config

216,71 €

QTT

See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

217,80 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

253,56 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

239,47 €

QTT

See product
Monocrystalline solar panel TrinaSolar Vertex S 400Wc

config

245,60 €

QTT

See product
Solar panel Hyundai 400 Wc Ultra Black

config

260,05 €

QTT

Inverter selection

185.5
Sélectionné

Hoymiles 400W inverter microphone

See product
Hoymiles 400W inverter microphone

config

185,50 €

QTT

Choice of mounting system

55
Sélectionné

Tile roof attachment kit

49.1
Sélectionné

Slate roof attachment kit

127
Sélectionné

Fixing kit on ground structure

37.28
Sélectionné

Tin roof attachment kit

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

See product
Tin roof attachment kit

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

Wiring and connectivity

See product
2X4mm2 solar cable with Type MC4 (sold by the meter - 10m)

config

24,79 €

QTT

See product
Earth cable 1x6 mm2 20m

config

29,00 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
2x4mm2 solar cable extension with 2x Type MC4 (10 meters)

config

27,49 €

QTT

See product
XVB 3G2.5 mm - 1m electric cable

config

1,80 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

1,83 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,32 €

QTT

See product
XVB 3G4 mm - 1m electric cable

config

3,55 €

QTT

See product
XVB 5G4 mm - 1m electric cable

config

4,80 €

QTT

See product
XVB 3G6 mm - 1m electric cable

config

4,90 €

QTT

See product
XVB 3G10 mm - 1m electric cable

config

8,50 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

Choice of wiring and connectors

8.07
Sélectionné

AC connector for Hoymiles micro-inverter

1.2
Sélectionné

H05RR-F 3G0,75mm² - 1m supple cable

See product
AC connector for Hoymiles micro-inverter

config

8,07 €

QTT

See product
H05RR-F 3G0,75mm² - 1m supple cable

config

1,20 €

QTT

Protections and accessories AC

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider 16A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider Breaker tetra 50A

config

183,68 €

QTT

See product
Schneider 20A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 25A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 40A tetra circuit breaker

config

53,40 €

QTT

See product
Schneider mono 20A circuit breaker

config

8,60 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Modular change-over switch 4x 40A and 63A

config

141,00 €

QTT

See product
Differential switch type A 4P 40A 300ma

config

82,00 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

69,50 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

119,80 €

QTT

See product
Differential switch type A 4P 40A 30ma

config

68,50 €

QTT

See product
Differential switch type A 4P 63A 30ma

config

109,30 €

QTT

See product
Differential switch type A 2P 63A 30ma

config

85,39 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 25A 230V Lightning Box

config

125,25 €

QTT

More info

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the selected products directly below the price.



The composition of base kit contains 1 solar panel JNL Solar 320Wc, a Monophase microinverter in phase (editable for Heckert, Q-Cells, Systovi or TrinaSolar brand panels), the connector to connect the inverter to your electric Panel, the mounting the panels system is available as an option. (The Assembly and wiring and protection system can be changed to match your needs).



Solar panels


In its basic version, this photovoltaic system will bring you an average 1.2kW per day. The productions will depend on seasons (summer and winter) geographical position and tilt of the panels.

We invite you to visit our Solar Simulator in order to determine precisely what will be your solar production.

20 year warranty on 80% of the nominal power.


Panneau solaire JNL SOLAR 300Wc Monocristallin Full Black



Solar Panel JNL Solar monocrystalline 320 Wc full black

JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of R&D rings and the manufacture of solar modules, solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technique and craftsmanship.









Characteristics



Peak power (Pmax)320
Module efficiency19,18%
Voltage power Vmp (V)33.5
Current power imp (a)9.55
Open circuit voltage Voc (V)39.9
Short circuit current Isc (A)10.08
Power tolerance- 0, +5W
Maximum System Voltage (V) Max Series Fuse Rating
DC 1000V / 1500V - 15A
Dimensions
1665 x 1002 x 35
Weight (kg)19.0
Type of solar cells
Monocrystalline 158.75mm x 158.75mm
Junction boxIP67
Mechanical loading5400Pa
Frame
Anodized aluminum alloy




Micro inverter 500W Hoymiles



Micro inverter 500W Hoymiles


The Hoymiles microinverter system uses the most advanced technologies in the world. All internal components are from the largest microelectronic manufacturers globally known, which brings reliability and unmatched longevity.

  • Improves the production of energy up to 30%
  • Minimizes the impact of shading, the dust and debris with double trackers MPPT integrated
  • Monitoring and analysis at all times







Features



 Power 500 W
 Entry
 Recommended power2 x 250W (between 200W and 310W)
 DC max input current10.5 HAS
 DC operating range16V - 60V
 Output
 Voltage and output frequency 230 VAC
 Rated power 510W
 Power factor > 0.99 (VA = W)
 DC/AC performance 96.5%
 Protection of decoupling  In-house in accordance with VDE 0126-1-1
 General characteristics
 Dimensions (Lxdxh in mm)  250 x 180 x 28
 Weight (Kgs)  2.73 kg
 IP rating IP 65
 Operating temperature  -40 ° C to + 65 ° C
 CEM EN6100-6-3, EN61000-6-1, EN61000-3-3
 Marking THIS, VDE0126-1-1, EN60146-1, EN50178
 Warranty     2 years manufacturer






Cables and connectors


All the cables and connections are pre-wired in our workshops. Our kits are very easily mountable by 'beginner' electricity. For those who would have some reservations about the side technical, our technical team assists you and helps you daily from 8: 00 to 17: 00.

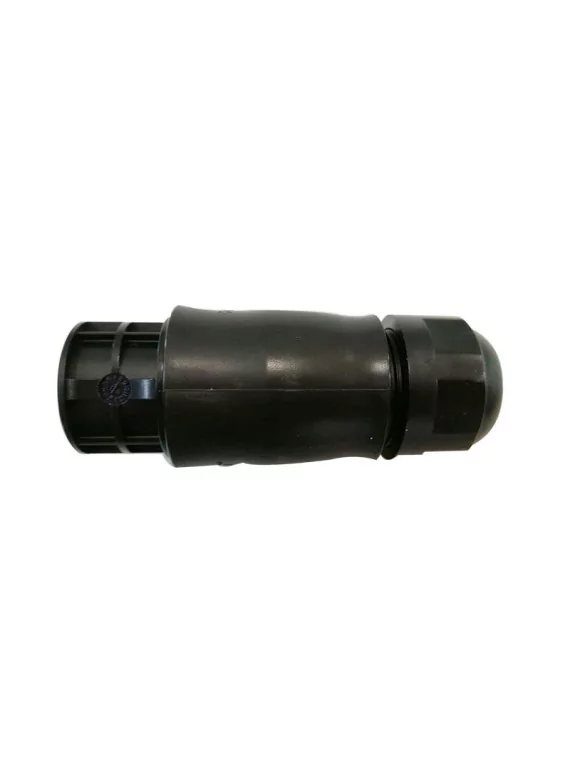

AC connector


Plug the AC connector to the first micro inverter in the inverter following microphone connector, and so forth, to form a continuous AC branch circuit.

Install the cap of current alternative on the AC connector opened the last micro-inverter in the AC branch circuit.

Connect the connector of the cable end AC micro adjacent inverter connector.




Editing



The installation of this kit is simple. Our instructions are clear and allow easy mounting without special knowledge. We answer your questions before, during and after the installation of your system.




Warranty



All products have an individual guarantee.
Panels guarantee 20 years to 80% the nominal power.



Specifications

Type of needSelf-consumption
Wind TurbinWith
Number of panels1 panel
Output Kit voltage230V
Battery storageWith storage
Voltage230V
Panel typeRigids
BatteryKit with battery
Inverter power3000VA
Grid reinjectionoff-grid
