Solar kit 50Wc and 100Wc - 12V with fastening

Wattuneed

226,39 € tax incl.

Options

Add to cart

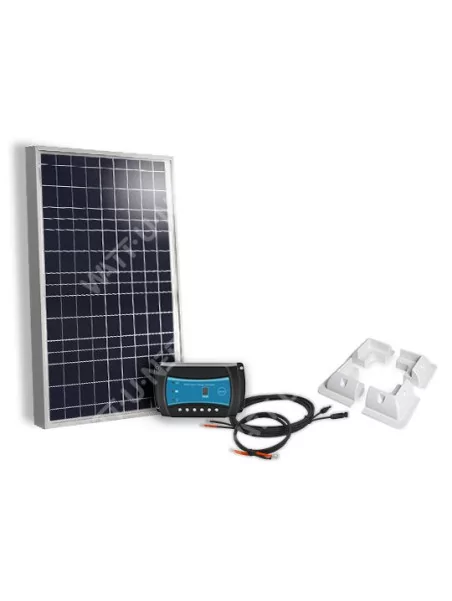

50Wc self-contained solar kit complete, ideal for motorhomes!

- Solar panel: 50Wc polycrystalline,
- 10A charge controller with USB port,
- 4 attachment corners and overpass
- solar cable: 2X4mm2 - 3m,
- 2X4mm2 battery cable - 2m,
- MC4 set on the cable,

For the 100Wc kit: choose "2 50Wc panels - 8 corners fixing" in options!





More details

Équipements
Descriptions équipements
Customize

Choix panneaux

See product
Solar panel 50Wp

config

55,99 €

QTT

See product
Solar panel 12V 100Wc monocrystalline black serie
Out of stock

config

124,61 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
Solar Panel 12V FLEX MX PROTECT 100pw

config

246,07 €

QTT

See product
Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

config

292,42 €

QTT

Choix du régulateur

See product
PWM Regulator SRNE 12 / 24V 10A

config

14,10 €

QTT

See product
Solar Controller SRNE PWM HP 24V 10A

config

16,13 €

QTT

See product
EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

config

24,60 €

QTT

See product
Epever LS1012EU PWM 12V / 24V with USB output

config

26,00 €

QTT

See product
Solar controller Victron BlueSolar PWM 12/24V 5A-10A-20A-30A

config

48,45 €

QTT

See product
Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

Câblage et connectique

See product
2X4mm² Solar cable with MC4 (by the metre)

config

90,80 €

QTT

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

See product
Double MC4 connector male & female

config

16,00 €

QTT

CHOIX DU SYSTÈME DE MONTAGE

See product
Square brackets for mouting panel on motorhome

config

46,00 €

QTT

See product
2 inputs box for mobilhome

config

9,60 €

QTT

See product
Mounting glue Sikaflex Pro 300ml

config

9,90 €

QTT

More info

Complete 50Wc kit for motorhomes: the perfect solution

description



50Wc kit with solar panel 'linkpopup id'polycristallin', ideal for a vehicle with a moderate energy need, mainly composed of small 12V consumers.

The panel and battery wiring is in 4mm2 dual insulation to ensure a charge without any loss.

Thanks to the Epsolar controller, charging the battery in 3 steps ensuring an extremely clean charge of it, in addition the regulator is equipped with a USB port (practical for charging mobile phone for example).


composition



50Wc solar panel



Small compact panel polycristallin, composed of first-class cells, guaranteeing excellent production.

Panel size: 670 x 545 x 35 mm.
Its small size makes it discreet and easily adaptable to any type of pose: small roof, flooring, limited space, ...

- Maximum Power (Pmax): 50W
- Maximum peak current (Imp): 2.6A
- Open circuit tension (Voc): 21.6V
- Weight: 4.5 kg



Exceptional manufacturing quality with high-end materials.
The frame is made of weather-resistant aluminum. It provides the panel with particularly strong mechanical stability to ensure ease of assembly and transport.



connectiques du panneau 50Wc : simple et rapide



The connection is simple and fast (kit delivered with cables and connectors mc4)








Regulator PWM 10A - SRNE



Automatic identification of the voltage of the 12V / 24V system.

Digital LED display and single-touch operations, allowing for simple and convenient operation.

Adopts the ternary form charging algorithm, charges the storage battery in equalization charge mode once a week. It can prevent the unbalanced and vulcanization of the battery efficiently, thus prolonging the battery life.

Has the electrical data protection function. The settings can be stored during a power system failure. Even of this type of case, there is no need to reset the solar regulator. Simple and practical!





Protections

  • against overload,
  • against landfills
  • against over-intensity
  • against short circuits
  • against polarity reversal

TVS protection against lightning (transient voltage suppression diode).



Characteristics


ModelLM 2410
Current system10A
Loss without charge10mA/12V;10mA/24V
Solar energy input tension55V
Solar energy input tension17.0V; 2/24V
Equal load voltage14.6V; 2/24V (25oC), duration:1h
Increasing load voltage14.4V; 2/24V (25oC), duration:2h
Float load voltage13.8V; 2/24V (25oC)
Tension return during charging13.2V; 2/24V (25oC)
Return tension for excessive discharge12.6V; 2/24V
Return tension for excessive discharge12.0V; 2/24V
Excessive discharge tension11.1V; 2/24V
Temperature compensation-4.0mv/C/2V;
Light control5V open light control near 6V light control
Light control judgment time10min
ProtectionsProtection against overloads, overloads, short circuits and overloads
Reverse-connection protection for solar and storage batteries.
Working temperature-35C to '65C;
Level of protectionIP30
Weight106g
Size124.7-69.4-34.0(mm) (L-W-H)


wiring



The kit is equipped with all the cables necessary for its operation:

- 5m solar cable double insulation of 4mm2 with mc4 connectors set simple for the 50Wc or double kit for the 100Wc kit.
Expected to connect the panel to the charge regulator. The mc4 connectors guarantee a perfectly watertight connection between the panel and the cable, and also allow it to be removed very easily.

- 2m battery cable with set drums pods are also planned.


coins de fixations panneaux solaires camping car

Fasteners



The kit is delivered complete, the assembly is limited to the attachment of the panel on the vehicle as well as the cable passage between the panel and the regulator

4 corners of fasteners to install a solar panel on the roof of a camper van.
The corners stick to the roof of the camper and the panel is screwed onto them.

The panels are raised by a few centimetres, allowing a good ventilation of these and minimizing losses due to high temperatures.



Passe-toit 2 entrées

Specifications

Number of panels1 panel
Output Kit voltage12V
Battery storageWithout storage
Type of needCamping-car / Boat
Wind TurbinWithout
Voltage12V
Batterykit without battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
