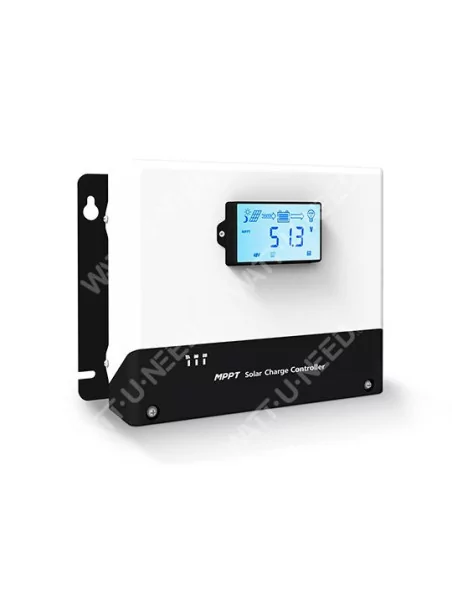

Solar Regulator SRNE MPPT 12/24/36/48V 85A

SRNE

568,10 € tax incl.

The controller adopts PowerCatcher, the industry's leading technology for tracking maximum power in order to obtain energy tracking for solar panels, so that it can quickly and accurately trace the power point maximum solar battery, acquire the maximum energy from the solar panel and significantly improve the rate of energy use of the solar system.

More details

More info



The controller adopts PowerCatcher, the industry's leading technology for tracking maximum power in order to obtain energy tracking for solar panels, so that it can quickly and accurately trace the power point maximum solar battery, acquire the maximum energy from the solar panel and significantly improve the rate of energy use of the solar system.
Widely applied to the offline photovoltaic solar system for the management of solar panels and operating batteries, the controller is the central control component of the offline photovoltaic system.
The controller's interior has an electronic failure detection and protection function to prevent damage to product components caused by installation errors and system failures.
The controller is equipped with an LCD display screen to simultaneously support data interaction, setting and other operations with the APP mobile phone, PC and other devices.


Product characteristics



PowerCatcher technology tracks maximum power by tracing the maximum power point of the solar battery in a complicated environment. Compared to traditional MPPT Tracking technology, it benefits from greater response speed and tracking efficiency.
The efficiency of the MPPT load is greater than that of the traditional PWM load of about 15%-20%.
The effectiveness of MPPT tracking can be as high as 99.9%.
With the adoption of state-of-the-art digital power technology, the circuit's energy conversion efficiency can be as high as 98%.
This product game supports lithium batteries, the charge output has an active voltage stabilization function.
Preset for different types of batteries: lithium, sealed, colloidal, open and self-defined.
Lead-acid batteries support the temperature correction function.
Thanks to the loss of charge compensation, the voltage of the battery terminal can be precisely controlled.
Limiting the charge current, in case of too much battery charge (so that it can work with the limits of the rated charge current).
Has an integrated mechanism to protect against overheating, the charge power decreases linearly with the temperature.
It supports the parallelization function and breaches up to the power limit of a single unit. Therefore, the combination of several units can respond to greater load power.
With the built-in bluetooth 4.0BLE module, it can interact with the APP data with the mobile phone.
Supporting the standard Modbus protocol.
Programmable relay output.

Specifications

Charge power85A
Voltage12V
Voltage36V
Voltage24V
Voltage48V
MPPT/PWMMPPT
Weight5,7 kg
Nombre de MPPT1 MPPT
Width314 mm
Height227 mm
Thickness121 mm
